Technical manual
(User Manual)

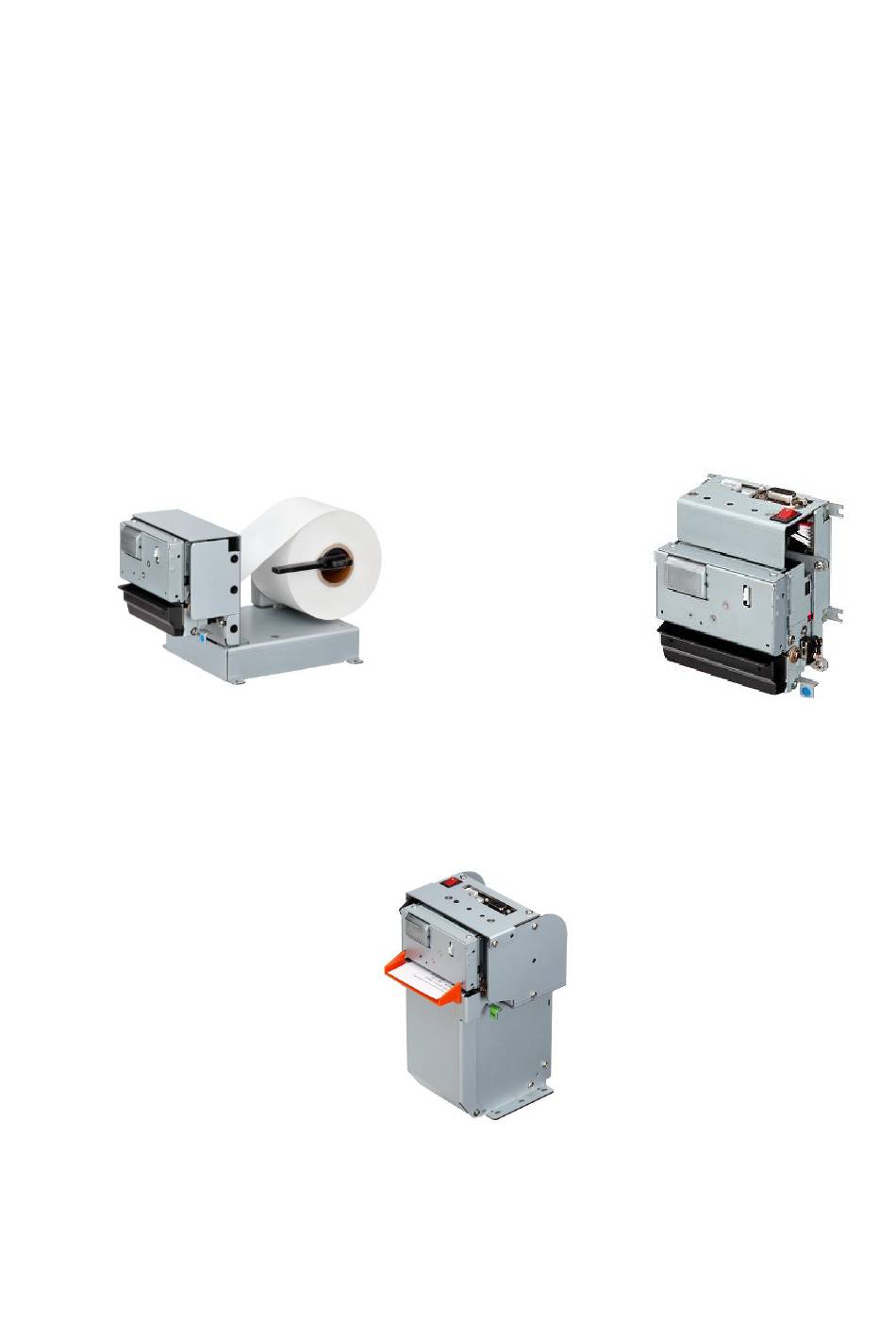

HMK-054
HMB-054
HMV-054
Release 2
HMB-054
HMK-054
Control board +
Mechanism combination
HMV-054
Vertical Type

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hwasung 054 Series

Summary of Contents for Hwasung 054 Series

  • Page 1 Technical manual (User Manual) HMK-054 HMB-054 HMV-054 Release 2 HMB-054 HMK-054 Control board + Mechanism combination HMV-054 Vertical Type...
  • Page 2  Please clear the air / open the disclosed place.  Please set the product without damage enviornment.  Please set the product at the stable place.  Pleaes keep the requires as necessary as general electrics. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...

  • Page 3: Table Of Contents

    3-4) Electrical Specification 3-5) Operation Environment 3-6) Storage environment 3-7) MCBF 3-8) Weight 4. Interface 4-1) RS-232C 4-2) USB 5. Command 6. USB 6-1)DLL interface 6-2)DLL Causion for Using 6-3) OCX Driver 6-4) OCX Notice Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...

  • Page 4: Printer Features & External Dimension

    10. Power LED(Green) 3. Head up lever 4. Neae end sensor 11. Error LED (Red) 12. Dip swtich (Bottom) 5. Paper shaft 6. Power connector 7. Interface connector 10 11 [HMK-054] Power connector (24V) Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...
  • Page 5 [HMB-054] Power connector (24V) Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...

  • Page 6: 1-2) Model Number

    1-2) Model Number □ -054 ※ Model : Kiosk type (KIOSK) : Control board + Mechanism combination : Vertucal Type : Control board Type Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...

  • Page 7: 1-3) Dimension

    1-3) Dimension [HMK-054] Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...
  • Page 8 [HMB-054] 67.5 61.5 Ø6 Ø2.7 Control board [HMC-054] Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...
  • Page 9 [HMV-054] Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...

  • Page 10: Operation

    You can see the paper cut, after it‟s feeding. ② Please make sure if the paper direction is correct. [Paper direction] 3. Please press the feed button to make sure if the paper inserting is correct. (④) ④ Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0...
  • Page 11 2. Please open up the head up lever as image (①). ① 3. Please insert the paper in, until the end of paper is out of the paper guide. (③) ③ 4. Please close up the head up lever. (④) ④ Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.10...

  • Page 12: 2-2) Removing The Paper Jam

    : 8 Bit Sample printing Parity : None Stop Bit : 1 or 2 Please refer to the Dip switch info at 2-8). Peripheral & Setting Information USB Status Auto Cutter :: BuiIt-in Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.11...

  • Page 13: 2-4) Hex Dump

    A B C D E F G H 41 42 43 44 45 46 47 47 49 0 1 2 3 4 5 6 30 31 32 33 34 35 36 37 38 1 B 69 ^ . i Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.12...

  • Page 14: 2-5) Update (Onboard)

    Please repeat these steps again, and check the interface cable, and the connections. 5) You can use the updated printer after update, it will be reset automatically then power off & on. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.13...

  • Page 15: 2-6) Memory Switch

    For setting default value in 1 bite code, select one of ASCII(12x24) or ASCII(8x16,9x16). Reserved Reserved Reserved Reserved SW10 Reserved Unuse Code Page Menu Font Manu Atfer setting, please click this button. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.14...
  • Page 16 [Memory Switch information] ================================ Code Page = PC437(U.S) 2Byte Font = Korean(24x24) 1Byte Font = ASCII(12x24) Mem1:FFh Mem2:FFh,FFh Mem3:FFh,FFh Mem4:00h Mem5:00h Mem6:FFh Mem7:FFh Mem8:FFh Mem9:FFh Mem10:FFh (Sample of verifying memory switch through self-test) Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.15...

  • Page 17: 2-7) Rebooting The Firmware

    (If using the USB port, Save the time to set up) 5) After rebooting, Please remove JP2(Jumper Pins) * If you skip this step, the printer would not reboot even after the firmware recovery because it would delete the data. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.16...
  • Page 18 6) Click the “ Icon “ in the Send file Name then atfer open the firmware file for Target model, Then, Click “Send File Button” * Notice : Do not revise the Parameter value. ① ② 7) Atfer the file is complete to transfer, Click “Yes “ Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.17...
  • Page 19 8) Click “Excute” button, atfer checking for stting up “Boot from Flash(GPNVM1) in Scripts. 9) To re-operate printer, Tune off and on Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.18...

  • Page 20: 2-8) Dip Switch

    SW4 Jam Sensor Jam Sensor valid Jam Sensor invalid 4)SW5,6 : SW5 SW6 Parity None Even 5)SW7 : SW7 Print mode Hex Dump Normal 6)SW8 : SW8 Factory Mode Factory Mode Standard Mode Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.19...

  • Page 21: 2-9) Conntector (Internal)

    Paper sensor output signal HD_UP Cover open signal Motor Operation A Motor Operation B Motor Operation /A Motor Operation /A MARK_A Blackmark sensor power /STROBE3 TPH STROBE3 MARK_C Blackmark sensor output Signal Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.20...
  • Page 22 5) CN5 : RS232C connector (DSUB9, FEMALE) Circuit Remark 6) CN6 : USB connector (Type B) Circuit Remark VBUS VBUS Input Data- Data+ Signal GND Frame GND1 Frame GND2 Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.21...

  • Page 23: General Specification

    1)Temperature : -25∼40℃ 2)Humidity :40∼90%RH 3-7) MCBF 1)Thermal print head : 100Km(100million pulse) 2)Auto cutter : 1 million cuts 3-8) Weight HMK-054 : about 0.89kg, HMB-054 : about 0.54kg, HMV-054 : about 1.20kg Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.22...

  • Page 24: Interface

    : Bulk IN, Bulk OUT  Bulk IN : End point 6,  Bulk OUT : End point 1  Full Speed : Max Packet Size 64 Byte(Bulk OUT),64 Byte(Bulk IN) Signal In/out VBus In/out In/out Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.23...

  • Page 25: Command

    ESC i Paper cutting ESC m Paper cutting ESC t International Code Page ESC S Set Standard ESC L Set the pagemode in direction ESC T Set the printing area in page mode Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.24...
  • Page 26 GS r Checking the status GS a Auto reply of status GS v Raster bit image (Horizontal) DLE ENQ Realtime buffer clear DLE EOT Realtime status check GS I Fimware Version Transmission Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.25...
  • Page 27 The print data will be deleted in print area. [Name] Horizontal tab [Format] ASCII Decimal [Range] [Descript] Moves the print position to the next tab poisition Horizontal tab position are to set in ESC+‟D‟+n.. [Caution] Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.26...
  • Page 28 : the feeding in reverse directoin till black mark is detected [Caution] the feeding range is restricted in 30Cm Once the detection distance is over in 30Cm, it could be jammed Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.27...
  • Page 29 Please do not use the command, if you don‟t use the paper without blackmark. It causes a jam error. SUB+‟1‟ [Name] Choice of rule 1 [Format] ASCII Decimal [Descript] Choose the rule 1 of two rules (rule1 or rule2). Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.28...
  • Page 30 Once you set up the command, the rull will be printing with the character or font. SUB+‟F‟ [Name] Rule OFF [Format] ASCII Decimal [Descript] Once you set up the command, the rull will be preserved. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.29...
  • Page 31 Size of barcode n3=9 Horizontal 3 Horizontal 4 Horizontal 5 Size of barcode Horizontal 6 Version 1 Horizontal 7 Version 3 Horizontal 8 Version 5 Horizontal 9 Version 9 ※PDF417 Vertial size automatic setting. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.30...
  • Page 32 0: Cancel the extension in Vertical 1: Set the extension in Vertical 0: Cancel the extension in Horizontal 1: Set the extension in Horizontal 0: Cancel the underline 1: Set the underline Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.31...
  • Page 33 Decimal 0≤nL+nH×256≤65535, 0≤nL≤255, 0≤nH≤255 [Range] [Initial Value] nL=0, nH=0 [Descript] Move the printing position from left ending space to (nL+nH×256)×0.125mm Move the printing position in left ending once printing position is over Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.32...
  • Page 34 Dots in Data (k) vertical horizontal 8dots Single Density nL+nH×256 nL+nH×256 8dots Double Density (nL+nH×256)×3 24dots Single Density 24dots Double Density (nL+nH×256)×3 •8 dots Mode once Twice Three Three times times Single Double Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.33...
  • Page 35 Set underline in thick 0.125mm Set underline in thick 0.25mm Set underline in thick 0.375mm Set underline in thick 0.5mm Set underline in thick 0.625mm Set underline in thick 0.75mm Set underline in thick 0.875mm Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.34...
  • Page 36 Clear buffer & Initialize all parameter ESC+‟E‟+n [Name] Set the font in thick [Format] ASCII Decimal 0≤n≤255, [Range] [Initial Value] [Descript] n=0, cancel the font in thick n=1, set the font in thick Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.35...
  • Page 37 Printing the data inner buffer, feeding in n x 0.125mm ESC+‟j‟+n [Name] Back Feeding [Format] ASCII Decimal 0≤n≤255 [Range] [Descript] Printing the data inner buffer and back feeding in n x 0.125mm Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.36...
  • Page 38 : In case of Big Font as 56x88, it would be possible to extend font size as much as Double(Width and Length) and other fonts would be possible to extend the font size as octuple Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.37...
  • Page 39 Sweden Italian Spain1 Japanese Norway Denmark2 Spain2 Latin America Korea ESC+‟a‟+n [Name] Align the printing [Format] ASCII Decimal 0≤n≤2 [Range] [Initial Value] [Descript] Align the printing position Printing Position Left Middle Right Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.38...
  • Page 40 Move the standard from the left to the right Function Cancel 180° Set 180° ESC+‟i‟ [Name] Full Cutting [Format] ASCII Decimal [Descript] Cutting the paper completely ESC+‟m‟ [Name] Partial Cutting [Format] ASCII Decimal [Descript] Cutting the paper partially Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.39...
  • Page 41 Set the Standard mode [Format] ASCII Decimal [Descript] Swtiches from page mode to standard mode ESC+‟L‟ [Name] Select page mode [Format] ASCII Decimal 0≤n≤255 [Range] [Initial Value] [Descript] Switches from standard mode to page mode Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.40...
  • Page 42 Select print direction in page mode [Format] ASCII Decimal 0≤n≤3 [Range] [Initial Value] [Descript] Select the print direction & start position in page mode •n=0(Left→Right), •n=1(Bottom→Top), ABCD Feeding Feeding •n=2(Right→Left), •n=3(Top→Bottom), Feeding Feeding Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.41...
  • Page 43 Paper Paper EFGH Printing before Standard line ABCD (x,y) moving the standard line Move the standard line Printing Area by CR or LF Printing after EFGH (x+dx,y+dy) moving the standard line ABCD Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.42...
  • Page 44 Set to print Korean mode (2bytes Mode) [Caution] Set to print Korean mode in extended graphic mode Appointment is not required in Korean mode, due to auto detection (Pls refer the command of SUB+‟x‟+n) Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.43...
  • Page 45 Set the space between Korean characters [Format] ASCII Decimal 0≤n1≤255, 0≤n2≤255 [Range] [Initial Value] [Descript] Set the space between Korean characters Set the left space in n1×0.125mm Set the right space in n2×0.125mm Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.44...
  • Page 46 Renewable registeration / deletion at 100000 cycles, It‟s not recommended frequent registeration / deletion, due to memory damage You can register very easily, if you download the program of logo registeration. <Register image > (x×8-1)×y+1 (x×8)×y Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.45...
  • Page 47 (Horizontal Rate), x3(Vertical Rate) : n=32+2=34 Function Set the extension proportion in vertical Set the extension proportion in horizontal Extension in Horizontal Extension in Vertical n(Hex) n(Decimal) Rate n(Hex) n(DecimaL) Rate Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.46...
  • Page 48 Initial setting (first division) First Division Second Division GS+‟B‟+n [Name] Reverse printing in black [Format] ASCII Decimal 0≤n≤255 [Range] [Initial Value] [Descript] Reverse printing in black n=0, standard printing n=1, reverse printing in black Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.47...
  • Page 49 The left margin is set in (nL+nH×256)×0.125mm. GS+‟V‟+m [Name] Select cut mode and cut paper [Format] ASCII Decimal 0≤m≤1 [Range] [Initial Value] [Descript] Select a mode for cutting paper Function Full Cutting Partial Cutting Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.48...
  • Page 50 ITF(I of 2/5) 1≤n 48≤d≤57, 65≤d≤68 CODABAR d=36,43,45,46,47,58 2≤n≤255 (Check digit , Stop character 0≤d≤127 CODE128 Is automatically added) [Caution] In CODE128, add “{“ ,set as 2bytes when the special character as below Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.49...
  • Page 51 Two level barcode Module width Narrow Wide 0.25mm 0.125mm 0.375mm 0.375mm 0.25mm 0.625mm 0.5mm 0.375mm 0.625mm 0.5mm 1.25mm * Multi Level barcode : UPC-E, EAN13, EAN8 * 2 level barcode : CODE39, ITF, CODABAR Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.50...
  • Page 52 0 : Cutter no- error (jamm) 1 : Cutter error (jamm) ※ the status of bit 4 will be effective when the realtime command DLE + EOT + n, The others are fixed „0‟. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.51...
  • Page 53 = 32 byte, 32 × 8 = 256 dot …… …… yL+yH×256 dots a line …… …… …… …… …… …… …… …… k-31 k-30 k-29 7 6 5 4 3 2 1 0 Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.52...
  • Page 54 It is only valid, once the DIP SW1 is *up. *up : on. The command ESC+@ will be reset. However, it doesn‟t work at the paper jam,cutting jam, has to reset compulsory. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.53...
  • Page 55 ※ If the near end sensor is not available, the bit 3 is 1 all the time. ※ Please use the command, after you set up GS+”a”+n unavailable. ex) If the status is 3, it means the paper is end, the head up. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.54...
  • Page 56 GS+’I’+n [Name] Fimware Version Transmission [Format] ASCII Decimal [Range] n=65 [Descript] Fimware Version Transmission on printer 예)Verx.xx Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.55...

  • Page 57: Usb

    Please use the „PrintPackage function‟ as below, if there are a lot of datas to print. Then you are able to increase the speed of the transmission.  Parameters: data : 1 byte data (0~255)  Return : Print normal : 1 Print error : 0 Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.56...

  • Page 58: 6-2)Dll Causion For Using

    If you use Windows driver together, when you use DLL, The data of Windows driver and The data of DLL can not be delivered properly. In this case, please select as the following image Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.57...

  • Page 59: 6-3) Ocx Driver

    We recommend you to use DLL Driver then OCX Driver(Because when we update and we will use DLL Diver from now on) 6-3-1) How to use Please follow the image steps of visual basic as below. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.58...
  • Page 60 Please ask the person in charge about the sample program. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.59...
  • Page 61 Reading normal : The value of printer status Reading error : -1 (minus) [Caution] Please do not use the function we don‟t provide, because it causes the function damage. Please contact us for the sample program. Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.60...

  • Page 62: 6-4) Ocx Notice

    If you release the spool, the data receipt is only made by USB Interface. ※ The Data diagram of window application. Window Driver (Graphic) Window Application USB Port Printer DLL Interface OCX Driver (Command, Character) Send Receive (Printer State) Date) Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.61...
  • Page 63 날 짜 이 력 Page Ver. 2015/11/30 Reversion Release 2.0 Title Revision. Page 054 SERIES RELEASE2 R2.Ver2.0 P.62...
