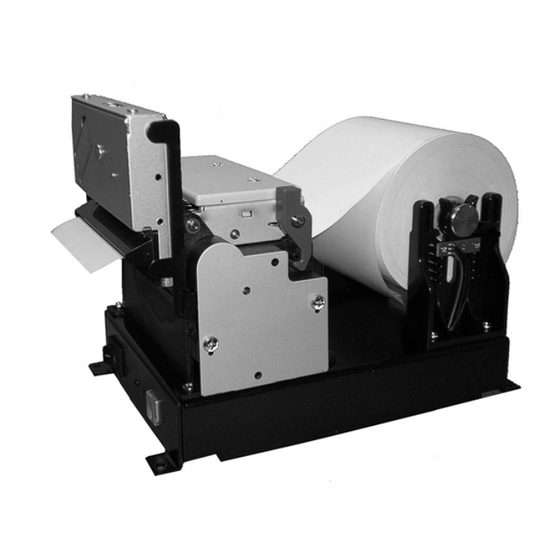

Hwasung HMK-825 User Manual
  1. Manuals
  2. Brands
  3. Hwasung Manuals
  4. Printer
  5. HMK-825
  6. User manual

Hwasung HMK-825 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

HWASUNG SYSTEM CO.,LTD.
User Manual (HMK-825,HMC-825)
<NOTICE> . All features and specifications described are subject to charge without notice.
. If you have any questions, please contact us.
Title
Rev.
Page
HMK-825 HMC-825
Ver1.5
P.0/65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMK-825 and is the answer not in the manual?

Questions and answers

Related Manuals for Hwasung HMK-825

Summary of Contents for Hwasung HMK-825

  • Page 1 HWASUNG SYSTEM CO.,LTD. User Manual (HMK-825,HMC-825) <NOTICE> . All features and specifications described are subject to charge without notice. . If you have any questions, please contact us. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.0/65...
  • Page 2  Please clear the air / open the disclosed place.  Please set the product without damage enviornment.  Please set the product at the stable place.  Pleaes keep the requires as necessary as general electrics. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.1/65...

  • Page 3: Table Of Contents

    4-1) RS232C 4-2) USB 5. Command List 6. Window Driver 6-1) Setting function 6-2) Inserting the paper direction 6-3) Set a new paper 7. Ticket recommend 8. OCX driver (USB) 9. Revision reference Title Rev. Page HMK-825 HMC-825 Ver1.5 P.2/65...

  • Page 4: Printer Features & External Dimension

    2. Error LED 3. Power LED 4.Feed switch 5. Dip switch 1 6. Dip switch 2 7.8 DC Jack (24VDC) 9. Interface connector (serial, female 9 pin) 10.Interface connector (USB, Type B) BOTTOM PRINTER REAR Title Rev. Page HMK-825 HMC-825 Ver1.5 P.3/65...

  • Page 5: 1-2) Dimension

    1-2) Dimension Title Rev. Page HMK-825 HMC-825 Ver1.5 P.4/65...

  • Page 6: Operation

    3. Please control the paper width after the screw is fixed soft. * If the screw is fixed hard, it can’t move left & right. * If the screw is fixed soft, it can move left & right. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.5/65...

  • Page 7: 2-2) Exchanging A Paper Roll

    The paper set in the paper adjuster. 4. Please press the feedbutton, so that it check the paper printing as normal. * If the paper doesn’t come out, please try to follow the step again (number 3). Title Rev. Page HMK-825 HMC-825 Ver1.5 P.6/65...

  • Page 8: 2-2-2) Auto Loading

    * Please power on. * Please use the adjuster to set the paper. * Please Insert the paper as deep as you can. !!! It’s normal when you hear the motor sound. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.7/65...

  • Page 9: 2-3) Removing A Paper Jam

    Please remember that the power should be off.  If there is the remains at the cutter, please open the cutter as first image. And please return the second image as below. Cutter holder Shaft Title Rev. Page HMK-825 HMC-825 Ver1.5 P.8/65...

  • Page 10: 2-4) Self-Test

    Then you see the details as below. * Model number * Firmware version / creation date * Interface * Dip switch * Sample printing Dip switch : Please refer the dip switch at 2-7)dipswitch. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.9/65...
  • Page 11 41 42 43 44 45 46 47 47 49 4A 4B 4C 30 31 32 33 34 35 36 37 38 39 1B 4A 0 1 2 3 4 5 6 7 8 ^ . i Title Rev. Page HMK-825 HMC-825 Ver1.5 P.10/65...

  • Page 12: 2-6) Updating (Onboard)

    Please return the process “1.” and follow the step again. 5) Please lift down the fourth (4 th) of Dip Switch 2. Please power off and on, then setting the switch. You can use the printer updated. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.11/65...

  • Page 13: 2-7) Dip Switch

    1 STOP HEX DUMP mode 2 STOP NORMAL mode 2) Dip switch 2 a) 1: Realtime command valid / invalid Real time command as valid / invalid DLE Command on DLE Command off Title Rev. Page HMK-825 HMC-825 Ver1.5 P.12/65...
  • Page 14 * Please refer the article 2-8). d) 4 : Update / Print Decription Update mode Firmware update mode Print mode Standard print mode Title Rev. Page HMK-825 HMC-825 Ver1.5 P.13/65...

  • Page 15: 2-8) Memory Switch

    Page 1. On the back Cutting Position Page.2 Black mark Black mark starting point starting point Page.2 Cutting Position Ex) SW1 = p, SW2 = 100, Ex) SW1 = m, SW2 = 100, Title Rev. Page HMK-825 HMC-825 Ver1.5 P.14/65...
  • Page 16 For example ) 300 x 0.125mm = 37.5mm * The value is set 248 (31mm) when the printer releases at the factory. For example) Blackmark starting point ※Black mark at the back Page 2. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.15/65...

  • Page 17: 2-9) Internal Connector

    HD_UP Cover open /LATCH TPH Latch Motor A Motor B /STROBE1 TPH STROBE1 Motor /A /STROBE2 TPH STROBE2 Motor /B CLOCK TPH CLOCK MARK_A Black mark sensor power MARK_C Black mark sensor output Title Rev. Page HMK-825 HMC-825 Ver1.5 P.16/65...
  • Page 18 Remark VBUS VBUS input Data- Data+ Signal GND Frame GND1 Frame GND2 7) CN7 : RS232C (DSUB9, FEMALE) Descript. Remark 8) CN8 : Sub-connector (GW200-03,Geoyoung or 53014-0310,Molex) Descript. Remark Sensor power Sensor output Title Rev. Page HMK-825 HMC-825 Ver1.5 P.17/65...

  • Page 19: 2-10) Retractor (Dispensor)

    2) Please use the length of paper which is printing as 30cm, when you print a paper a time. 3) Please do not use the length of paper which is printing less than 6cm. 4) We recommend the paper width 72mm-82.50mm. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.18/65...

  • Page 20: General Specification

    Paper sensor, TPH control,Sensor for TPH 3-3) Paper loading capacity 320 gf·cm more 3-4) Weight About 1.3kgs (HMK-825) 3-5) Operation condition (temp./humid) 1) Temporature : 0∼40℃ 2) Humidity : 40∼90%RH (non frost) ※ The printing is subjet to operation condition.

  • Page 21: Interface Specficiation

    Full Speed : Max Packet Size 64 Byte(Bulk OUT),64 Byte(Bulk IN)   High Speed : Max Packet Size 512 Byte(Bulk OUT),512 Byte(Bulk IN) ※ Full Speed, High Speed mode is automatically set with host communication. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.20/65...

  • Page 22: Command List

    Set the korean in extended graphic mode FS . Cancel the korean in extended graphic mode FS - Set the underline of Korean FS S Space Korean FS W Set the font size of Korean Title Rev. Page HMK-825 HMC-825 Ver1.5 P.21/65...
  • Page 23 Line 2 (Vertical, Horizontal) SUB W Write (Vertical, Horizontal) SUB C Clear (Vertical, Horizontal) SUB O ON (Vertical,Horizontal) SUB F OFF (Vertical, Horizontal) SUB P Print one dot line (Vertical, Horizontal) ESC t International Code Page Title Rev. Page HMK-825 HMC-825 Ver1.5 P.22/65...
  • Page 24 Cancel print data in page mode [Format] ASCII Decimal [Range] [Dsecirpt] [Name] Horizontal tab [Format] ASCII Decimal [Range] [Descript] Moves the print position to the next tab poisition [Caution] Horizontal tab position are to set in ESC+’D’+n. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.23/65...
  • Page 25 : the feeding in reverse direction till black mark is out. n=3 : the feeding in reverse directoin till black mark is detected. [Caution] the feeding range is restricted in 30Cm. Once the detection distance is over in 30Cm, it could be jammed. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.24/65...
  • Page 26 : Printing Speed 220mm/s n=17 : Printing Speed 230mm/s n=18 : Printing Speed 240mm/s n=19 : Printing Speed 250mm/s [Caution] Control command density once the low speed makes printing density (be) unclear Title Rev. Page HMK-825 HMC-825 Ver1.5 P.25/65...
  • Page 27 1: Set the stress 0: Cancel the extension in Vertical 1: Set the extension in Vertical 0: Cancel the extension in Horizontal 1: Set the extension in Horizontal 0: Cancel the underline 1: Set the underline Title Rev. Page HMK-825 HMC-825 Ver1.5 P.26/65...
  • Page 28 0≤nL+nH×256≤65535, 0≤nL≤255, 0≤nH≤255 [Initial Value] nL=0, nH=0 [Descript] Move the position from the space of left ending to (nL+nH×256)×0.125mm. Move the position into the space of left ending, if the area is over. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.27/65...
  • Page 29 Dots in Data (k) vertical horizontal nL+nH×256 8dots Single Density nL+nH×256 8dots Double Density (nL+nH×256)×3 24dots Single Density (nL+nH×256)×3 24dots Double Density •8 dots Mode Twice Single Three Three times times Single Double Title Rev. Page HMK-825 HMC-825 Ver1.5 P.28/65...
  • Page 30 Set underline in thick 0.125mm Set underline in thick 0.25mm Set underline in thick 0.375mm Set underline in thick 0.5mm Set underline in thick 0.625mm Set underline in thick 0.75mm Set underline in thick 0.875mm Title Rev. Page HMK-825 HMC-825 Ver1.5 P.29/65...
  • Page 31 Clear buffer & Initialize all parameter ESC+’E’+n [Name] Set the font in thick [Format] ASCII Decimal [Range] 0≤n≤255, [Initial Value] [Descript] n=0, cancel the font in thick n=1, set the font in thick Title Rev. Page HMK-825 HMC-825 Ver1.5 P.30/65...
  • Page 32 Lower 4 bits (ASCII,1 byte font) 0000 Korean 24x24 0000 12x24 0001 Not available. 0001 8x16 0010 Japanese 24x24 (OEM font) 0010 56x88 Large fonts, 0-9 only numbers. 0011 Chinese 24x24 (OEM font) Title Rev. Page HMK-825 HMC-825 Ver1.5 P.31/65...
  • Page 33 Denmark1 Sweden Italian Spain1 Japanese Norway Denmark2 Spain2 Latin America Korea ESC+’a’+n [Name] Align the printing [Format] ASCII Decimal [Range] 0≤n≤2 [Initial Value] [Descript] Align the printing position Printing Position Left Middle Right Title Rev. Page HMK-825 HMC-825 Ver1.5 P.32/65...
  • Page 34 Move the standard from the left to the right Function Cancel 180° Set 180° ESC+’i’ [Name] Full Cutting [Format] ASCII Decimal [Descript] Cutting the paper completely ESC+’m’ [Name] Partial Cutting [Format] ASCII Decimal [Descript] Cutting the paper partially Title Rev. Page HMK-825 HMC-825 Ver1.5 P.33/65...
  • Page 35 ASCII Decimal [Descript] Cancel Korean mode (2Bytes mode) [Caution] In case of cancel 2 bytes mode in extended graphic mode Appointment is not required due to auto detection in Korean mode (Ref.SUB+’x’+n command) Title Rev. Page HMK-825 HMC-825 Ver1.5 P.34/65...
  • Page 36 Set the font size in Korean [Format] ASCII Decimal [Range] 0≤n1≤255 [Initial Value] [Descript] Set the Korean font size twice (HorizontalxVertical) in Korean n=0, Cancel the font size double. n=1, Set the font size double. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.35/65...
  • Page 37 [Initial Value] [Descript.] m : printing the registered N/V in ‘m’ mode n : indicating the regsitered logo in the ‘n’. Printing mode Standard Horizontal extension Vertical extension Horizontal,vertical extension in the same time Title Rev. Page HMK-825 HMC-825 Ver1.5 P.36/65...
  • Page 38 0≤m≤5, 251≤m≤255 [Initial Value] [Descript] Set the printing density Density Density Standard Level –5 Level +1 Level –4 Level +2 Level –3 Level +3 Level –2 Level +4 Level -1 Level +5 Title Rev. Page HMK-825 HMC-825 Ver1.5 P.37/65...
  • Page 39 Select the printing position of HRI characters (Barcode) [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the printing positions of numerical value & characters Printing Position Non printing Above the barcode Below the barcode Both above & below barcode Title Rev. Page HMK-825 HMC-825 Ver1.5 P.38/65...
  • Page 40 Set printing area width from the left margin in (nL+nH×256)×0.125mm Printing area Left Margin Printing area width GS+’h’+n [Name] Select barcode height [Format] ASCII Decimal [Range] 1≤n≤255 [Initial Value] n=162 (20.25mm) [Descript] Select barcode height by n×0.125mm Title Rev. Page HMK-825 HMC-825 Ver1.5 P.39/65...
  • Page 41 123, 66 CODE C 7Bh, 43h 123, 67 FNC1 7Bh, 31h 123, 49 FNC2 7Bh, 32h 123, 50 FNC3 7Bh, 33h 123, 51 FNC4 7Bh, 34h 123, 52 “{“ 7Bh, 7Bh 123, 123 Title Rev. Page HMK-825 HMC-825 Ver1.5 P.40/65...
  • Page 42 The command is executed when the data in receive buffer is developed Therefore automatic status function (GS+’a’+n) is to use better, It is used for re-confirm in on-line after automatic status is received Title Rev. Page HMK-825 HMC-825 Ver1.5 P.41/65...
  • Page 43 0 : Paper invalid at sub sensor 1 : Paper valid at sub sensor ※ the status of bit 4 is effective when the realtime command DLE + EOT + n, The others are fixed ‘0’. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.42/65...
  • Page 44 Set the Standard mode [Format] ASCII Decimal [Descript] Swtiches from page mode to standard mode ESC+’L’ [Name] Select page mode [Format] ASCII Decimal [Range] 0≤n≤255 [Initial Value] [Descript] Switches from standard mode to page mode Title Rev. Page HMK-825 HMC-825 Ver1.5 P.43/65...
  • Page 45 Select print direction in page mode [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the print direction & start position in page mode •n=0 (Left→Right), •n=1 (Bottom→Top), ABCD Feeding Feeding •n=2 (Right→Left), •n=3 (Top→Bottom), Feeding Feeding Title Rev. Page HMK-825 HMC-825 Ver1.5 P.44/65...
  • Page 46 : Barcode or Graphic Paper Paper EFGH Standard line Printing before ABCD (x,y) moving the standard line Move the standard line Printing Area by CR or LF Printing after EFGH (x+dx,y+dy) moving the standard line ABCD Title Rev. Page HMK-825 HMC-825 Ver1.5 P.45/65...
  • Page 47 Printing the page area. [Format] ASCII Decimal [Description] It prints the page area all at once. [Caution] Please use the command ESC+S to clear the data, Because the data is not deleted, after it printed. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.46/65...
  • Page 48 This command is only effective if DIP SW1 is on. Pls refer the status at the table, page 42. If the command is received same data, it could be same operation (Bit image data,etc) Title Rev. Page HMK-825 HMC-825 Ver1.5 P.47/65...
  • Page 49 = 32 byte, 32 × 8 = 256 dot …… …… yL+yH×256 dot line …… …… …… …… …… …… …… k-31 k-30 k-29 …… 7 6 5 4 3 2 1 0 Title Rev. Page HMK-825 HMC-825 Ver1.5 P.48/65...

  • Page 50: Window Driver

    Buzzer setting [Format] ASCII Decimal [Range] 0≤n1≤50 or 0≤n2≤50, [Descript] Buezzer length set as 100msec(0.1sec) (Max 5sec) n1=0 (It’s silent.) n1= the time length of Buzzer ON n2= The time length of Buzzer OFF Title Rev. Page HMK-825 HMC-825 Ver1.5 P.49/65...

  • Page 51: 6-1) Setting Function

    It doesn’t collect the paper automatically. It is to collect the paper, when the user want the collection. SUB+’1’ [Name] Line 1 (Vertical, Horizontal) [Format] ASCII Decimal 26 [Descript] It chooses the line 1 of vertical, horizontal. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.50/65...

  • Page 52: 6-2) Inserting The Paper Direction

    The all of line will be clear as 0 (zero). [Caution] Please direct ON/OFF to speed up the process. It is to write again the data of line. SUB+’O’ [Name] ON (Vertical, Horizontal) [Format] ASCII Decimal [Descript] It writes the character together. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.51/65...

  • Page 53: 6-3) Set A New Paper

    PC437(USA) Windows1250(Poland) KANA(JAPAN) PC850(Multilingual) Greece PC860(Portuguese) WPC1251 WPC1252 PC866(Cyllic #2,Russian) Iran System Encoding Standard [Caution] 1 byte will be vailid, if it’s SUB + x, or FS+”.” 2 bytes will NOT be vailid. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.52/65...
  • Page 54 ※ The quality of printing will be different, because it prints out as graphic. So pls try to print out as below. Printing width : 60mm -> Speed 150mm 80mm -> Speed 130mm Title Rev. Page HMK-825 HMC-825 Ver1.5 P.53/65...
  • Page 55 ' dummy print for form feeding Printer.EndDoc 4) Page length Feeder : After printing, The form feeding will be conducted as long as the length is fixed. It is mostly used when the regular legnth is printed. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.54/65...
  • Page 56 4) Please type the width 6.0 cm / the height 15.0 cm as image. 5) Please click the ‘form install’ Ticket (Size 60 x 150mm) as image. 6) Please click the tap ‘advanced’ and set the paper Ticket(Size 60 x 150mm). Title Rev. Page HMK-825 HMC-825 Ver1.5 P.55/65...
  • Page 57 Title Rev. Page HMK-825 HMC-825 Ver1.5 P.56/65...

  • Page 58: Ticket Recommend

    <Standard Ticket> <Available Ticket> 60~80 60~80 Blak mark Cutting (real position) Position (Black mark front) Blackmark Starting point min.8 ~ Cutting Cutting Position Position Blak mark Page 2 (real position) [FRONT PRINTED] [FRONT PRINTED] Title Rev. Page HMK-825 HMC-825 Ver1.5 P.57/65...

  • Page 59: Ocx Driver (Usb)

    You can check the printer status, and transfer / receive the data without Window driver, since that we provide the USB interface OCX driver (HwasUSB.OCX) 8-1) How to use Please follow the image steps of visual basic as below. ② ① ③ ④ Title Rev. Page HMK-825 HMC-825 Ver1.5 P.58/65...
  • Page 60 ⑤ ※ You can have the sample program if you ask the person in charge. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.59/65...
  • Page 61 8-2) Functions 8-2-1) long HwaUSB1.Open (LPCTSTR SelPrinter); Please open USB port by Printer Model (“HMK-825”).  Parameters : SelPrinter : Printer Model Name  Return : Open normal : 0 Open error : -3 (minus) 8-2-2) void HwaUSB1.Close (void); Please close USB port by Printer Model (“HMK-825”).
  • Page 62 [Caution] 8-3) OCX driver The data transmission will not be made if you use the Windows driver together, when you use the OCX driver. We recommend you tick the image as below. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.61/65...
  • Page 63 Title Rev. Page HMK-825 HMC-825 Ver1.5 P.62/65...

  • Page 64: Title Rev

    3.14 13/02/22 테스트 인자시 메모리 스위치값인쇄 및 가속구간 인쇄품질 조정. 4.00 13/05/24 OCX 드라이버 기능개선 (v2.0.0.0) 대응. Watchdog timer 대응 115200bps 커맨드 업데이트 대응. 4.01 13/07/23 로고등록 에러 수정.메모리스위치 4번 bit0로 dc3+i 파셜컷 대응. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.63/65...
  • Page 65 4.02 13/08/22 OCX 드라이버 기능개선하면서, USB로 로고등록시 에러현상 수정. 4.03 14/05/26 표준품 4.03에 한글/일본어/중국어 폰트 동시대응. Title Rev. Page HMK-825 HMC-825 Ver1.5 P.64/65...
