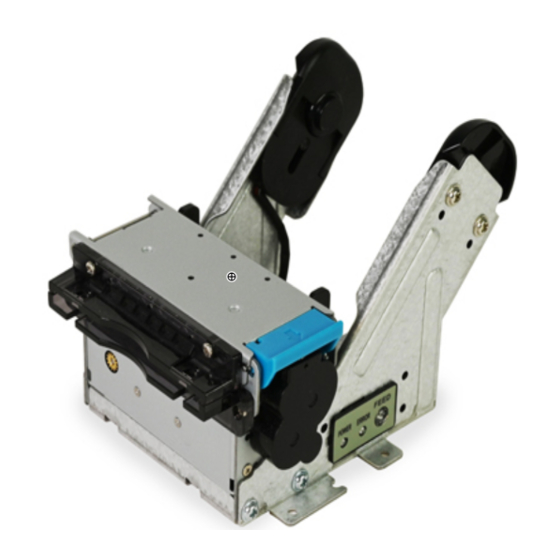

Hwasung HMK-056 User Manual
  1. Manuals
  2. Brands
  3. Hwasung Manuals
  4. Printer
  5. HMK-056
  6. User manual

Hwasung HMK-056 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
HMK-056
HMV-056

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMK-056 and is the answer not in the manual?

Questions and answers

Related Manuals for Hwasung HMK-056

Summary of Contents for Hwasung HMK-056

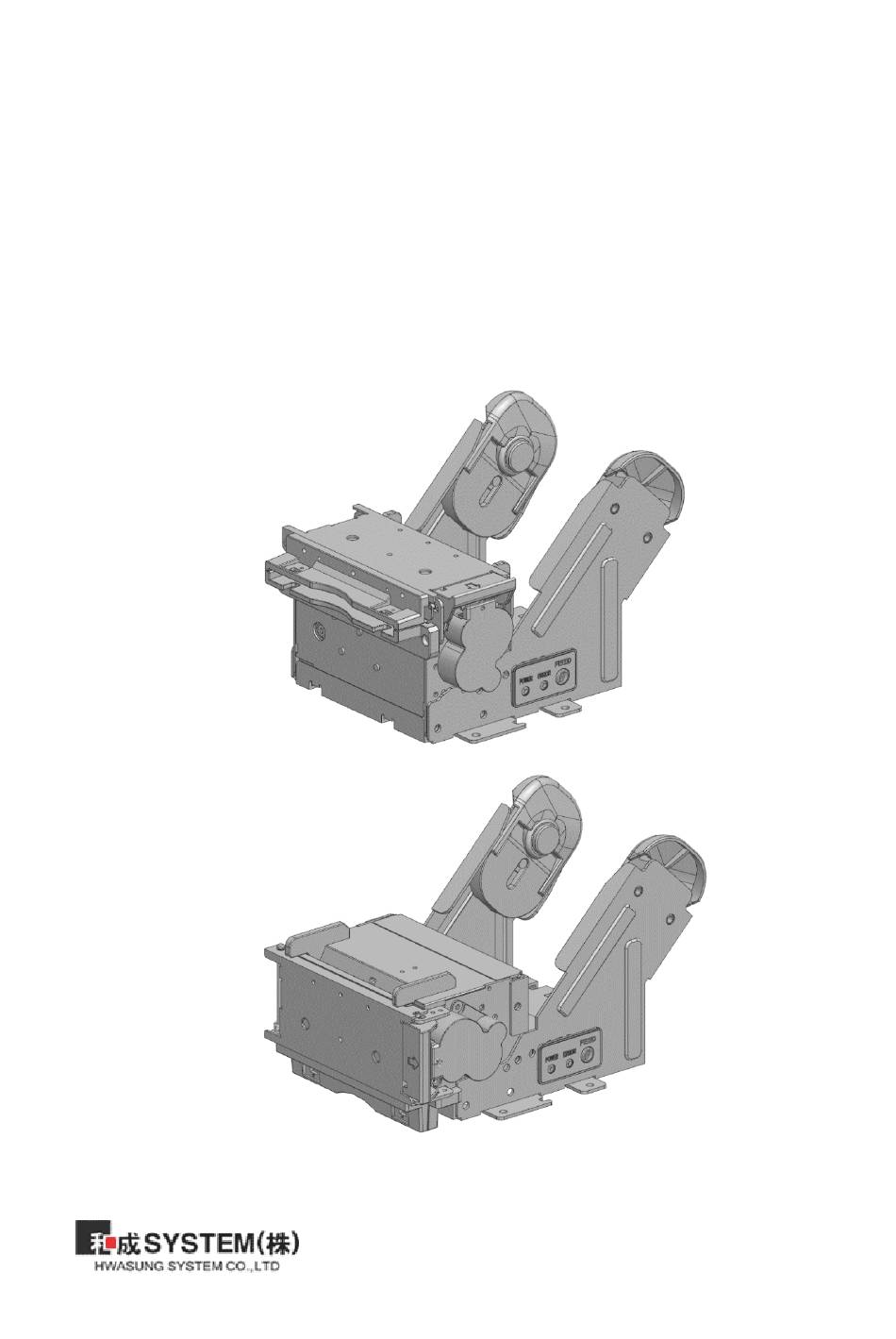

  • Page 1 User Manual HMK-056 HMV-056...
  • Page 2  Please ventilate the space where the product works in often.  Please install the product away from the near interferences.  Please install the wiring in a safe place.  Please follow the directed terms of compliance in using the electrical product. Model Rev. Page HMK-056 Ver1.01...

  • Page 3: Table Of Contents

    7-1) Black Mark on the left 7-2) Black Mark on the right 8. Commands for Ticket Mode 8-1) Switch to Ticket Mode 8-2) Commands 9. USB Communication Settings 9-1) DLL Interface 9-2) Cautions * Manual Update Records Model Rev. Page HMK-056 Ver1.01...

  • Page 4: General Specifications

    Humidity Storage 40 ~ 95% RH Horizontal type : 481g Weight Vertical type : 514g Horizontal type : 99 x 138 x 92 (mm) External Dimensions Vertical type : 99 x 150 x 93 (mm) Model Rev. Page HMK-056 Ver1.01...

  • Page 5: Compenent Overview And External Dimensions

    3. Feed Button [Image2-2] 4. Power Switch 5. DC (24VDC) ① ③ ④ ② ① ② 6. Comm. Connector (USB, Type B) 7. Comm. Connector (Serial, Female 4 pin) 8. Near End Sensor Connector [Image2-3] Model Rev. Page HMK-056 Ver1.01...

  • Page 6: 2-2) External Dimensions

    2-2) External Dimensions 2-2-1) HMK-056 Model Rev. Page HMK-056 Ver1.01...
  • Page 7 2-2-2) HMV-056 Model Rev. Page HMK-056 Ver1.01...

  • Page 8: 2-3) Model Number

    2-3) Model Number HM□-056 ※ Frame Type : Kiosk(Fixture) Type : Vertical Type : Board Type Model Rev. Page HMK-056 Ver1.01...

  • Page 9: Operation

    3. Operation 3-1) Loading Papoer 1. Push the left lever and move the paper roll down in the direction of the arrow. [Image3-1] 2. Release the left lever and the paper roll are loaded. [Image3-2] Model Rev. Page HMK-056 Ver1.01...

  • Page 10: 3-2) Paper Changing

    3. Close the cover in the direction of the arrow in [Image 3-6]. After changing the paper rolls, you can press the feed button to check whether it works properly. * If the paper does feed out well, open the cover and inserthe the paper again. [Image3-6] Model Rev. Page HMK-056 Ver1.01...

  • Page 11: 3-2-2) Auto-Loading Method

    It will cut the paper after feeding it to a certain point. ※ Push the paper deeply into the entrance. ※ The motor makes some noises, which are normal. [Image3-7] [Image3-8] Model Rev. Page HMK-056 Ver1.01...

  • Page 12: 3-3) Jam Removal

    1. Turn off the power and check whether the paper path is blocked by the auto cutter’s blade. (When cutter’s blade is properly secured) (When cutter’s blade is blocked) [Image3-9] 2. If the cutter’s blade is blocked, you can reboot the printer and it returns to the proper place. Model Rev. Page HMK-056 Ver1.01...

  • Page 13: 3-4) Self-Test

    Interface and Setting information Interface : USB & RS-232C Baud Rate : 19200 Data Bit : 8 Bit Parity : None Stop Bit : 1 or 2 Peripheral & Setting Information USB Status Auto Cutter :: BuiIt-in Model Rev. Page HMK-056 Ver1.01...

  • Page 14: 3-5) Hex Dump Print

    A B C D E F G H I 41 42 43 44 45 46 47 47 49 30 31 32 33 34 35 36 37 38 0 1 2 3 4 5 6 7 8 FF 1B 69 ^ . i Model Rev. Page HMK-056 Ver1.01...

  • Page 15: 3-6) Firmware Update

    1) after checking the abnormalities on the device. 5) The printer will reset automatically after the update and will return to the ready to use status. Model Rev. Page HMK-056 Ver1.01...

  • Page 16: 3-7) Firmware Restoration

    5) It is demanding to release the jumper short after running the booting program. If you miss this process, the data will disappear after the firmware restoration. 6) Click on “File open” icon next to ‘Send File Name’, to select the target model’s firmware Model Rev. Page HMK-056 Ver1.01...
  • Page 17 ‘Send File’ Button. (※Caution Do not modify other parameter’s value.) ① ② 7) There will be a prompt after the file transmit is complete, click “YES(Y)” button on the prompt. Model Rev. Page HMK-056 Ver1.01...
  • Page 18 8) Under Scripts filed, set the value to ‘Boot from Flash(GPNVM1)’ and then click on “Execute”. 9) Restart the printer by turning the power off and back on. Model Rev. Page HMK-056 Ver1.01...

  • Page 19: 3-8) Communication Setting

    Meaning, ‘(->)’ indicates the current setting. When changing the settings, select from the list and if you want to move to the next menu without making any changes, then just confirm without selecting from the list. Model Rev. Page HMK-056 Ver1.01...
  • Page 20 2) Run the utility program and after selecting the communication port in use, set the Baudrate to 9600, and click on the Communication Test button. When succeeding in communication, the Start transmit button will activate. ① ② ③ -> When configuring with USB interface, set the Port to USB. Model Rev. Page HMK-056 Ver1.01...
  • Page 21 3) After Clicking on the Memory Switch tab, select HMK-056 under ‘Special Model Option’ drop down menu. Then select the relevant contents in each appearing forms and click on the ‘Start Transmit’ Button. Turn off the power to the printer then back on after finishing the configuration and the printer will work in the configured value.

  • Page 22: 3-9) Memory Switch Program

    Korean (16x16), Japanese (24x24), Chinese (24x24). 1byte code will set the default from ASCII (12x24), ASCII(8x16,9x16). Reserve Reserve Reserve Paper Setting Code Page Setting Font Setting Click on the transmit button after setting all variables Model Rev. Page HMK-056 Ver1.01...
  • Page 23 1page 1page ※Left Blackmark Cutting (Backside) Position 2page Blackmark Blackmark point Point 2page Cutting position When SW1 = p, SW2 = 100 When SW1 = m, SW2 = 100 [Front, Printing Side] [Front, Printing Side] Model Rev. Page HMK-056 Ver1.01...
  • Page 24 [Memory Switch information] ================================ Code Page = PC437(U.S) 2Byte Font = Korean(24x24) 1Byte Font = ASCII(12x24) Mem1:FFh Mem2:FFh,FFh Mem3:FFh,FFh Mem4:00h Mem5:00h Mem6:FFh Mem7:FFh Mem8:FFh Mem9:FFh Mem10:FFh (Example of memory switch content checking self test printing) Model Rev. Page HMK-056 Ver1.01...

  • Page 25: Interface Specification

    : USB2.0 Standard Cable 4)Data Methods : Bulk IN, Bulk OUT  Bulk IN : End point 6,  Bulk OUT : End point 2 Full Speed : Max Packet Size 64 Byte(Bulk OUT),64 Byte(Bulk IN)  Model Rev. Page HMK-056 Ver1.01...

  • Page 26: Commands

    GS (K (fn=49) Character Density GS (K (fn=97) Operating in Low Power GS B Black and White Cross Character GS H Barcode Text GS L Left Margin GS V Paper Cutting GS W Print Area Setting Model Rev. Page HMK-056 Ver1.01...
  • Page 27 Select Line 1 SUB 2 Select Line 2 SUB W Data Line WRITE SUB C Data Line CLEAR SUB O Line ON SUB F Line OFF SUB P Line 1 Dotline Character ESC t International Codepage Setting Model Rev. Page HMK-056 Ver1.01...
  • Page 28 The print data will be deleted in print area [Function] Horizontal tab [Code] ASCII Decimal [Range] [Description] Moves the print position to the next tab position [Caution] Horizontal tab positions are to set in ESC+’D’+n. Model Rev. Page HMK-056 Ver1.01...
  • Page 29 : Feeds in reversed direction until the sensor passes the blackmark. n=3 : Feeds in reversed direction until it detects the blackmark. [Caution] The feeding range is restricted in 30cm. Once the detection distance is over in 30Cm, it could be jammed. Model Rev. Page HMK-056 Ver1.01...
  • Page 30 : Prints in Speed 140mm/s. n=9 : Prints in Speed 150mm/s. n=10 : Prints in Speed 160mm/s. [Caution] As the print speed lowers, the print density becomes dim, so you need to control the density using the density command. Model Rev. Page HMK-056 Ver1.01...
  • Page 31 0: Font 12x24, 24x24 1: Font 8x16, 16x16 0: Stress Cancel 1: Stress Setting 0: Cancel Vertical Extension 1: Vertical Extension Setting 0: Cancel Horizontal Extension 1: Horizontal Extnesion Setting 0: Cancel Underline 1: Underline Setting Model Rev. Page HMK-056 Ver1.01...
  • Page 32 Decimal [Range] 0≤nL+nH×256≤65535, 0≤nL≤255, 0≤nH≤255 [Initial Value] nL=0, nH=0 [Description] Move the position from the space of left ending to (nL+nH×256)×0.125mm. Move the position into the space of left ending, if the area is over. Model Rev. Page HMK-056 Ver1.01...
  • Page 33 Dots in Mode Dots in Data (k) horizontal vertical nL+nH×256 8dots Single Density nL+nH×256 8dots Double Density (nL+nH×256)×3 24dots Single Density (nL+nH×256)×3 24dots Double Density •8 dots Mode Double Single Threefold Threefold Single Double Density Density Model Rev. Page HMK-056 Ver1.01...
  • Page 34 Set underline in thick 0.125mm Set underline in thick 0.25mm Set underline in thick 0.375mm Set underline in thick 0.5mm Set underline in thick 0.625mm Set underline in thick 0.75mm Set underline in thick 0.875mm Model Rev. Page HMK-056 Ver1.01...
  • Page 35 0≤n≤255, [Descript] Clear buffer & Initialize all parameter ESC+’E’+n [Name] Set the font in thick [Format] ASCII Decimal [Range] 0≤n≤255, [Initial Value] [Descript] n=0, cancel the font in thick n=1, set the font in thick Model Rev. Page HMK-056 Ver1.01...
  • Page 36 : In case of Big Font as 56x88, it would be possible to extend font size as much as Double (Width and Length) and other fonts would be possible to extend the font size as 8 times Model Rev. Page HMK-056 Ver1.01...
  • Page 37 Germany England Denmark1 Sweden Italian Spain1 Japanese Norway Denmark2 Spain2 Latin America Korea ESC+’a’+n [Name] Align the printing [Format] ASCII Decimal [Range] 0≤n≤2 [Initial Value] [Descript] Align the printing position Printing Position Left Middle Right Model Rev. Page HMK-056 Ver1.01...
  • Page 38 Move the standard from the left to the right Function Cancel 180° Set 180° ESC+’i’ [Name] Full Cutting [Format] ASCII Decimal [Descript] Cutting the paper completely ESC+’m’ [Name] Partial Cutting [Format] ASCII Decimal [Descript] Cutting the paper partially Model Rev. Page HMK-056 Ver1.01...
  • Page 39 Cancel Korean mode (2Bytes mode) [Format] ASCII Decimal [Descript] Cancel Korean mode (2Bytes mode) [Caution] In case of cancel 2 bytes mode in extended graphic mode Appointment is not required due to auto detection in Korean mode (Ref.SUB+’x’+n command) Model Rev. Page HMK-056 Ver1.01...
  • Page 40 Set the font size in Korean [Format] ASCII Decimal [Range] 0≤n1≤255 [Initial Value] [Descript] Set the Korean font size twice (HorizontalxVertical) in Korean n=0, Cancel the font size two times n=1, Set the font size two times Model Rev. Page HMK-056 Ver1.01...
  • Page 41 1≤n≤255, 0≤m≤3 [Initial Value] [Descript.] m : printing the registered N/V in ‘m’ mode n : indicating the regsitered logo in the ‘n’. Printing mode Standard Horizontal extension Vertical extension Horizontal,vertical extension in the same time Model Rev. Page HMK-056 Ver1.01...
  • Page 42 Level –2 Level +4 Level -1 Level +5 [Caution] In case of setting the density above the standard level will shorten the thermalhead’s life cycle. It is recommended to use within the standard density range. Model Rev. Page HMK-056 Ver1.01...
  • Page 43 Select the printing position of HRI characters (Barcode) [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the printing positions of numerical value & characters Printing Position Non printing Above the barcode Below the barcode Both above & below barcode Model Rev. Page HMK-056 Ver1.01...
  • Page 44 Set printing area width from the left margin in (nL+nH×256)×0.125mm Printing area Left Margin Printing area width GS+’h’+n [Name] Select barcode height [Format] ASCII Decimal [Range] 1≤n≤255 [Initial Value] n=162 (20.25mm) [Descript] Select barcode height by n×0.125mm Model Rev. Page HMK-056 Ver1.01...
  • Page 45 Please add up the initial character of CODE A, CODE B, CODE C at the first, so that you could know the kind of CODE128. CODE128 Initial character Example of barcode CODE A “gABCD" CODE B “hABCD" CODE C “iABCD" Model Rev. Page HMK-056 Ver1.01...
  • Page 46 The status is not ready till the printer is offline, If the receiver buffer is full at the printer offline, this command is not able to receive, and is not able to respond to the status. Therefore we recommend the real time command (DLE+EOT).. Model Rev. Page HMK-056 Ver1.01...
  • Page 47 0: No paper in the Support Sensor 1: Paper in the Support Sensor ※ the status of bit 4 will be effective when the realtime command DLE + EOT + n, The others are fixed ‘0’. Model Rev. Page HMK-056 Ver1.01...
  • Page 48 Set the Standard mode [Format] ASCII Decimal [Descript] Swtiches from page mode to standard mode. ESC+’L’ [Name] Select page mode [Format] ASCII Decimal [Range] 0≤n≤255 [Initial Value] [Descript] Switches from standard mode to page mode Model Rev. Page HMK-056 Ver1.01...
  • Page 49 ESC+’T’+n [Name] Select print direction in page mode [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the print direction & start position in page mode •n=0(Left→Right), •n=1(Bottom→Top), ABCD Feeding Feeding •n=2(Right→Left), •n=3(Top→Bottom), Feeding Feeding Model Rev. Page HMK-056 Ver1.01...
  • Page 50 : Barcode or Graphic Paper Paper EFGH Printing before Standard line ABCD (x,y) moving the standard line Move the standard line Printing Area by CR or LF Printing after EFGH (x+dx,y+dy) moving the standard line ABCD Model Rev. Page HMK-056 Ver1.01...
  • Page 51 Please edit the received data at the page area. The page area will be printed all at once, when you use this command. [Descript] The page area remains. Please use the command ESC+S, If you want all clear. Model Rev. Page HMK-056 Ver1.01...
  • Page 52 0 : Print complete 1 : Print or Feeding 0 : Cutter no- error (jam) 1 : Cutter error (jam) 0 (unused) 0: No paper in the Support Sensor 1: Paper in the Support Sensor Model Rev. Page HMK-056 Ver1.01...
  • Page 53 = 32 byte, 32 × 8 = 256 dot …… …… yL+yH×256 dots a line …… …… …… …… …… …… …… k-31 k-30 k-29 …… 7 6 5 4 3 2 1 0 Model Rev. Page HMK-056 Ver1.01...
  • Page 54 [Range] 0≤n1≤50 or 0≤n2≤50, [Description] Setting the buzzer sound length in 100msec(0.1sec) unit. (Max 5sec) n1=Buzzer ON time n2=Buzzer OFF time Buzzer will not sound when n1 is set to 0. (Buzzer Sound Cancel Setting) Model Rev. Page HMK-056 Ver1.01...
  • Page 55 SW1, SW2 to cut the paper at the designated position. ※Refer to 2-8) Memory Switch for the detailed information. ※Use the provided Memory Switch Utility Program to register data on the Memory Switch. Model Rev. Page HMK-056 Ver1.01...
  • Page 56 If you need to speed up the processing, you use the command on/off. SUB+’O’ [Name] Rule ON [Format] ASCII Decimal [Descript] Once you set up the command, the rull will be printing with the character or font. Model Rev. Page HMK-056 Ver1.01...
  • Page 57 You can set up the code page according to the following table. [Caution] SUB + x command 1 byte valid. Korean mode is not invalid. Code Page PC437(US) KANA(JAPAN) GREEK Windows1251 PC866(Cyllic #2) Windows1250(Poland) PC850(Multilingual) PC860(Portugal) Windows1252 Iran System Encoding Standard PC857(Turkish) PC864(ARABIC) Model Rev. Page HMK-056 Ver1.01...

  • Page 58: Windows Driver

    ※All are printed graphically, so the print quality may vary depending on the amount of data printed. Print to meet the criteria below for smooth printing. Print Width 60mm: Set the speed to 150mm. Model Rev. Page HMK-056 Ver1.01...

  • Page 59: 6-2) Paper Supply Configuration

    Printer.Print "." ' dummy print for form feeding Printer.EndDoc 4) page length Feeder : After print, execute form feeding up to the set page length. Set when the printed materials are fixed to a certain length. Model Rev. Page HMK-056 Ver1.01...

  • Page 60: 6-3) Making New Paper Format

    Make sure to make no changes in the print area margin. 5) Save the form after creating a custom name for the size. (i.e, Ticket(Size 60 x 150mm)). 6) Go to Basic Print Setting -> Advance then Select the newly created Ticket(Size 60 x 150mm) Model Rev. Page HMK-056 Ver1.01...
  • Page 61 Model Rev. Page HMK-056 Ver1.01...

  • Page 62: Ticket Specification

    L+B < 15 meaning, it should range within L < 15 - B. [*Note2] When cutting position is front of blackmark, condition should be the same as Note 1. [*Note3] In case of cutting position is behind the blackmark. Model Rev. Page HMK-056 Ver1.01...

  • Page 63: 7-2) Black Mark On The Right

    L+B < 15 meaning, it should range within L < 15 - B. [*Note2] When cutting position is front of blackmark, condition should be the same as Note 1. [*Note3] In case of cutting position is behind the blackmark. Model Rev. Page HMK-056 Ver1.01...

  • Page 64: Commands For Ticket Mode

    ※You can find it whether the printer is on Ticket Mode or Standard Mode when you print self-test. 1)Ticket Mode 2)Standard Mode ABCD한글 ABCD한글 Direction1 Printing Direction Direction3 [Ticket Printing Format] [Reciept Printing Format] (Page Mode) (Line Mode) Model Rev. Page HMK-056 Ver1.01...

  • Page 65: 8-2) Commands

    Note that the value of x,y is String , not Decimal or Hex. For example, if you specify coordinates (430,1200), be aware that they are '0430' and '1200'. ESC T-command can be set to n=1 or 3. (Ex) FEEDING Model Rev. Page HMK-056 Ver1.01...

  • Page 66: Usb Communication Settings

    Prints 1 byte of data. When printing big data spool, use the following PrintPacket Value to increase the transfer Speed.  Parameters: data : 1 byte data (0~255)  Return : Print Normal : 1 Print Error Model Rev. Page HMK-056 Ver1.01...
  • Page 67  Return : Normal Output : 1 Output Error ※ Do not use functions other than those listed above as they are for debug. ※ For more information, download the sample program from our website. Model Rev. Page HMK-056 Ver1.01...

  • Page 68: 9-2) Cautions

    There won’t be an error during the receiving because it would only work through USB interface when receiving. ※ Windows Application Data Flow Chart Window Driver (Graphic) Window Application USB port Printer DLL Interface OCX Driver (Command, Character) Transmit Receive(Print Status Data) Model Rev. Page HMK-056 Ver1.01...

  • Page 69: Manual Update Records

    Date History Page Ver. 2020-07-30 Launched “New Version” 2020-07-31 Added the pinout number in the component overview 1.01 Modified the interface specification 2020-08-14 Modified the pinout number in the component overview 1.02 Model Rev. Page HMK-056 Ver1.01...
