Installation, Operation and Maintenance instruction

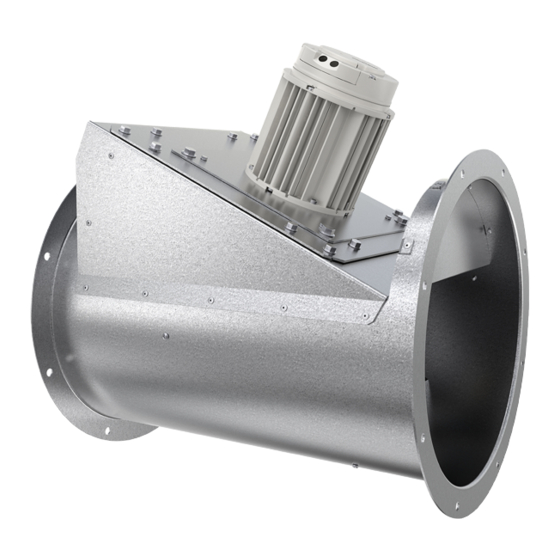

AxZent Thermo Centrifugal fan AC
AxZent Thermo Centrifugal fan EC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AxZent 400 and is the answer not in the manual?

Questions and answers

Summary of Contents for SystemAir AxZent 400

  • Page 1 Installation, Operation and Maintenance instruction AxZent Thermo Centrifugal fan AC AxZent Thermo Centrifugal fan EC...
  • Page 2: Table Of Contents

    Table of content 1 Introduction ............1 12.3.1 Wiring diagrams for speed controllers for EC motors....14 Product description ........1 12.3.2 Wiring diagrams for ON/OFF Intended use ..........1 controls for EC motors ....16 Document description........1 Product overview......... 1 13 Accessory overview ..........
  • Page 3: Introduction

    The procedures must be Intended use done by approved personnel only. Speak to Systemair for more information on how to install the The product is used for transportation of clean or contami- product in different installation locations.
  • Page 4: Name Plate

    DV: 4 pole, AC motor, 3–phase D2: 2 pole, AC motor, 3–phase D4: 4 pole, AC motor, 3–phase Use a mobile device to scan the scannable code and go to the Systemair documentation portal for more documentation and document translations.
  • Page 5: Safety

    • Always use spare parts from Systemair. • Sound levels exceeding 70 dB(A) may occur depending on model and size. Visit www.systemair.com for more de- tailed information about your product. • The product is not to be used by persons, including chil-...
  • Page 6: Transportation And Storage

    – To decrease vibrations transmitted from the product to • Do not move the product by the cables, terminal box, fan the duct system, Systemair recommends to install vi- impeller, protection grille, inlet cone or silencer. bration dampers, fast clamps or flexible connections.
  • Page 7: To Install The Product

    Install the product with accessories that decrease vibra- To install the product tions in the product and the duct system. Put the product in the correct position: If you install the product vertically, install mounting rings (A) against the ceiling and use flexible connec- Install the product with the motor up or to the sides.
  • Page 8: Electrical Connection

    If you install the product near a duct bend, do these Electrical connection steps to prevent vibrations, unwanted noise and de- creased air pressure: To do before the electrical Measure the distance (A) between the product and connection the duct bend. Make sure that the distance (A) is a minimum of 2.5 •...
  • Page 9: To Install Motor Protection For Ac Motors

    • Install the motor cables and the temperature monitor apart. value that is given on the name plate. • If the motor does not have temperature monitors, install a The commissioning report is found at www.systemair.com. motor protection switch. To do before the commissioning •...
  • Page 10: Operation

    EC motors must be set to ON/OFF via the control input. To stop the product via mains supply decreases the life time of the motor. Systemair recommends to install external speed controller for easy access to control the input signal.
  • Page 11: Maintenance

    • For information about spare parts, send an e-mail to Caution support@systemair.com. • Do not clean the product with a high- • For more information about spare parts, contact Systemair pressure washer. support. • Do not clean the product with steel •...
  • Page 12: Troubleshooting

    Troubleshooting Note: If you cannot find a solution to your problem in this section, speak to Systemair technical support. Problem Cause Solution The fan impeller is not correctly Speak to Systemair technical support. balanced. There is dirt on the fan impeller.
  • Page 13 This is not applicable for EC motors or 3–phase AC motors. There is blockage in the motor. Speak to Systemair technical support. Defective motor winding. If it is possible, measure the resistance to do a check of the motor winding.
  • Page 14: Disposal

    For warranty claims, send a written maintenance plan and product or the packaging of the product shows that this the commissioning report to Systemair. The warranty is only product is not domestic waste. The product must be recycled applicable for these conditions: at an approved disposal location for electrical and electronic •...
  • Page 15: Technical Data

    12.1 Technical data overview Max. temperature of transported air, °C Sound pressure, dB Refer to the data sheet in the online catalogue at www.systemair.com. IP class Voltage, current, frequency, enclosure Refer to the name plate. Refer to 1.5 Name plate page 2 for more information.
  • Page 16: Controllers For Ec Motors

    AxZent 400 AxZent 450 AxZent 500 AxZent 560 AxZent 630 Motor type 653.8 679.2 744.2 H, mm 637.5 662.9 727.7 722.5 748.4 808.4 12.3 Wiring diagrams The wires in the motor cables have these colours: Wire Colour +10V 0...10V/PWM Yellow Blue 12.3.1...
  • Page 17 EC-Basic EC-Basic 1/IN Vac 230V AC 2/IN Vac +10V 4/Out 0...10V 5/GND MTV–1/10 MTV 1/010 1/IN Vac 230V AC 2/IN Vac +10V 4/Out+ 0...10V 5/Out- S-5EC/FRQ MTP 10 +10V 0...10V EC-Vent optional IN/RPM TACH IN/10V +10V OUT/PWN 0...10V/PWM...
  • Page 18: Controls For Ec Motors

    12.3.2 Wiring diagrams for ON/OFF controls for EC motors CO2RT-R(-D) Supply +10V 24V AC Neutral 0...10V Common Relay NO Relay NC Din1 IR24–P +10V 24V AC or DC Neutral 0...10V Common Relay NO Relay NC Din1...
  • Page 19: Accessory Overview

    GFL: Counter flange EVH: Flexible connection MFA: Mounting foot MPR: Mounting ring for vertical installation through a 10. FSD: Spring vibration damper for horizontal installation roof Note: For more information about accessories, refer to www.systemair.com or speak to Systemair technical support.
  • Page 20: Eu Declaration Of Conformity

    Seehöfer Straße 45 97944 Boxberg Germany declare under our sole responsibility that the product Product designation Thermo fans — AxZent Type/Model AxZent 400–630 AxZent 400–630EC Identification Serial numbers dating from 2021 and onwards fulfils all relevant provisions of the Machinery directive 2006/42/EC...
  • Page 21: Ukca Declaration Of Conformity

    97944 Boxberg Germany declare under our sole responsibility that the product Product designation Thermo fans — AxZent Type/Model AxZent 400–630 AxZent 400–630EC Identification Serial numbers dating from 2021 and onwards fulfils all relevant provisions of the Supply of Machinery (Safety)
  • Page 22 © Copyright Systemair AB All rights reserved Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Original instructions 2022-03-15...
