Summary of Contents for Discount Car Stereo A20-GM3x

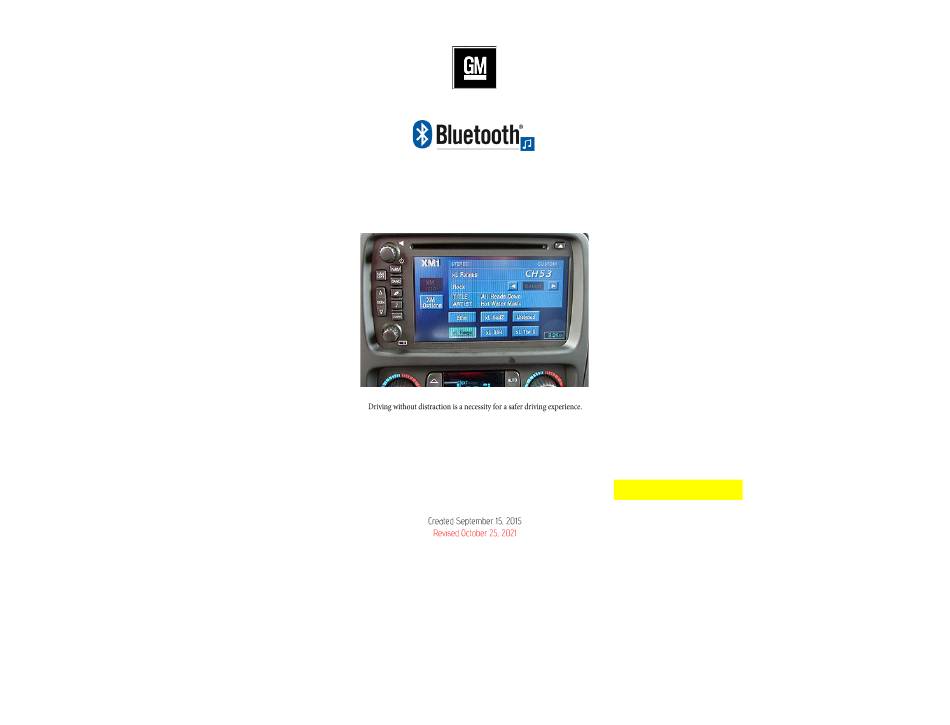

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2D-GM3x QUICK START MUSIC STREAMING INSTALLATION GUIDE FOR GM CLASS II RADIOS WITH XM TUNER MODULE...
-
Page 2: Installation
PRODUCT SAFETY & DISCLAIMER Installation READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY Warning: The A2D-GM3x connects at the XM Tuner module in remote • This installation guide is provided as a GENERAL installation guide, some vehicles vary and may require additional steps. - Page 3 Fig. 2 Delphi 16-pin plug 3. Connect factory 16-pin plug (See Fig. 2) removed from XM tuner module in step 2, to harness 16-pin connector (See Fig. 3) Fig. 3 16-pin connector 4. Connect harness 16-pin plug (See Fig. 2) to XM tuner connector Under no circumstances should red wire be connected to 12V constant vacated in step 2.
-
Page 4: Optional Remote Control
Pairing Optional remote control Pairing process varies among devices but basic steps are the same. This Remote control is not required for operation; however instead of fumbling audio process is done upon initial install and should not have to be repeated. device to change tracks etc., you simply press the familiar control buttons while also keeping eyes on the road. -
Page 5: Bluetooth Operation
Operation: Bluetooth operation Use wireless remote to perform the following functions on any iOS7.0 and higher or Android 4.4 and higher. Turn ignition and radio “ON” 2. Press “BAND” or “XM” button to enter XM mode 3. Launch smartphone or tablet streaming application. 4. - Page 6 Make Model XM Tuner Location Frequent ask questions and troubleshooting Buick Allure Left Rear Q-Panel My vehicle has a 6-CD changer radio (changer built-into radio), will Enclave Right Rear Q-Panel LaCrosse Behind Rear-Left Q-Panel (Trunk) this work? LeSabre Left Rear Q-Panel Irrespective of AM/FM radio;...
- Page 7 Email support@discountcarstereo.com © 1995-Oct-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
