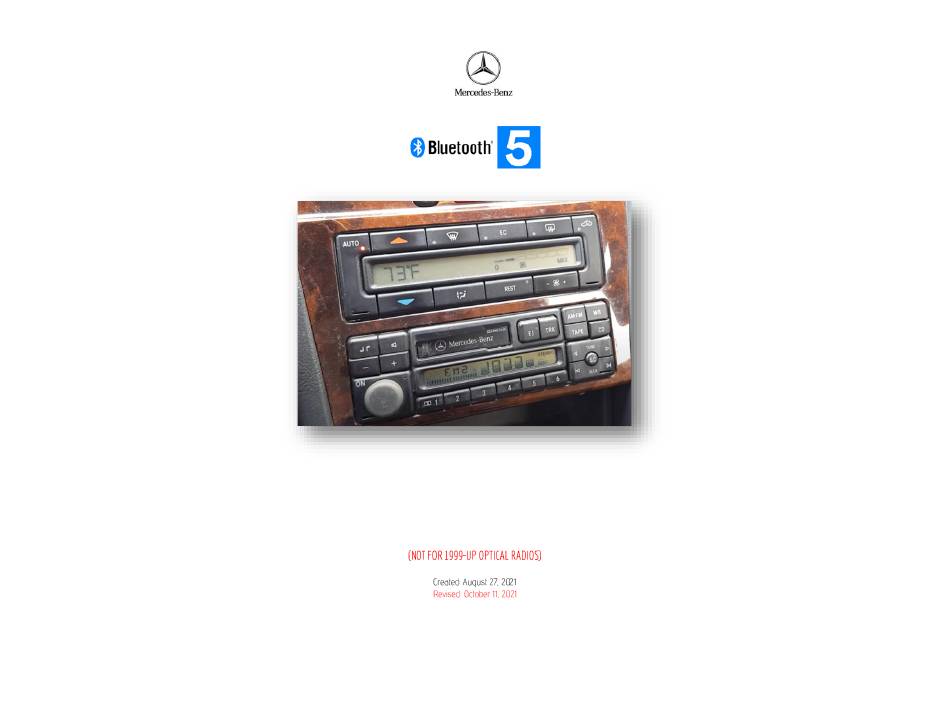

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-MBR QUICK START BLUETOOTH INSTALLATION GUIDE FOR SEELCT 1994-98 MERCEDES BENZ...
-
Page 2: Installation
Introduction The new A2DIY-MBR kit is compatible with virtually all Bluetooth phones, and sounds great whether using for mobile conversations or streaming music. Works in 1994-98 Mercedes Benz with CD changer controlling radios. Once installed, music streaming from internet music sites such as Pandora, Spotify, Apple music, audio books, GPS prompts and more and also make/receive phone calls if device supports it (HFP). - Page 3 Fig. 2 Fig. 5 If present, disconnect CD changer 10-pin plug (See Fig. 3) from radio Use clip to secure microphone to headliner or visor Route microphone cable (10 ft.) down side pillar, under dashboard and into radio cavity Connect microphone right angle plug to module “MIC” jack. (See Fig. Wind noise (Convertibles) will negatively affect phone audio.
- Page 4 Optional charging kit Fig. 7 Step drill bit Insert supplied 3ft. USB male terminal (See Fig. 7) through hole created in step 1 and connect to module USB port (See Fig. 9) Optional charging kit can be added to support BC1.2, QC2.0, QC3.0, PE1.1, PE2.0, FCP, SFCP fast charge protocols (Samsung, Huawei etc.).
-
Page 5: Bracket Mount
Insert male terminal through hole in bracket (See Fig. 13) and connect to USB port (See Fig. 9) Fig. 10 USB head Fig. 13 Snap USB head (See Fig. 10) to bracket until flush (See Fig. 14) Fig. 11 Flush mounted to dash Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. - Page 6 Media remote control Pairing: Ensure Bluetooth is enabled on your device (e.g., Smartphone/Tablet etc.) scan/search for available devices and select BT009 from list. Media remote can be paired with multiple devices but can only operate one at a time. Operation Once paired with smartphone/tablet etc.
-
Page 7: Bluetooth Operation
Bluetooth module pairing and connection Bluetooth operation This process must be carried out upon initial install after which the A2DIY-MBR will automatically reconnect with paired phone. Turn ignition and radio “ON” 2. Press CD button on radio. Go to smartphone settings and enable Bluetooth 3. - Page 8 CM2296 and CM2396 radios. Becker traffic pro radios requires our ends streaming resumes A2DIY-BKR A2DY-BKRCD 9. Can I pair or save more than one device to the A2DIY-MBR? 3. Does the A2DIY-MBR work on 1999+ Mercedes radios? YES; more than one device (slaves) can be paired however only one 1999+ Mercedes Audio 10, 20, 30, 50, Comand.
Need help?
Do you have a question about the A2DIY-MBR and is the answer not in the manual?
