Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
A2DIY-STS
QUICK START BLUETOOTH MODULE INSTALLATION GUIDE FOR 2005-11 CADILLCAC STS WITH XM MODULE (U2K)
Created November 19, 2019
Revised: February 26, 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the A2DIY-STS and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo A2DIY-STS

Summary of Contents for Discount Car Stereo A2DIY-STS

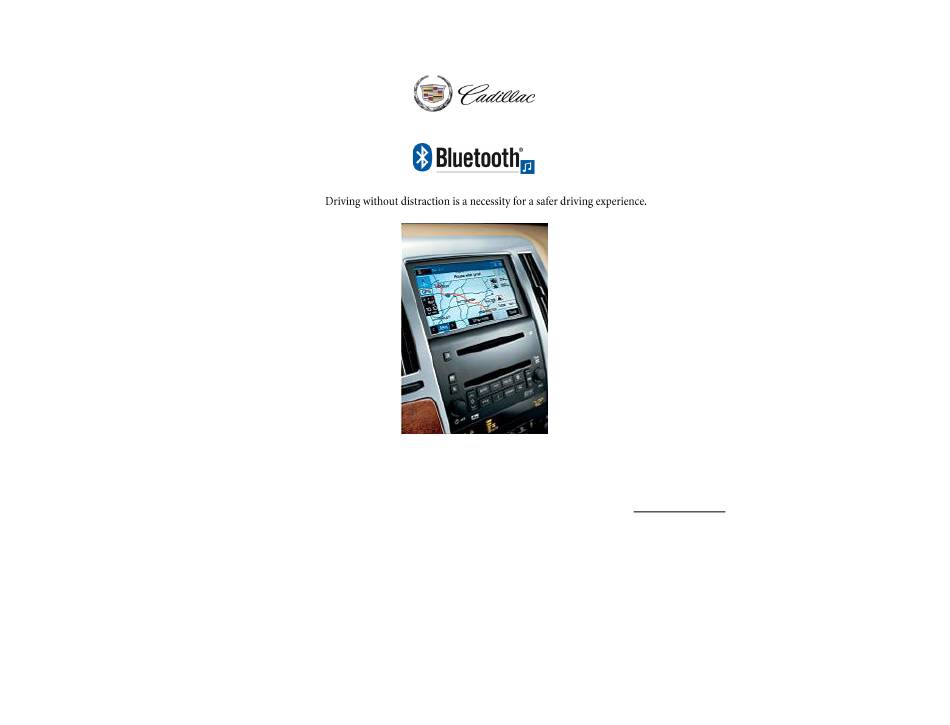

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-STS QUICK START BLUETOOTH MODULE INSTALLATION GUIDE FOR 2005-11 CADILLCAC STS WITH XM MODULE (U2K) Created November 19, 2019 Revised: February 26, 2022...

  • Page 2: Installation

    Fig. 1 2005-11 Cadillac STS owners eager to bring their smartphones and other digital media devices on the road will be pleased with our A2DIY-STS Bluetooth module. Remove 10mm crews securing radio to dash (See Fig. 2) This module works with virtually all Bluetooth phones and sounds great for (1) Mobile conversations, (2) music streaming and more.
  • Page 3 Fig. 3 Radio 16-pin connector Fig. 5 Disconnect factory 16-pin XM plug (See Fig. 4) from radio (See Fig. 3). 16-pin connector To disconnect, pull back BLUE locking tab, press BLACK tab, gasp and Connect harness 16-pin plug to radio chamber vacated in step 4 pull plug from radio.
  • Page 4 Fig.9 Module Fig. 7 Install microphone (See Fig. 10) to vehicles visor or headliner using included visor clip (See Fig. 11). Locate 12V accessory at vehicles cigar lighter, fuse box, ignition cluster etc.) Warning: Extension (Fig. 7) must be connected to a switched/accessory supply source, not constant battery supply.
  • Page 5 Insert supplied 3ft. USB male terminal (See Fig. 13) through hole Optional “Fast charge” kit created in step 1 and connect to charging port (See Fig. 14) Fig. 13 Optional charging kit can be added to support BC1.2, QC2.0, QC3.0, PE1.1, PE2.0, FCP, SFCP fast charge protocols (Samsung, Huawei etc.).

  • Page 6: Bracket Mount

    Fig. 18 Fig. 16 Snap USB head (See Fig. 18) to bracket until flush (See Fig. 19) Flush mounted to dash Tuck and secure any extra wire from moving parts and test operation Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. of module and mount USB support bracket (See Fig.

  • Page 7: Bluetooth Remote Control

    Operation: Bluetooth remote control Once paired to smart device (e.g., Phone, Tablet, etc.), users may perform the Pairing: Ensure Bluetooth is enabled on your device (e.g., Smartphone/Tablet following functions on iOS with Bluetooth 3.0 and later or Android 4.0 or later. etc.) The media button function applies to smartphone NOT the Jaguar radio.
  • Page 8 Module Pairing Operation Pairing varies among devices but basic steps are the same. This process is done Turn ignition and radio “ON” upon initial install and will not have to be repeated. 2. Press “BAND” or “XM” button on radio. 3.
  • Page 9 Turn radio “ON”, press “BAND” button repeatedly to cycle through AM/FM/CD/XM. If only AM/FM/CD is displayed, vehicle is NOT © 1995-Feb-22 Discount Car Stereo, Inc. All rights reserved. Information in this document is compatible. Navigation radios: if XM softkey is “grayed out”, vehicle subject to change without notice.
