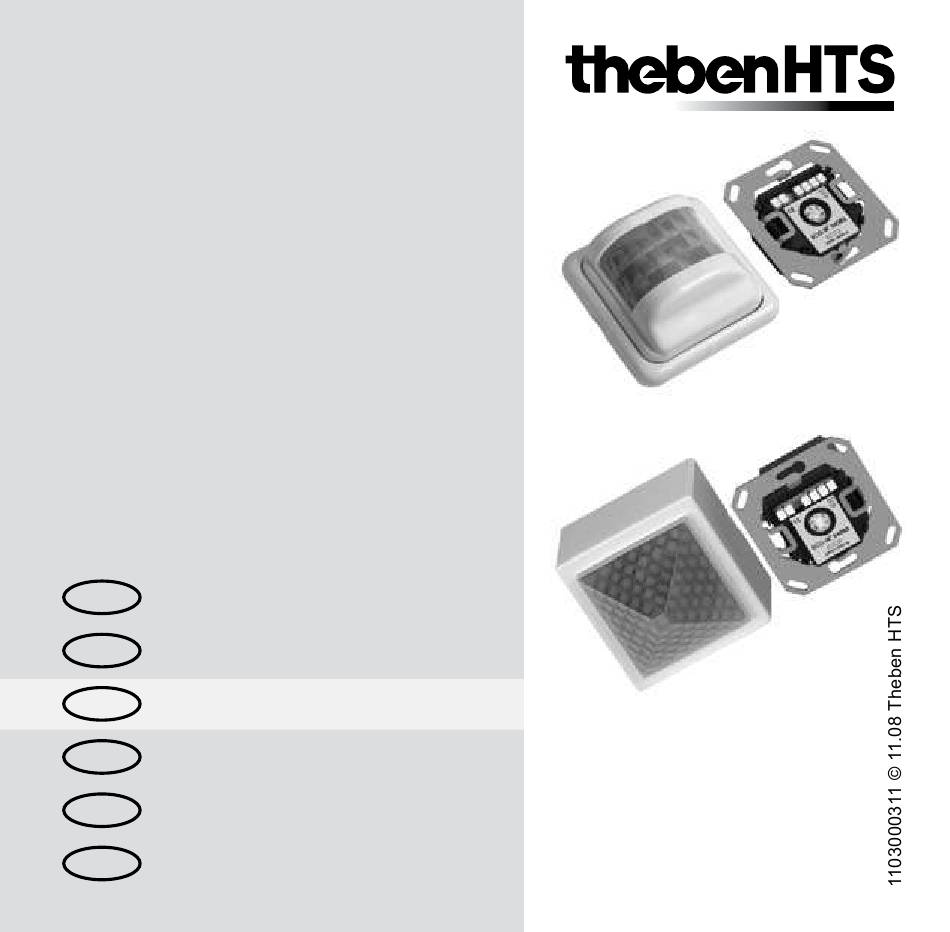

- Page 1 Presence detector ECO-IR 180A ECO-IR 360A Art. Nr. 202 0 050 Art. Nr. 202 0 000 Bedienungsanleitung Notice d´utilisation Installation manual Manual de instrucciones 62 Istruzioni per l'uso Gebruikershandleiding 102...
-
Page 2: Table Of Contents
English Installation manual Presence detector ECO-IR 180A ECO-IR 360A Table of contents 1. Safety ..........43 2. -
Page 3: Safety
Thank you for choosing a Theben HTS presence detector and putting your trust in us. 1. Safety DANGER ! Any work on electrical systems must exclusively be carried out by qualified electricians or instructed persons under the direction and supervision of a... -
Page 4: Function And Performance Characteristics
2. Function and performance characteristics 2.1 Presence detection High-sensitivity PIR sensors and an intelligent lens system provide complete coverage. 2.2 Integrated daylight measurement Measures the exact amount of daylight independently of the artificial lighting conditions. The measurement is performed in the viewing direction of the device. Delayed response to brightness changes to prevent unnecessary ac- tivation/deactivation. - Page 5 When using suspended lighting, we recommend that you integrate the de- tector directly in the lamps or provide a sufficient lateral clearance. When using suspended lighting, note that the detection range may be shaded. 2.4 Switching contact «HVAC» A potential free relay connects loads up to max. 100 W. The loads are only connected if a person is detected, independent of the incident daylight.
-
Page 6: Detection Range
Walking persons 2,2m 8,0m x 4,0m approx. 8m radial distance Due to the horizontal orientation of the ECO-IR 180A, the detection range is very large. The sensitivity decreases by increasing distance. 3.2 Detection Range ECO-IR 360A for ceiling mounting The ideal mounting height is 2,0 - 3,5m. - Page 7 ECO-IR 180A: ECO-IR 360A: 2,2 m...
-
Page 8: Mounting And Connecting The Device
4. Mounting and connecting the device 4.1 Type of mounting Both ECO-IR models must be mounted in housings (surface-mounted or con- cealed installation, single housing). Suitable hollow-wall housings must be provided for mounting the devices in suspended ceilings. 4.2 Preparations First pull out the left and right-hand safety locks up to the limit stop using a screwdriver to separate the sensor head from the power section. - Page 9 4.3 Connecting the ECO-IR Connect the power section of the ECO-IR 540B2 as shown in the diagram: ECO-IR 540B2 ECO-IR 540B2 ECO-IR 540B2 B1 B2 B1 B2 B1 B2 HVAC HVAC All of the ECO-IR units connected in parallel must be con- nected to the same mains phase.
-
Page 10: Start-Up
. Start-up .1 Settings Set the unit as shown on the rear of the disassembled sensor head. Note the setting guidelines in the following tables for defining the default settings. Switch-off delay time «HVAC» Set the desired switch-off delay time for the „HVAC“ switching contact on the potentiometer. - Page 11 Switch-off time delay «Light» Set the desired minimum switch-off delay time for the «Light» switching contact on the potentiometer. ● Transfer zones approx. 5min. ● Working areas approx. 10min. The setting corresponds to the minimum value. The effective switch-off de- lay time varies between the set value and the maximum value of 15 min. (self-learning effect).
- Page 12 .3 Behaviour on switching on ● After you have defined the settings, connect the upper part to the power section. Ensure that the labelling is aligned on both parts. ● Each time the sensor head is attached to the power section or after the power supply is connected, a startup phase (90 sec.) followed by a ser- vice phase (10 min.) is initiated on the sensor.
- Page 13 ● The service phase is completed automatically after 10 minutes. ● Repeat the setting procedure if it is necessary to modify one of the three variables. ● Push the safety lock inwards as far as possible after the test (between the sensor head and the power section).
-
Page 14: Technical Specifications
6. Technical specifications Sensor module ECO-IR 180A Detection range horizontal 180º Recommended mounting height ca. 1,6m - 2,2m Maximum range < 10m Daylight measurement ca. 50 - 1600Lux Light measurement deactivated „on“ Switch-off delay time for light 2min. - 15min. Switch-off delay time for presence / HVAC 10min. - Page 15 Size of concealed housing Size 1, (NIS, PMI) Ambient temperature 0º to 50º C Degree of protection IP 40 Article numbers ECO-IR 180A 202 0 050 ECO-IR 360A 202 0 000 Surface frame ECO-IR 180 907 0 511 Surface frame ECO-IR 360...
-
Page 16: Warranty Declaration
Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a defect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●... -
Page 17: Troubleshooting
8. Troubleshooting Fault Cause Remedy Lighting on after Both outputs are closed for 90 Wait for 90 s. The device then the detector is s after the detector has been responds immediately to changes in connected. connected (test phase) brightness for 10 minutes. Immediate re- The device is in service phase After the service phase, the re-... - Page 18 Dimensions ECO-IR 180A Subject to change without prior notice. Errors and omissions excepted.
- Page 19 Dimensions ECO-IR 360A 66,5 37,5 22 35,5 84,5 Declaration of CE conformity This device complies with the protection regulations of the EMC directive 2004/108/EC and of the Low Voltage directive 2006/95/EC.
- Page 20 Veuillez compulser les adresses pour des pays supplémentaires sur www.theben.de Please find the contact addresses for additional countries on www.theben.de Las direcciones de contacto de otros países las encontrará en www.theben.de Gli indirizzi per ulteriori paesi sono disponibili su www.theben.de...
