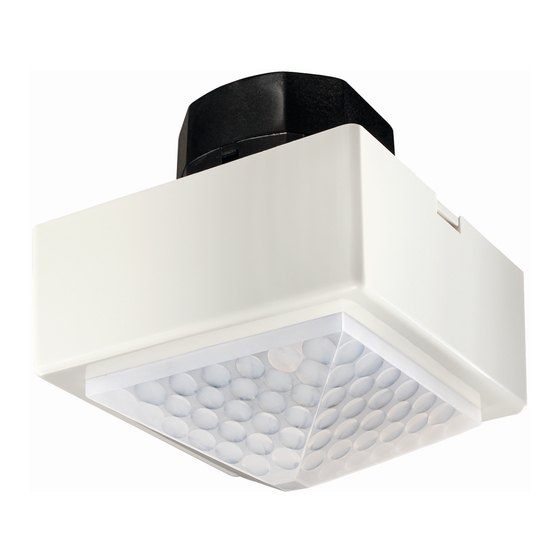

Presence detector
ECO-IR 180EIB-AC
ECO-IR 360EIB-AC
ECO-IR DUAL-EIB
Art. Nr. 202 9 250
Art. Nr. 202 9 201
Art. Nr. 202 9 200
Bedienungsanleitung
D
Notice d´utilisation
F
Installation manual
GB
Manual de instrucciones
E
Istruzioni per l'uso
I
Gebruikershandleiding
NL
Bruksanvisning
S
Bruksanvisning
N
Käyttöohje
FIN
Betjeningsvejledning
DK
2
22
42
62
82
102
122
142
162
182
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Theben ECO-IR 180EIB-AC
Summary of Contents for Theben ECO-IR 180EIB-AC
- Page 1 Presence detector ECO-IR 180EIB-AC ECO-IR 360EIB-AC ECO-IR DUAL-EIB Art. Nr. 202 9 250 Art. Nr. 202 9 201 Art. Nr. 202 9 200 Bedienungsanleitung Notice d´utilisation Installation manual Manual de instrucciones Istruzioni per l′uso Gebruikershandleiding Bruksanvisning Bruksanvisning Käyttöohje Betjeningsvejledning...
-
Page 2: Table Of Contents
Installation manual English Presence detector ECO-IR 180EIB-AC ECO-IR 360EIB-AC ECO-IR DUAL-EIB Table of contents 1. Safety ..........43 2. -
Page 3: Safety
Thank you for purchasing an Theben HTS presence detector and putting your trust in us. 1. Safety Familiarise yourself with the presence detector before assembly and start- up by reading this operating instructions. IMPORTANT! The unit requires no maintenance. Opening the unit or inserting foreign bodies into it will invalidate the warranty. -
Page 4: Function And Performance Features
2. Function and performance features 2.1 Presence detection Highly sensitive PIR sensors and a nifty lens system provide for continuous coverage of the room to detect the presence of people (presence detection). 2.2 Real daylight measurement Daylight measurement allows you to control lighting independently of artificial lighting. - Page 5 ECO-IR 180EIB-AC Presence detection Daylight measurement Artificial light HVAC control Manual lighting control Incident daylight ECO-IR 360EIB-AC Presence detection Daylight measurement Artificial light ...
-
Page 6: Location
9,0m x 9,0m ± 0,5m 3,5m 8,0m x 8,0m 10m x 10m ± 1,0m 4,0m 11m x 11m ± 1,0m 3.2 ECO-IR 180EIB-AC The detection range extends 180° horizontally and 55° vertically. The recom- mended installation height is 2.2m. M'height Seated persons Walking persons... - Page 7 ECO-IR 360EIB-AC, ECO-IR DUAL-EIB: ECO-IR 180EIB-AC: 2,2 m...
- Page 8 3.3 Light measurement ● The ECO-IR presence detector is designed for use with fluorescent lamps. It is particularly suitable for switching electronic ballasts. Incande- scent or halogen lamps may interfere with the operation of the detector. ● With indirect lighting, ensure that the light from these lamps is not direc- ted at the detector, as this would affect the daylight measurement.
-
Page 9: Mounting
ECO-IR DUAL-EIB „A Window” must face towards the window side (according to the Lux value for LuxA or LuxB). ● When using a wall-mounted ECO-IR 180EIB-AC, the labelling must be legible (plug on top). 4.2 Dismantling / Post-adjustment ●... -
Page 10: Start-Up Procedure
5. Start-up procedure 5.1 Remote Parameter Setting Via ETS All settings are made via the ETS (see „KNX/EIB Product Database - Outli- ne“). They can be changed at any time. 5.2 Local Settings The local settings of the potentiometers and DIP-switches are only active, if they are enabled on the ETS. - Page 11 Potentiometer: ● Default setting of potentiometer is in middle position. 5.3 „Run“ mode (default setting) In „run“ mode the detector runs through three phases, which are displayed by a LED behind the sensor lens, whenever it is plugged in: 1. Start-up phase (90 sec.) 2.
- Page 12 2. Service phase - LED on when dark, LED off when alight In the service phase the detector has an immediate reaction to brightness change in order to quickly check the set daylight switching level (Lux). ● If the room is dimmed (e.g. by closing blinds), the lighting switches on when it reaches the switching level (LED on).
-
Page 13: Test» Mode
6. «Test» mode Test setting should be set locally or via ETS ● The «test» mode is used to check the type of operation, presence detection and ensure multiple detectors are correctly coupled. ● In case of parallel connection all detectors must be set to «test». ●... - Page 14 2. Walking test – LED on when motion is detected ● The walking test begins after the identification phase. It allows the user to check presence detection and parallel connection of multiple detectors. ● The „Light“ and „HVAC“ switch-off delays are shortened to approx. 10 or 20 seconds.
-
Page 15: Technical Specifications
120° Mounting height (Mh) 2,0 - 3,5m Maximum range 8 x 8m (Mh: 2,5m) 10 x 10m (Mh: 3,5m) Sensor module ECO-IR 180EIB-AC Detection range horizontal 180° Mounting height (Mh) 1,6m - 2,2m Maximum range < 10m Parameter settings... - Page 16 Bus coupling unit Theben HTS KNX/EIB bus coupling unit Connection Depth 33mm Diameter 55mm Mounting plate 70 x 70mm Ambient temperature 0°C - 45°C Size of concealed housing Size 1 (NIS, PMI) Article numbers ECO-IR 180EIB-AC Sensor module 202 9 250...
-
Page 17: Warranty Declaration
Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a de- fect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●... -
Page 18: Troubleshooting
9. Troubleshooting Fault Cause Remedy LED blinks fast No or wrong application Program correct application Lighting on after Both outputs are closed for 90 Wait for 90 s. The device then the detector is s after the detector has been responds immediately to changes in connected. - Page 19 Dimensions ECO-IR 180EIB-AC Dimensions ECO-IR 360EIB-AC Dimensions ECO-IR DUAL-EIB 37,5 66,5 35,5 84,5 CE Declaration of Conformity Product complies with the requirements of the directive 2004/108/EC. Subject to change without prior notice. Errors and omissions excepted.
- Page 20 Fax +49 (0) 74 74 692 - 207 hotline@theben.de Switzerland Theben HTS AG Im Langhag 11, CH - 8307 Effretikon Tel. +41 (0)52 355 17 00 Fax +41 (0)52 355 17 01 www.theben-hts.ch Please find the contact addresses for additional countries on www.theben.de...
