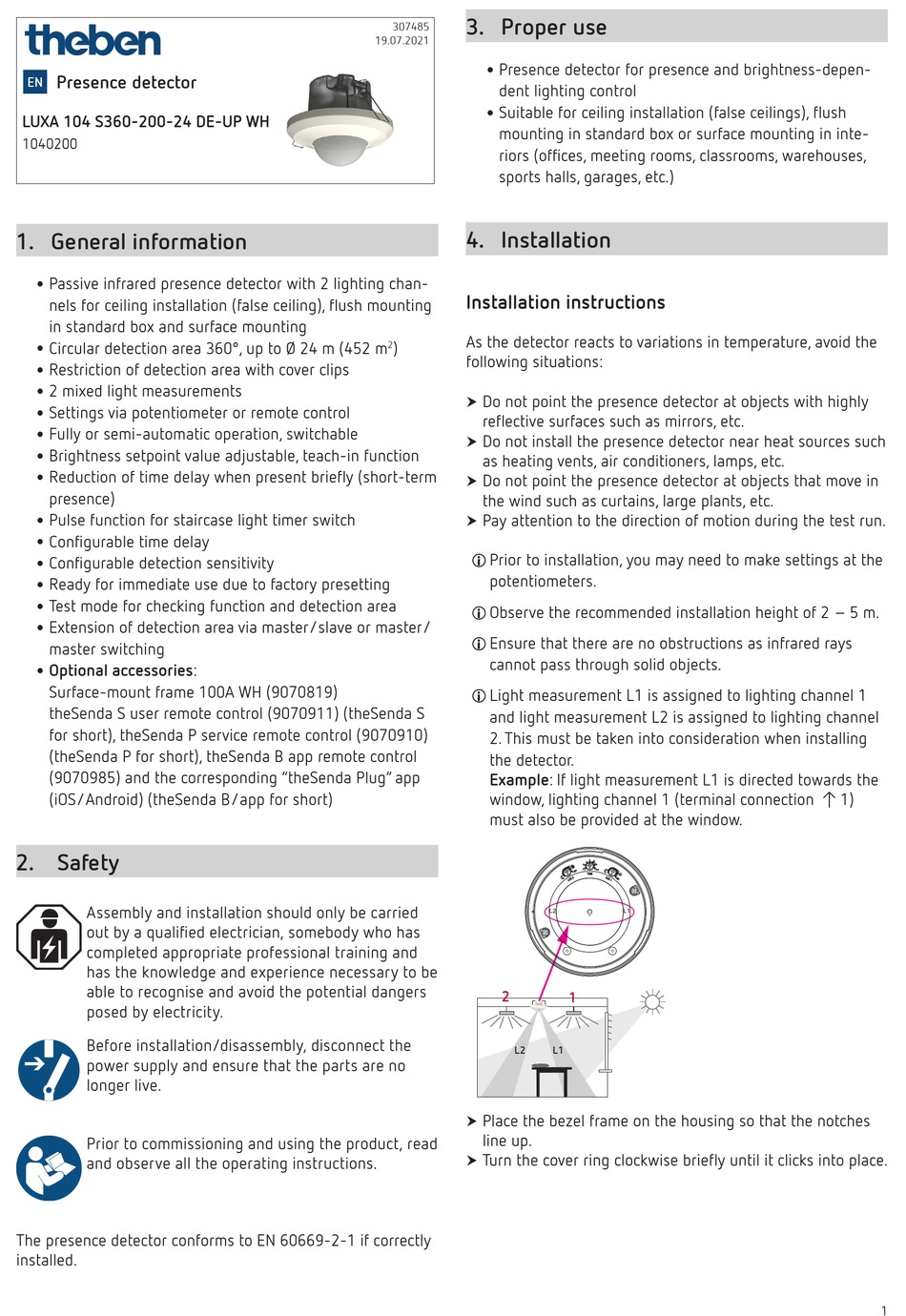

Presence detector
EN
LUXA 104 S360-200-24 DE-UP WH
1040200
1. General information
•
Passive infrared presence detector with 2 lighting chan-
nels for ceiling installation (false ceiling), flush mounting
in standard box and surface mounting
•
Circular detection area 360°, up to Ø 24 m (452 m
•
Restriction of detection area with cover clips
•
2 mixed light measurements
•
Settings via potentiometer or remote control
•
Fully or semi-automatic operation, switchable
•
Brightness setpoint value adjustable, teach-in function
•
Reduction of time delay when present briefly (short-term
presence)
•
Pulse function for staircase light timer switch
•
Configurable time delay
•
Configurable detection sensitivity
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Extension of detection area via master/slave or master/
master switching
•
Optional accessories:
Surface-mount frame 100A WH (9070819)
theSenda S user remote control (9070911) (theSenda S
for short), theSenda P service remote control (9070910)
(theSenda P for short), theSenda B app remote control
(9070985) and the corresponding "theSenda Plug" app
(iOS/Android) (theSenda B/app for short)
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
and observe all the operating instructions.
The presence detector conforms to EN 60669-2-1 if correctly
installed.
3. Proper use
307485
19.07.2021
•
Presence detector for presence and brightness-depen-
dent lighting control
•
Suitable for ceiling installation (false ceilings), flush
mounting in standard box or surface mounting in inte-
riors (offices, meeting rooms, classrooms, warehouses,
sports halls, garages, etc.)
4. Installation
Installation instructions
As the detector reacts to variations in temperature, avoid the
)
2
following situations:
Do not point the presence detector at objects with highly
†
reflective surfaces such as mirrors, etc.
Do not install the presence detector near heat sources such
†
as heating vents, air conditioners, lamps, etc.
Do not point the presence detector at objects that move in
†
the wind such as curtains, large plants, etc.
Pay attention to the direction of motion during the test run.
†
L Prior to installation, you may need to make settings at the
potentiometers.
L Observe the recommended installation height of 2 – 5 m.
L Ensure that there are no obstructions as infrared rays
cannot pass through solid objects.
L Light measurement L1 is assigned to lighting channel 1
and light measurement L2 is assigned to lighting channel
2. This must be taken into consideration when installing
the detector.
Example: If light measurement L1 is directed towards the
window, lighting channel 1 (terminal connection ↑1)
must also be provided at the window.
2
L2
Place the bezel frame on the housing so that the notches
†
line up.
Turn the cover ring clockwise briefly until it clicks into place.
†
L2 L1
1
L1
1
