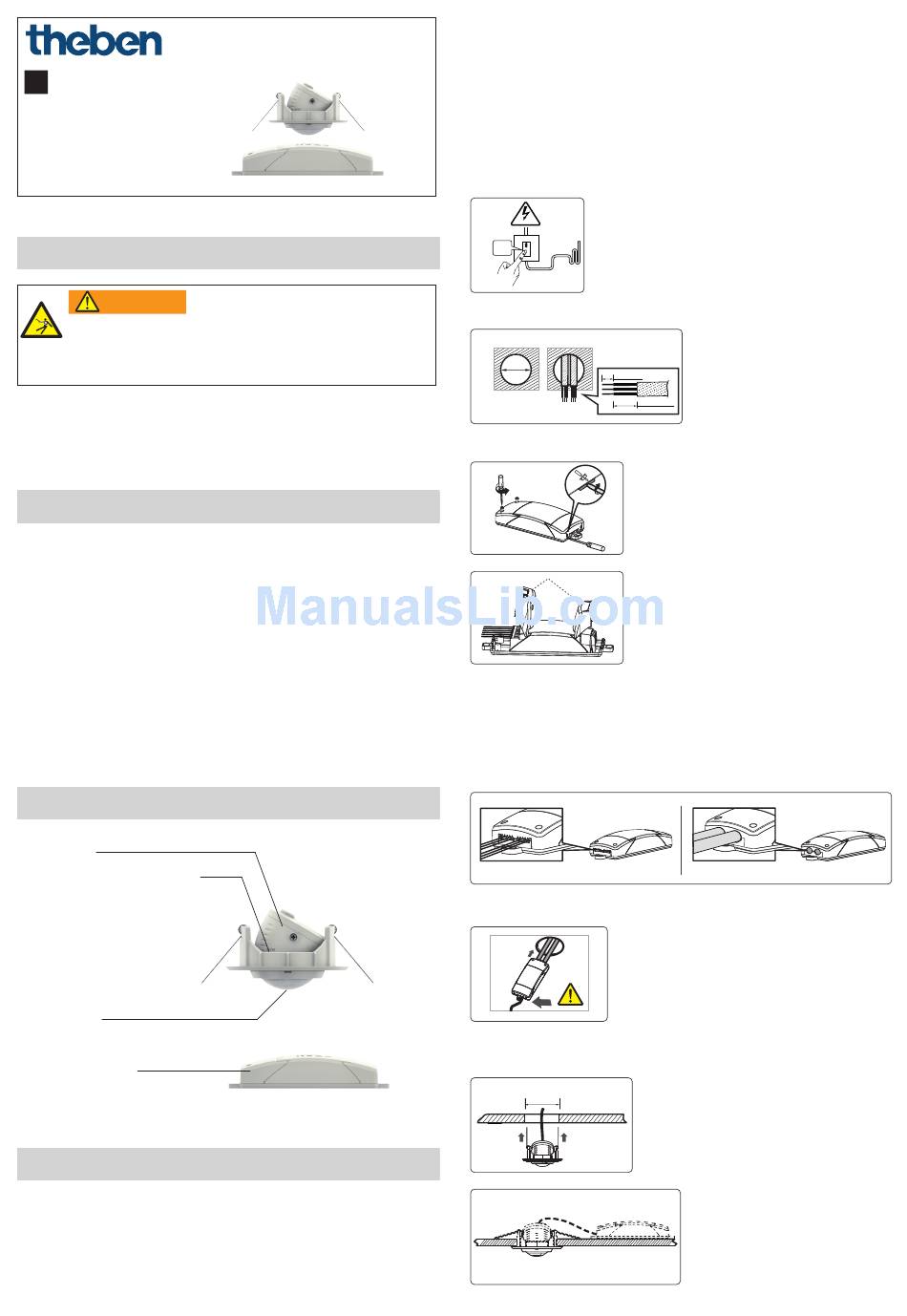

Motion detector
EN
LUXA 103-100 DE WH
1030012
LUXA 103-101 DE WH
1030013
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
The device conforms with EN 60669-2-1 if installed
correctly
2. Proper use
Motion detector for automatic lighting control dependent
on presence and brightness; LUXA 103-101 DE: suitable
for automatic lighting and HVAC control
Suitable for ceiling installation (false ceilings) indoors
Suitable for toilets, small rooms, workplaces, offices, etc.
Disposal
Dispose of the device in an environmentally sound manner
¾
(electronic waste)

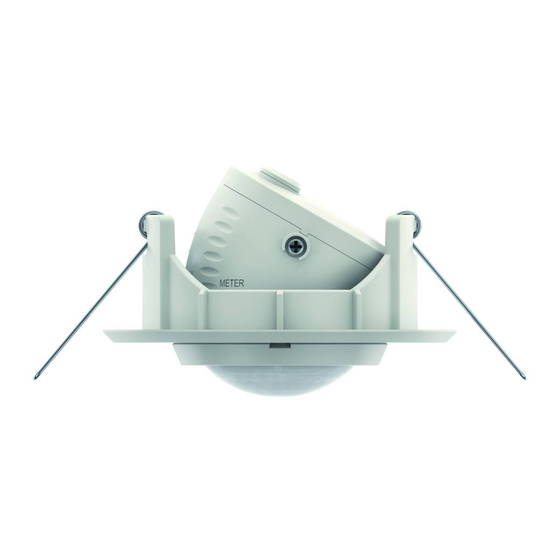

3. Device description
Sensor unit
3 potentiometers for setting
time delay (TIME), bright-
ness value (LUX) and detec-
tion area (metres);
additional setting of HVAC
time (TIME 2) in the case of
LUXA 103-101 DE
red LED
Power supply unit
4. Installation and connection
!
Secure device with an upstream type C circuit breaker
(EN 60898-1) with a maximum of 10 A.
!
Secure device with an upstream type C circuit breaker
(EN 60898-1) with a maximum of 6 A (HVAC channel 2).
Installing the motion detector
307343
L Installation height: 2 – 3 m
L Cable length: 100 cm
L Motion detector requires clear line of sight to people
Disconnect power source
¾
230V
0FF
Create a ceiling opening of Ø 65 mm
¾
Ø
=65
Screw open and flip open the power supply unit
¾
Connect power supply unit and sensor unit according to the
¾
wiring diagram
L Recesses in the power supply unit can be adjusted to the
cable diameter (min. Ø 3 - max. Ø 12.5 mm)
Ø 3 - Ø 6 mm
!
ATTENTION: the network connector must be firmly in place
Push the power supply unit through the ceiling opening
¾
and attach the sensor with tensioned springs in the ceiling
Ø
= 6 5
Connect motion detector to power supply
¾
6 - 8 m m
5 0 - 6 0 m m
Max. Ø 12.5 mm
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUXA 103-100 DE WH and is the answer not in the manual?

Questions and answers

Summary of Contents for Theben LUXA 103-100 DE WH

  • Page 1 Installing the motion detector 307343 L Installation height: 2 – 3 m Motion detector L Cable length: 100 cm LUXA 103-100 DE WH L Motion detector requires clear line of sight to people 1030012 LUXA 103-101 DE WH Disconnect power source 1030013 †...
  • Page 2 L recommended installation height: 2.5 m 5. Walking test The device need 60 seconds to warm up. The walking test is used to test the detection area. Set the time delay potentiometer (TIME 1) to Test. The † ¾ motion detector only reacts to movements, brightness Connecting the motion detector measurement is switched off.
  • Page 3 Setting the time delay (TIME 1) When the light is off Briefly press button once † ¾ If the motion detector detects no further movement, it swit- ▻ The light is on for the time set on the potentiometer; ches off after the set time delay. then the detector goes into automatic mode If you want to change the preset time Set the potentiometer to the desired time (5 s - 30 min).
  • Page 4 8. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Tel. +49 7474 692-0 Fax +49 7474 692-150 Hotline Tel. +49 7474 692-369 hotline@theben.de Addresses, telephone numbers etc. www.theben.de...
