Motion detector
EN

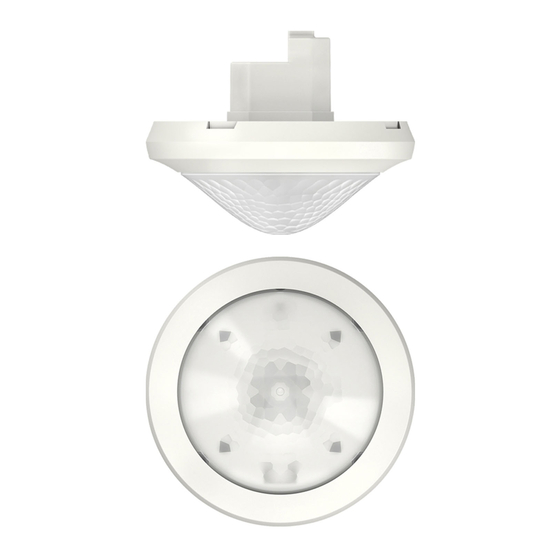

theMova S360-101 DE WH
1030565
theMova S360-101 DE GR
1030566
theMova S360-101 AP WH
1030555
theMova S360-101 AP GR
1030556
1. Product characteristics
•
Passive infra-red motion detector for ceiling installation
•
Circular detection area 360°, up to Ø 9 m (64 m
•
Automatic motion and brightness-dependent control for
lighting and HVAC
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Channel A light: relay, 230 V
•
Operation as fully automatic device
•
Brightness switching value configurable, teach-in
function
•
Pulse function for staircase light time switch
•
Channel H, presence: relay, floating e.g. for HVAC control
•
Time delay configurable
•
Detection sensitivity configurable
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Installation in false ceilings with springs, type DE
•
Surface mount on ceiling, type AP
•
User remote control „theSenda S" (option)
•
Management remote control „SendoPro" (optional)
•
Service remote control „theSendaP" (option)
2. Safety
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out by a pro-
fessional electrician!
•
Work on electrical systems may only be carried out by
electricians or by instructed persons under the leader-
ship and supervision of an electrician in accordance with
the technical regulations applying to electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
or penetrated with any objects the guarantee lapses.
3. Intended use
307067
The motion detector is intended for interior installation. The
motion detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The motion detector is primarily used in passage ways such
as corridors, stairs, toilets, basements and garages as well
as in homes for easy and energy-efficient control of lighting
plus HVAC. The switch contact „light" switches lighting on with
presence and insufficient brightness, and off with absence.
The „Presence" switch contact controls heating, ventilation
and air conditioning systems. The contact closes when people
are present.
)
2
Functional description


 Mixed light measurement
 Motion detection
 Artificial light
 Incident daylight
Channel A light
Switching response is controlled by presence and brightness.
The switch contact for channel A light closes during darkness
and when someone is present. It opens with a delay once the
room is vacated after the set time delay.
Time delay
The time delay enables delayed switching off of lighting after
the room is vacated. The time delay is adjustable in a range of
10 s to 60 min.
Fully automatic
Lighting control of the motion detector operates fully auto-
matically for increased comfort. In „fully automatic" the lights
switch on and off automatically.
Pulse function
Time delay can be set to pulse for controlling existing stair-
case light timer switch. To do so, the light output produces
every 10 seconds a pulse of 0.5 seconds duration if people
are present or it is dark.



