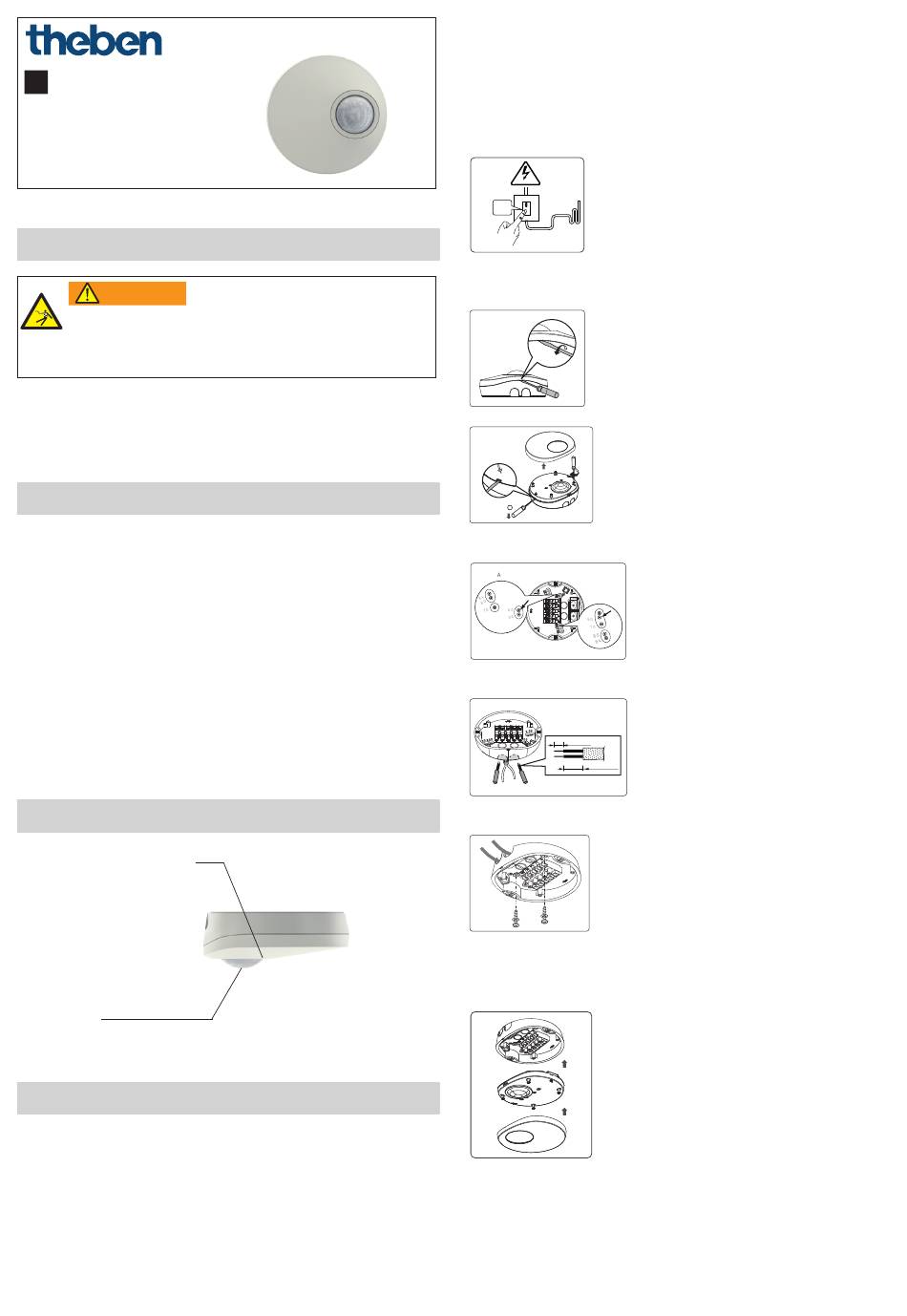

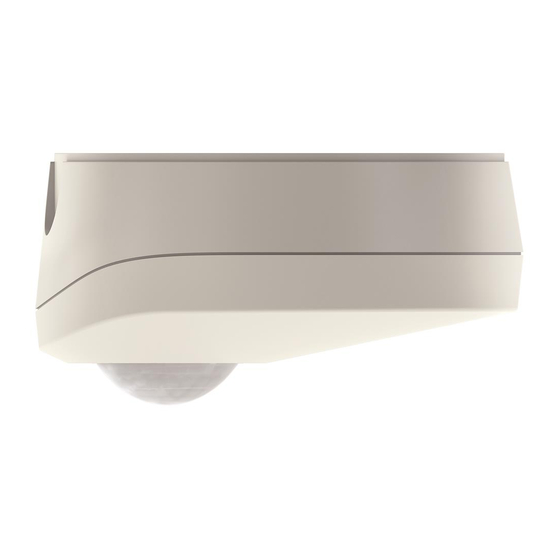

Motion detector
EN
LUXA 103-100 AP WH
1030022
LUXA 103-101 AP WH
1030023
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
The device conforms with EN 60669-2-1 if installed
correctly
2. Proper use
Motion detector for automatic lighting control dependent
on presence and brightness (LUXA 103-100 AP); LUXA
103-101 AP: suitable for automatic lighting and HVAC
control (HVAC switches on regardless of brightness)
Suitable for ceiling installation indoors with back boxes
Suitable for toilets, small rooms, workplaces, offices, etc.
Disposal
Dispose of the device in an environmentally sound manner
¾
(electronic waste)
3. Device description
3 potentiometers for setting
time delay (TIME), bright-
ness value (LUX) and detec-
tion area (METRES) (under
the cover);
additional setting of HVAC
time (TIME 2) in the case of
LUXA 103-101 AP
red LED
4. Installation and connection
!
Secure device with an upstream type C circuit breaker (EN
60898-1) with a maximum of 10 A (channel 1)
!
Secure device with an upstream type C circuit breaker (EN
60898-1) with a maximum of 6 A (HVAC channel 2)
Installing the motion detector
307344
L Installation height: 2 – 3 m
L Motion detector requires clear line of sight to people
Disconnect power source
¾
230V
0FF
Carefully lift the outer cover with a screwdriver and
¾
unscrew the upper housing part
2
Observe the break-outs for flush-mounting socket
¾
¾Strip cable to 6 – 8 mm
N
L
L
D1
D2
Make marks for the holes and drill the holes
¾
Fix the base to the ceiling, connect the individual wires to
¾
the appropriate terminal and tighten the screws
Screw on the housing
¾
Make settings at the potentiometers
¾
Put on the cover and close catch mechanism
¾
Connect motion detector to power supply
¾
B
5 6
6
- 8 mm
30 - 35mm
1
