Summary of Contents for Theben ECO-IR DUAL-C NT

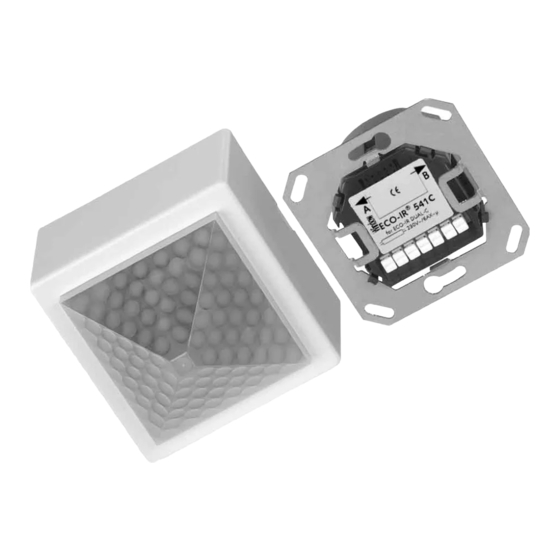

- Page 1 Presence detector ECO-IR DUAL-C NT Art. Nr. 202 0 401 Bedienungsanleitung Notice d´utilisation Installation manual Manual de instrucciones 62 Istruzioni per l'uso Gebruikershandleiding 102...
-
Page 2: Table Of Contents
Installation manual Presence detector ECO-IR DUAL-C NT Table of contents 1. Safety ..........43 2. -
Page 3: Safety
Thank you for purchasing an Theben HTS presence detector and putting your trust in us. 1. Safety DANGER ! Any work on electrical systems must exclusively be carried out by qualified electricians or instructed persons under the direction and supervision of a... -
Page 4: Function And Performance Characteristics
(A = window zone, B = inner zone) and compare them to the preset brightness thresholds. Two relays serve as switching outputs. ECO-IR DUAL-C NT is used pre- ferably in large rooms in which several lighting groups must be switched after different brightness values. -
Page 5: Location / Installation
The ideal mounting height is 2,0 - 3,5m. The sensitivity of the detector decreases with increasing mounting height. In order to ensure proper detection of persons, the ECO-IR DUAL-C NT requires an unobstructed “view” of the persons. Office equipment, plants, suspended lamps etc. - Page 6 Detection range (mounting height 3,0m) seated persons walking persons...
- Page 7 .2 Light measurement The ECO-IR DUAL-C NT is designed for use with fluorescent lamps. It ist particularly suitable for switching electronic ballasts. Incandescent or halo- gen lamps may interfere with the operation of the detector. With indirect lighting, ensure that the...
- Page 8 . Single Unit Operation The ECO-IR DUAL-C NT is configured as a «Master AB» and thus is able to control two lighting groups. To get a «Master AB», the corresponding code key has to be inserted into the power module ECO-IR 541C. Stuck the corre-...
-
Page 9: Start-Up
4. Start-up The detectors are supplied ready for operation with a factory setting of stan- dard values. QuickSet plus service remote control for starting-up is optional- ly available, which allows to set all potentiometer values from a distance. 4.1 Settings for switching contacts A, B «Light» Potentiometer ... - Page 10 For ease of setting up, we recommend the service remote control QuickSet plus. Switch-off delay time ● Transfer areas approx. 5min. ● Working areas approx. 10min. ● In the range between 2 - 15min the switch-off delay varies according to its self-learning behavior.
- Page 11 4. Behaviour on switching on Whenever the sensor module is plugged onto the power module or the unit is energised, the detector goes through tree phases which are indicated by an LED. Fast blinking (4x per second) means the code key is not recongnized.
-
Page 12: Additional Wiring Examples
. Additional wiring examples .1 Parallel circuit operation with two detectors: Master A - Master B Two detectors are required for the desired room size. ● The coding of the detector («Master A» or «Master B») is set by means of a code key on the power modules ●... - Page 13 .2 Parallel circuit operation with more than two detectors: Master A - Master B - Slave More than two detectors are required. Two Masters and one ore more Slaves are connected. ● The coding of the detector («Master A», «Master B» or «Slave») is set by means of a code key on the power modules ●...
-
Page 14: Test Mode
6. Test mode The test mode serves to check the presence detection and the wiring (Master-Slave parallel circuit operation). 6.1 Setting the test mode with DIP-Switch ● Set DIP switch to «Test» (on all detectors in parallel circuit operation). 1. Start-up phase (30sec) ●... -
Page 15: Technical Specifications
7. Technical specifications Sensor module ECO-IR DUAL-C NT Detection range: horizontal 360° vertical 120° Recomm. mounting height (Mh) 2,0m - 3,5m Maximum range 8 x 8m (Mh. 2,5m) 10 x 10m (Mh. 3,5m) True daylight measurement approx. 10 - 1500Lux Light measurement deactivated „on“... - Page 16 (for flush-mounting) Ambient temperature 0° - 50°C Degree of protection IP 40 Article numbers ECO-IR DUAL-C NT 202 0 401 Surface frame for ECO-IR 360 907 0 512 QuickSet plus service remote control 907 0 532 clic user remote control...
-
Page 17: Warranty Declaration
Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a de- fect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●... -
Page 18: Troubleshooting
. Troubleshooting Fault Cause Lighting does not switch on Lux value setting is too low; Detector is in semi-automa- or switches off in case of tic mode; Lighting was switched off manually; Person is presence and darkness outside the detection range; Detection is disturbed by obstacle(s);... - Page 19 Dimensions ECO-IR DUAL-C NT Subject to change without prior notice. Errors and omissions excepted.
- Page 20 Veuillez compulser les adresses pour des pays supplémentaires sur www.theben.de Please find the contact addresses for additional countries on www.theben.de Las direcciones de contacto de otros países las encontrará en www.theben.de Gli indirizzi per ulteriori paesi sono disponibili su www.theben.de...
