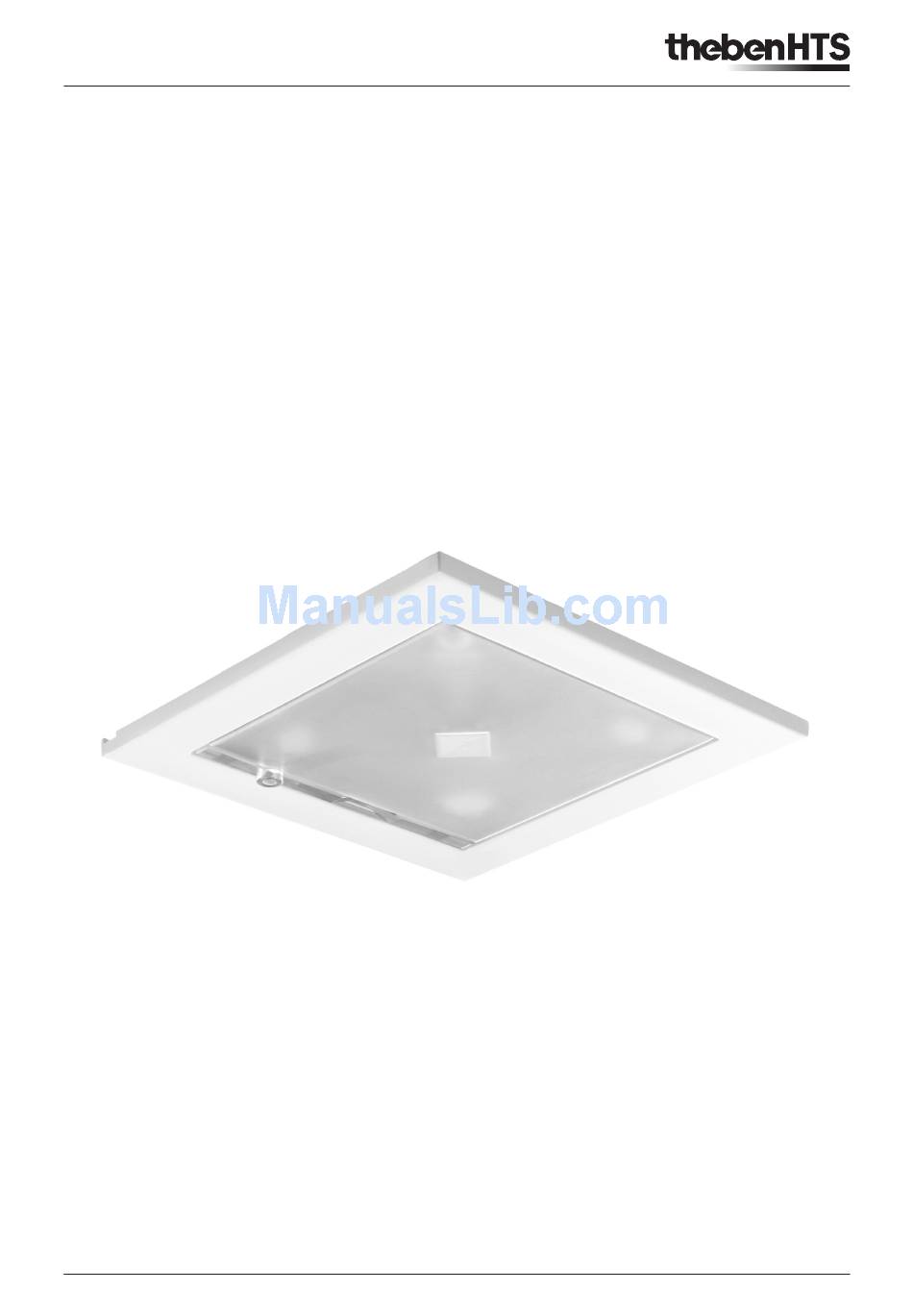

- Page 1 KNX presence detector PlanoCentro A-KNX KNX manual Application description KNX presence detector PlanoCentro A-KNX 1103065001 / 06.2011 © Theben AG Page 1 of 50...
-
Page 2: Table Of Contents
2. The PlanoCentro A-KNX application program ........ - Page 3 KNX presence detector PlanoCentro A-KNX 5.4.2 Actuators with separate object for status feedback (value) ........31 5.4.3...
-
Page 4: Functional Characteristics
KNX presence detector PlanoCentro A-KNX Functional characteristics PlanoCentro A-KNX presence detector Presence detector switches or controls a maximum of two lighting groups dependent on the presence of persons and the current brightness. A brightness level is defined for this, the second light group is then switched or controlled with a brightness difference. With brightness-dependent switching, the lighting is switched on for an adjustable length of time if movement is detected in detection area and there is insufficient light. With constant light control, the lighting is controlled to constant accumulated brightness of artificial light and daylight if movement has been detected in the detection area An additional channel transmits the presence information in the room to further devices such as heating, ventilation or blinds controls. -
Page 5: Technical Data
KNX presence detector PlanoCentro A-KNX Technical data Presence detector PlanoCentro A-KNX Horizontal / vertical detection angle 360° / 120° Recommended installation height 2,5–3.5 m Detection area 3.5m installation height 64 m (8 x 8 m) seated 100 m (10 x 10 m) moving... -
Page 6: Measures
KNX presence detector PlanoCentro A-KNX 1.5.1 Measures Ceiling installation Flush-mounted installation PlanoCentro E . . -A-KNX PlanoCentro U . . -A-KNX 1.5.2 Detection area Installation height stationary persons moving persons 2.0 m 20 m 4.5 m x 4.5 m 36 m 6.0 m x 6.0 m ±... -
Page 7: The Planocentro A-Knx Application Program
Theben HTS AG Product family Physical sensors Product type Presence detector Program name PlanoCentro A-KNX V1.0 The KNX databases can be found on our website: http://www.theben-hts.ch or http://www.theben.de Parameter pages Name Description General General settings, e.g. operating mode, sensitivity Channel functions... -
Page 8: Communication Objects
KNX presence detector PlanoCentro A-KNX Communication objects 2.3.1 Overview The PlanoCentro A-KNX presence detector has 39 communication objects. Object Object name Function Type Flags number A channel light Switching 1 bit A channel light Brighter/darker 4 bit A channel light... -
Page 9: Explanation Of The Flags
KNX presence detector PlanoCentro A-KNX 2.3.2 Explanation of the flags Flag Flag name Description Communication Object can communicate Read Object value can be read (ETS / display etc.) Write Object can receive Transmit Object can send Page 9 of 50... -
Page 10: Object Characteristics For Lighting Control
KNX presence detector PlanoCentro A-KNX 2.3.3 Object characteristics for lighting control Object Object name Function Description Object 0 A channel light Switching In the <control type> "switching", the A light switch output sends an ON telegram on detection of movement and insufficient brightness and an OFF telegram on completion of the switch-off delay time or with sufficient brightness: 0 = Absence or sufficient brightness (OFF) - Page 11 KNX presence detector PlanoCentro A-KNX Object Object name Function Description Object 5 A brightness level call up / teach-in Object available if "yes" has been selected at <set brightness level via bus>. The presence detector accepts the currently measured brightness value [lux] as a new brightness level with a value telegram $81 (128).
-
Page 12: Characteristics Of Other Objects
KNX presence detector PlanoCentro A-KNX Object Object name Function Description Object 13 Central command Receive An ON telegram switches on A,B channels light. The behaviour of the presence detec- tor is identical as if the user switches on via a push button. The behaviour depends on the selected control type. - Page 13 KNX presence detector PlanoCentro A-KNX Object Object name Function Description Object 19 M channel room Message Objects 19 - 22 available if 'active..' has been selected on <M channel room monito- monitoring ring>. Depending on the configuration, the presence detector sends the motion information via object 19 with increased security against faulty activation: <Report type>: Switching (On/Off): On detection of movement, the monitoring channel...
- Page 14 KNX presence detector PlanoCentro A-KNX Object Object name Function Description Object 25 IR external Switching If an IR group address is allocated to the <Switching/dimming external 1> parameter, channel 1 objects 25 and 26 assume the following function as soon as a command is received by...
- Page 15 KNX presence detector PlanoCentro A-KNX Object Object name Function Description Object 36 Input converter Receive Objects 36 - 39 available if "active.." has been selected on <Telegram converter>. 1 bit See page 17 If telegrams, regardless of value, are received at the converter inputs, object 39 sends...
-
Page 16: Parameters
KNX presence detector PlanoCentro A-KNX Parameters 2.4.1 General Parameter name Values Application Master A Master is capable of lighting control (switching or constant light control) and relaying the Operating mode presence information. Slave Slaves are used to extend the detection area. They supply presence information to the Master. - Page 17 KNX presence detector PlanoCentro A-KNX Parameter name Values Application Disabling light channels By processing scenes on the actuator, which controls the lights in the presence detector light groups, the presence detector stops controlling. with external scenes See page 27 chapter 2.4.15 Inactive The "Disabling light channels with external scenes"...
-
Page 18: Channel Functions
KNX presence detector PlanoCentro A-KNX 2.4.2 Channel functions Parameter name Values Application A channel, light Presence detector switches or controls a lighting group dependent on the presence of persons and current prevalent brightness. The switching or constant light control functions are selected via the "Control type A / B channel light"... -
Page 19: A Channel Light
KNX presence detector PlanoCentro A-KNX 2.4.3 A channel light Parameter name Values Application Function mode Fully automatic In "fully automatic" function mode the light channel automatically switches or controls the lighting dependent on presence and ambient brightness. Switch off occurs automa- tically. - Page 20 KNX presence detector PlanoCentro A-KNX Parameter name Values Application Continuation of room Adjustment of the detector brightness measured value correction factor Procedure: 1. Determine the lux values below the presence detector with the lux meter 2. Brightness actual value is read from the detector 3.
-
Page 21: Constant Light Control
KNX presence detector PlanoCentro A-KNX 2.4.4 Constant light control The parameter page is visible if constant light control is set at the <Control type> parameter. See page 16 chapter 2.4.1 Parameter name Values Application Behaviour at Value telegram Control is started with a value telegram. The actuator dims up at the set <Dimming time of 0 % to 100 %>. -
Page 22: Disabling Function Light
KNX presence detector PlanoCentro A-KNX 2.4.5 Disabling function light The disabling function light parameter page is always visible. Parameter name Values Application Disabling light channels Disabling light outputs means that the presence detector does not send telegrams via objects 0 to 3 and 7 to 10 although the evaluation of movement and brightness continues. -
Page 23: G Channel Send Brightness Value
KNX presence detector PlanoCentro A-KNX 2.4.7 G channel send brightness value Parameter name Values Application Transmit brightness value G channel brightness sends the measured brightness value as 2-byte telegram via cyclically object 15. The measured brightness value can be adjusted to the conditions in the room using the <Room correction factor>... -
Page 24: Disabling Function Presence
KNX presence detector PlanoCentro A-KNX 2.4.9 Disabling function presence Parameter name Values Application Disable presence channels Disabling presence channels stops the sending of their telegrams. H,J channels presence are not disabled as standard. The telegrams are sent on detection of movement and after completion of switch-off delay time according to configuration. -
Page 25: J Channel Disabling Function
KNX presence detector PlanoCentro A-KNX 2.4.11 J channel disabling function The disabling functions are dependent on the H channel presence settings. Parameter name Values Application Behaviour at start of disabling Do not send telegram No telegram is sent at the start of the disabling. -
Page 26: Remote Control
KNX presence detector PlanoCentro A-KNX 2.4.13 Remote control Parameter name Values Application Teach-in brightness level via disabled This function is not available with the SendoClic user remote control. user remote control enabled Switching/dimming A The IR group addresses of the presence detector and the SendoClic... -
Page 27: Disabling Light Channels With External Scenes
KNX presence detector PlanoCentro A-KNX Parameter name Values Application Output value scene 1, Off, On Value of scene 1, A channel in switching mode. light A Off , 1 % – 100 % Value of scene 1, A channel in constant light control. -
Page 28: Manual Operation With Push Buttons
KNX presence detector PlanoCentro A-KNX Manual operation with push buttons The presence detector can be overridden using push buttons or by other commands. It is important to know that no separate push button input objects are required. On the contrary, the presence detector responds to telegrams sent directly to the actuators by the push buttons or superior functions. -
Page 29: Parallel Connection
The interval between two telegrams can be increased to 4 minutes to reduce the telegram load. It must be borne in mind that the switch-off delay can never be shorter than the interval between two telegrams in order to prevent unintentional switch off. The parallel connection is compatible with all Theben HTS KNX presence detectors. Page 29 of 50... -
Page 30: Brightness Level / Constant Light Control
KNX presence detector PlanoCentro A-KNX Brightness level / constant light control Setting the brightness level The brightness level defines the minimum required brightness. The current prevailing bright- ness is measured below the presence detector. If the prevailing brightness is below the set point , the light switches on as soon as a presence is detected. -
Page 31: Configuration Of Switching/Dimming Actuators For Constant Light Control
10/0/7 5.2.3 Actuators without separate object for status feedback (value) Some actuators do not have a separate object for status feedback. They are connected with the PlanoCentro A-KNX, as follows, to ensure perfect constant light control: Actuator group addresses Act. -
Page 32: Test Modes
KNX presence detector PlanoCentro A-KNX Test modes The PlanoCentro has two test modes. • Test mode presence, page 32 chapter 6.2.1 • Test mode light, page 32 chapter 6.2.2 The test modes can only be started if the device is switched on. -
Page 33: Integrate Sendoclic User Remote Control
SendoClic performance characteristics The SendoClic infrared remote control makes it easy to switch and dim lighting using the PlanoCentro A-KNX presence detector. SendoClic has two channels for controlling lighting groups, blinds or external channels with switching and dimming. SendoClic provides the option of saving two different lighting scenes which can be retrieved anytime at the key-press. -
Page 34: Examples Of Set Ir Group Addresses
A channel light of the presence detector is controlled by channel 1 on the SendoClic. B channel light of the presence detector is controlled by channel 2 on the SendoClic. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SendoClic (Order no. 907 0 690) Overview... -
Page 35: Two Presence Detectors, Each With One Light Channel And Blinds
The blinds are controlled via the presence detector Master 2 using channel 2 on SendoClic. Channel 2 commands are ignored by Master 1. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SendoClic (Order no. 907 0 690) Overview IR group... -
Page 36: Two Presence Detectors With Internal And External Light Channels
A channel light of the presence detector Master 1 is controlled by channel 1 on the SendoClic. A channel light of the presence detector Master 2 is controlled by channel 2 on the SendoClic. The presence detector light channels are not mutually influenced by the SendoClic commands. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SendoClic (Order no. 907 0 690) Overview IR group... -
Page 37: Two Presence Detectors With One And Two Internal Light Channels
A channel light of the presence detector Master 1 is controlled by channel 2 on the second SendoClic. B channel light of the presence detector Master 2 is controlled by channel 2 on the second SendoClic. The presence detector light channels are not mutually influenced by the commands from the two SendoClics. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SendoClic (Order no. 907 0 690) Overview IR group... -
Page 38: Troubleshooting
KNX presence detector PlanoCentro A-KNX Troubleshooting Fault / error Cause Light does not switch on and/or Lux value is set too low; detector set on semi-automatic; light was switched off manually via push switches off if presence is detected button or SendoClic; person not within detection range; obstruction(s) interfere with detection;... -
Page 39: Evaluation Of Error Codes (Diagnosis Bits)
KNX presence detector PlanoCentro A-KNX Evaluation of error codes (diagnosis bits) Telegram Diagnosis bit Telegram Diagnosis bit Dec. Hex. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Dec. Hex. Bit 7 Bit 6... -
Page 40: Appendix
Description The classic function of a presence detector is switching lights on if a room is occupied and there is insufficient natural daylight. The lighting is automatically switched off if the room is vacated or the share of daylight increases. Devices PlanoCentro A-KNX (Order no. 205 9 ...) RMG 8 S KNX (Order No. 493 0 220) Overview Obj. 0 Obj. 0... -
Page 41: Presence And Brightness-Dependent Switching Of Light, Additional Manual Override Via Push Button
The presence detector switches off the lighting as usual if there is sufficient daylight or if the room is unoccupied. Devices PlanoCentro A-KNX (Order no. 205 9 ...) RMG 8 S KNX (Order No. 493 0 220) Overview Obj. 0 Obj. -
Page 42: Presence And Brightness-Dependent Switching Of Light With Two Lighting Groups In A Small Room
The lighting group near the window is switched on by the presence detector before the one in the interior of the room due to the greater amount of daylight. Devices PlanoCentro A-KNX (Order no. 205 9 ...) RMG 8 S KNX (Order No. 493 0 220) Overview Obj. -
Page 43: Presence And Brightness-Dependent Switching With Additional Heating Control
In large rooms this switching can be extended with additional presence detectors (Master or Slave). Devices PlanoCentro A-KNX (Order no. 205 9 ...) Mix combination: RMG 8 S + upgrade module HME 4 (Order No. 493 0 220 + 491 0 211) Ramses 713 S KNX (Order no. - Page 44 KNX presence detector PlanoCentro A-KNX Parameter PlanoCentro A-KNX Parameter page Parameter Setting General Operating mode Master Master operating mode Single unit operation Channel functions A channel , light active.. B channel , light active.. Control type Switching H channel presence active..
-
Page 45: Constant Light Control
KNX presence detector PlanoCentro A-KNX 9.1.5 Constant light control Description Presence detectors with constant light controls control lighting dependent on natural daylight if the room is occupied. Artificial light is automatically dimmed up with reducing levels of daylight, and with increasing levels of daylight the artificial light automatically dims down and finally switches off. The lighting is automatically switched off if the room is vacated. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SMG 2 S (Order No. 491 0 273) Overview Obj. 0 Obj. 0 Obj. 1 Obj. 1 Obj. 2 Obj. -
Page 46: Constant Light Control, Additional Manual Override Via Push Button
It is also possible to operate the presence detector in semi-automatic mode. In this case, the lighting must always be switched on by hand; the detector does not switch the lighting on independently. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SMG 2 S (Order No. 491 0 273) Overview Obj. - Page 47 KNX presence detector PlanoCentro A-KNX Parameter PlanoCentro A-KNX Parameter page Parameter Setting General Operating mode Master Master operating mode Single unit operation Channel functions A channel , light active.. Control type Constant light control A channel light Brightness level 500 lux (e.g. for an office)
-
Page 48: Constant Light Control With Two Lighting Groups
The lighting group near the window is controlled with an offset in comparison to the lighting group in the interior of the room. Devices PlanoCentro A-KNX (Order no. 205 9 ...) SMG 2 S (Order No. 491 0 273) Overview Obj. -
Page 49: Master - Slave Parallel Connection
Master-Slave parallel connection can be used independently of whether the Master switches one or two lighting groups or operates in constant light control. Devices PlanoCentro A-KNX (Order no. 205 9 ...) RMG 8 S (Order No. 490 0 220) Overview Obj. -
Page 50: Master - Master Parallel Connection
The Master-Master parallel connection can be used independently of whether the Master is configured for switching or constant light control. Devices PlanoCentro A-KNX (Order no. 205 9 ...) RMG 8 S / (Order No. 490 0 220) Overview Obj. 0 Obj.
