Summary of Contents for Nice NX STAR MA 1017 SH

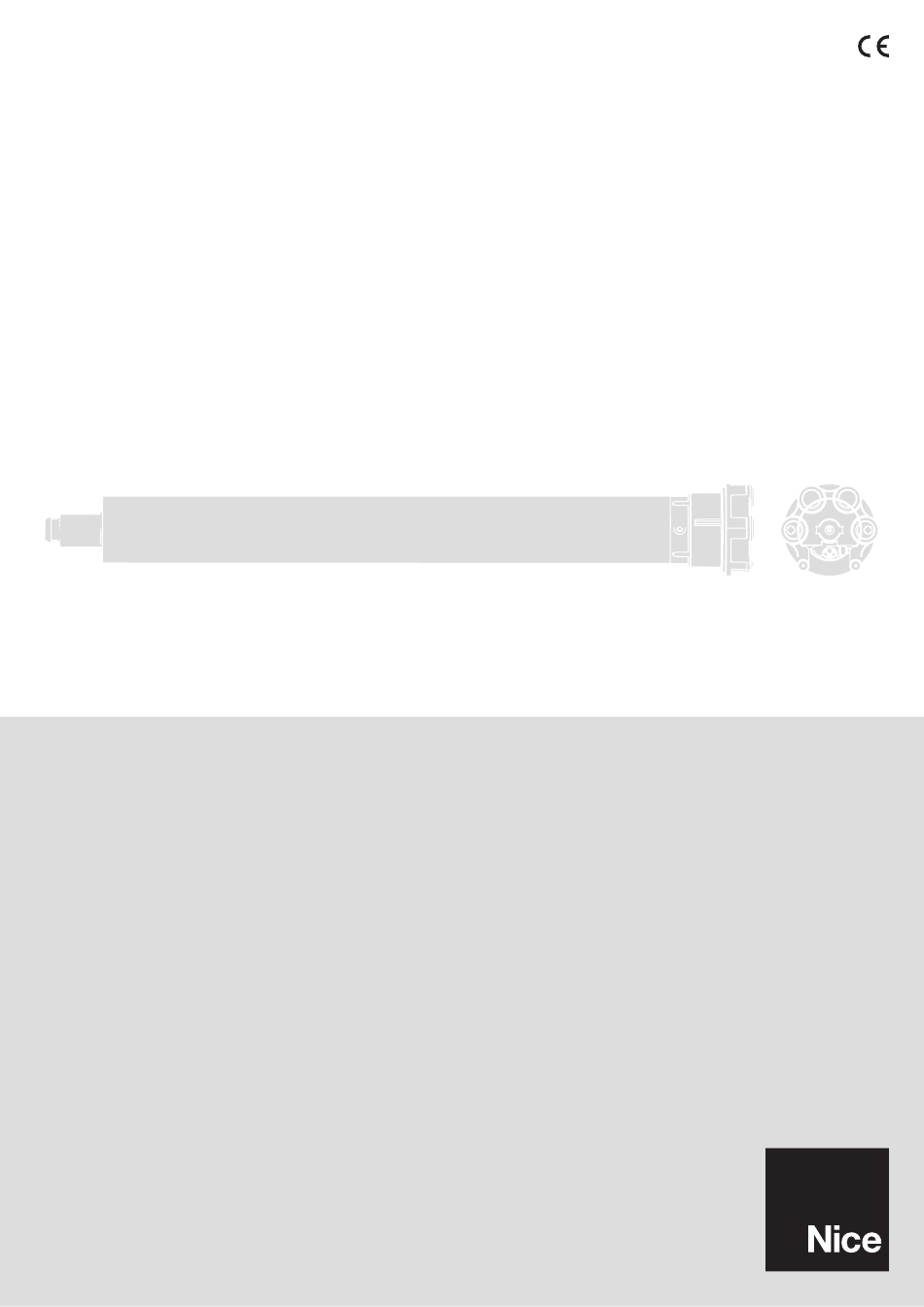

- Page 1 Nice NX STAR MA 1017 SH NX STAR MA 2017 SH Tubular motors EN - Instructions and warnings for installation and use...
-
Page 2: Installation Warnings
GENERAL WARNINGS: SAFETY - INSTALLATION - USE (original instructions in Italian) ATTENTION Important safety instructions. Follow all instructions as improper installation may cause serious damage ATTENTION Important safety instructions. It is important for you to comply with these instructions for your own and other people’s safety. -
Page 3: Product Description And Intended Use
“Guide to Selection” section, in the “Nice Screen” catalogue, – also available on the • The motor must be powered by a permanent connection to the mains. -
Page 4: Programming And Adjustments
Brown and Black wires. – All the programming and adjustment operations must be carried out with the Nice (*) Note – When the Up and Down limit switches have not yet been programmed, TTU programmer (Fig. 5). Alternatively you can also use a two-button push button... - Page 5 A.1 - AUTOMATIC Programming of the UP (“0”) and DOWN (“1”) limit switches NOTES AND WARNINGS • Use this procedure only for roller shutters equipped with mechanical locking devices. • Programme the UP limit switch (0) FIRST. • The down limit switch (1) is NOT memorised if it is within 120° with respect to the UP limit switch (0). •...
- Page 6 A.3 - SEMIAUTOMATIC Programming of the UP (“0”) and DOWN (“1”) limit switches NOTES AND WARNINGS • Use this procedure solely for roller shutters with mechanical Up “0” limit switch stop. • Programme the UP limit switch (0) FIRST. • the down limit switch (1) is NOT memorised if it is within 120° with respect to the UP limit switch (0). •...
- Page 7 A.5 - Behaviour of the motor in the presence of an obstacle NOTES AND WARNINGS • This procedure can be used to modify the behaviour of the roller shutter when the motor detects an obstacle. • There are two types of behaviours: a) the motor stops its movement and completes a brief reversal to free the obstacle; b) the motor stops its movement. ...
- Page 8 A.7 - Adjusting the Soft-Start / Soft-Stop movement NOTES AND WARNINGS • This procedure can be used to activate, adjust or deactivate the Soft-Start / Soft-Stop movement. • The following options are available: – function DEACTIVATED – 1/2 turn – 3/4 turn –...
- Page 9 After excluding the possibility that thermal protection is active, in which case it is 20° C (± 5° C). • Nice S.p.A. reserves the right to apply modifications to products sufficient to wait for the motor to cool down, make sure the mains voltage corre- sponds to the values indicated in the “technical data”...
- Page 10 Appendix Limit switch gear wheel (not included). Drive wheel (not included).
- Page 11 Cap for fixing the roller to the bracket (not included). Removing the connector if necessary 10 mm Support for fixing the motor head.
- Page 12 Nice SpA Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
