NordicTrack VAULT User Manual

Hide thumbs Also See for VAULT:

Advertisement

Table of Contents

Model No. NTB15019-INT.1
Serial No.
Write the serial number in the space
above for reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAULT and is the answer not in the manual?

Questions and answers

Related Manuals for NordicTrack VAULT

Summary of Contents for NordicTrack VAULT

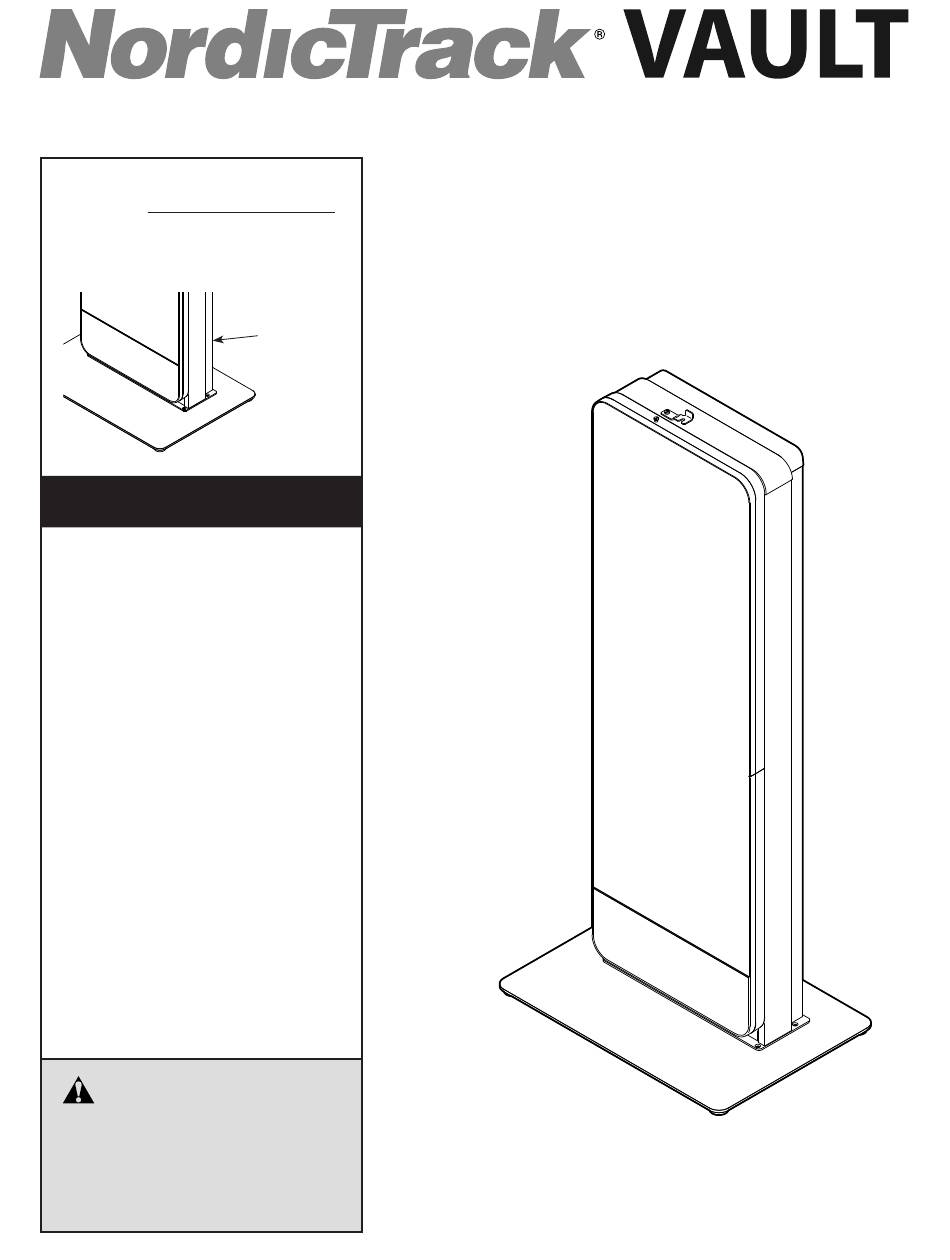

  • Page 1 Model No. NTB15019-INT.1 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal CUSTOMER SERVICE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd. Unit 4, Westgate Court Silkwood Park OSSETT...

  • Page 2: Table Of Contents

    Note: The decal(s) may not be shown at actual size. (inside cabinet) NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth word mark ® and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google LLC.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your fitness mirror before using your fitness mirror. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 4: Before You Begin

    The age cabinet. The VAULT offers a variety of immersive model number and the location of the serial number and interactive workouts designed to help you achieve decal are shown on the front cover of this manual.

  • Page 5: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 6: Assembly

    ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tool(s): • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you finish all assembly steps.
  • Page 7 2. Locate the four holes in the Base (6), and then locate the front edge (A) and the rear edge (B) of the Base; the holes are closer to the rear edge. Tip: Avoid scratching the Base (6). With the help of a second person, set the Cabinet (1) on the Base as shown.
  • Page 8 3. Tip: Avoid damaging the mirror. With the help of a second person, orient the Door (3) so that the speakers (C) are at the bottom. Have a second person hold the Door (3) until you complete assembly step 5. See the inset drawing.
  • Page 9 5. See the inset drawing. Locate the Screw Bushing (18) at the bottom of the Hinge (7). Apply a generous amount of grease to the Screw Bushing. Grease Next, slide the Lower Bracket (16) onto the bottom of the Hinge (7) as shown and hold it in place.
  • Page 10 7. IMPORTANT: Always plug the Power Adapter (23) into the fitness mirror before you plug it into an outlet. Plug the Power Adapter (23) into the receptacle on the back of the Cabinet (1). To plug the Power Adapter (23) into an outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 11.

  • Page 11: How To Use The Fitness Mirror

    HOW TO USE THE FITNESS MIRROR HOW TO PLUG IN THE POWER ADAPTER HOW TO ADJUST THE SHELVES AND RACKS IMPORTANT: If the fitness mirror has been exposed Depending on the model, a variety of shelves and to cold temperatures, allow it to warm to room tem- racks are included with the fitness mirror.
  • Page 12 HOW TO ORDER OPTIONAL FITNESS EQUIPMENT HOW TO TURN ON THE TABLET A variety of optional fitness equipment, such as dumb- The included power adapter must be used to oper- bells, kettlebells, yoga mats, and resistance bands, is ate the fitness mirror. See HOW TO PLUG IN THE available.
  • Page 13 HOW TO USE THE TOUCH SCREEN Note: To change these settings later, see HOW TO CHANGE TABLET SETTINGS on page 16. The tablet features a full-color touch screen. The fol- 3. Log into or create an iFit account. lowing information will help you use the touch screen: •...
  • Page 14 HOW TO WORK OUT WITH THE TABLET When you select an iFit workout, the screen will show an overview of the workout that includes To use the tablet, you must be logged into your iFit details such as the duration of the workout and account (see step 2 below) and the tablet must be con- the approximate number of calories you will burn nected to a wireless network (see HOW TO CONNECT...
  • Page 15 5. Schedule an iFit workout on the calendar if 7. Wear a compatible heart rate monitor and desired. measure your heart rate if desired. If desired, you can schedule an iFit workout for You can wear a compatible heart rate monitor a future date.
  • Page 16 HOW TO CHANGE TABLET SETTINGS 3. Customize workout settings. IMPORTANT: Firmware updates are always To customize workout settings, touch In Workout, designed to improve your exercise experience. As a and then touch the desired settings. result, new settings and features may not be described in this manual.
  • Page 17 HOW TO CONNECT TO A WIRELESS NETWORK Note: You must have your own wireless network and an 802.11b/g/n router with SSID broadcast To use iFit workouts and to use several other features enabled (hidden networks are not supported). of the tablet, the tablet must be connected to a wireless network.
  • Page 18 HOW TO CONNECT YOUR HEADPHONES WITH THE OPTIONAL HEART RATE MONITOR BLUETOOTH Whether your If the tablet is enabled with this feature, you can goal is to connect your Bluetooth-compatible headphones to lis- burn fat or to ten to audio from the tablet through your headphones. strengthen your cardiovascular To connect your headphones to the tablet, first turn...

  • Page 19: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE If you are having problems connecting the tablet to a wireless network, or if you are having problems Regular maintenance is important for optimal with your iFit account or iFit workouts, go to performance and to reduce wear. Inspect and properly support.iFit.com.
  • Page 20 HOW TO ADJUST THE DOOR AND THE HINGE If the hinge does not move easily, or if the hinge moves too freely, the lower bracket in the cabinet If the door does not move easily, or if the door moves needs to be adjusted.

  • Page 21: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.

  • Page 22: Part List

    PART LIST Model No. NTB15019-INT.1 R0521A Key No. Qty. Description Key No. Qty. Description Cabinet Frame Wire Power Adapter Mirror/Door Speaker Assembly Tablet Assembly Pin Bushing Back Cover Mirror Screw Base Speaker Screw Hinge Cap Screw Fixed Shelf M10 x 31mm Shoulder Screw Left Hanger M8 x 16mm Screw Right Hanger...

  • Page 23: Exploded Drawing

    EXPLODED DRAWING Model No. NTB15019-INT.1 R0521A...

  • Page 24: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
