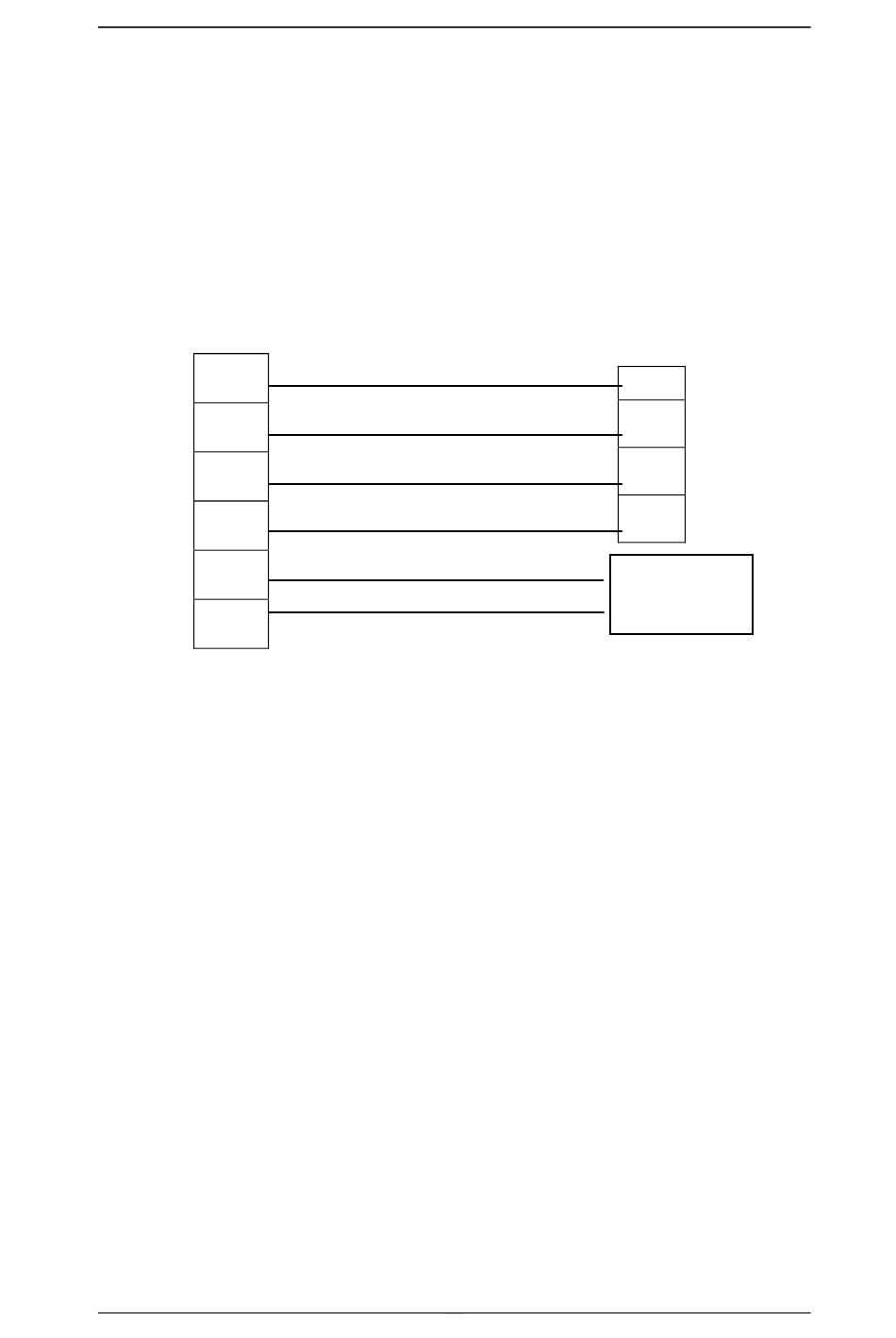

5.1 Connect MPC2810 to DMD808 Stepper Motor
Drive
Motion control card
D46
Axis-1 Direction-
D47
Axis-1 Direction+
D48
Axis-1 Pulse-
D49
Axis-1 Pulse+
D2
DCV24+
D3
GND24
MPC2810 Motion Controller Hardware Manual
5 Typical Connection
Stepper motor drive
42
Dir-
Dir+
Pul-
Pul+
+
DC24/12
-
