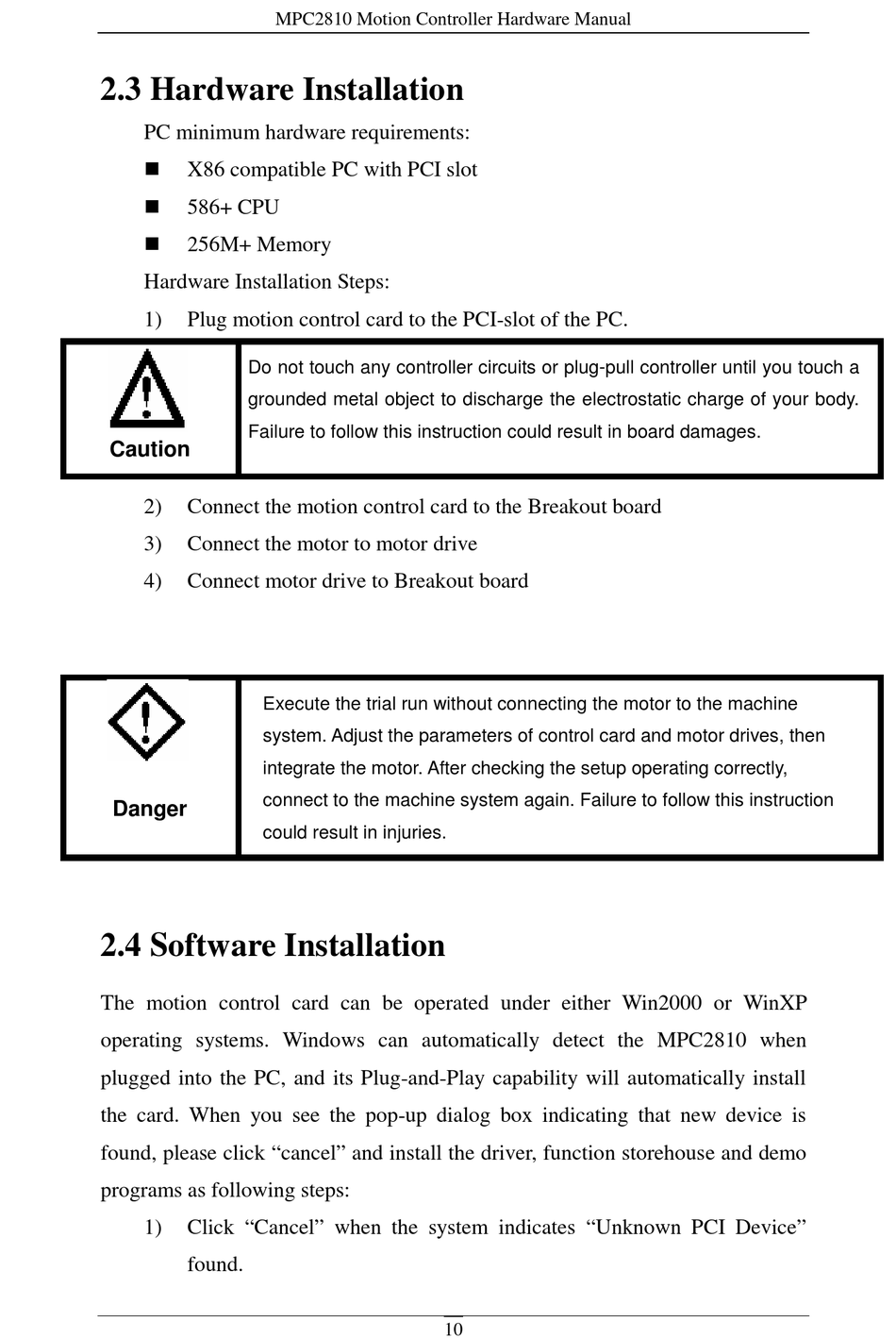

2.3 Hardware Installation

PC minimum hardware requirements:

X86 compatible PC with PCI slot

586+ CPU

256M+ Memory
Hardware Installation Steps:
1) Plug motion control card to the PCI-slot of the PC.
Do not touch any controller circuits or plug-pull controller until you touch a
grounded metal object to discharge the electrostatic charge of your body.
Failure to follow this instruction could result in board damages.
Caution
2) Connect the motion control card to the Breakout board
3) Connect the motor to motor drive
4) Connect motor drive to Breakout board
Execute the trial run without connecting the motor to the machine
system. Adjust the parameters of control card and motor drives, then
integrate the motor. After checking the setup operating correctly,
connect to the machine system again. Failure to follow this instruction
Danger
could result in injuries.

2.4 Software Installation

The motion control card can be operated under either Win2000 or WinXP
operating systems. Windows can automatically detect the MPC2810 when
plugged into the PC, and its Plug-and-Play capability will automatically install
the card. When you see the pop-up dialog box indicating that new device is
found, please click " cancel"and install the driver, function storehouse and demo
programs as following steps:
1) Click " Cancel" when the system indicates " Unknown PCI Device"
found.
