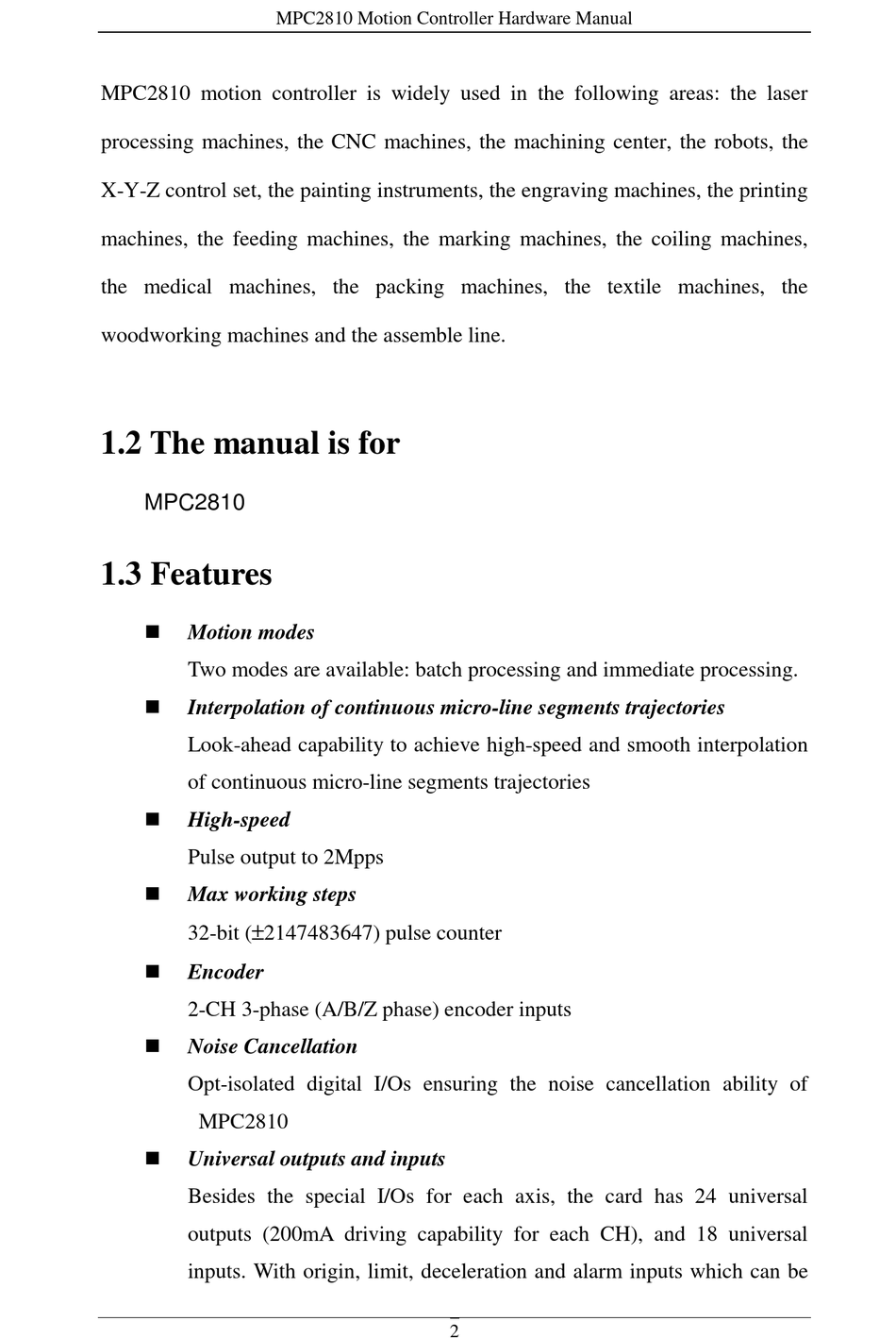

MPC2810 motion controller is widely used in the following areas: the laser
processing machines, the CNC machines, the machining center, the robots, the
X-Y-Z control set, the painting instruments, the engraving machines, the printing
machines, the feeding machines, the marking machines, the coiling machines,
the medical machines, the packing machines, the textile machines, the
woodworking machines and the assemble line.

1.2 The manual is for

MPC2810

1.3 Features


Motion modes
Two modes are available: batch processing and immediate processing.

Interpolation of continuous micro-line segments trajectories
Look-ahead capability to achieve high-speed and smooth interpolation
of continuous micro-line segments trajectories

High-speed
Pulse output to 2Mpps

Max working steps
32-bit (2147483647) pulse counter

Encoder
2-CH 3-phase (A/B/Z phase) encoder inputs

Noise Cancellation
Opt-isolated digital I/Os ensuring the noise cancellation ability of
MPC2810

Universal outputs and inputs
Besides the special I/Os for each axis, the card has 24 universal
outputs (200mA driving capability for each CH), and 18 universal
inputs. With origin, limit, deceleration and alarm inputs which can be
