Wiring the Fault Alarm Contact

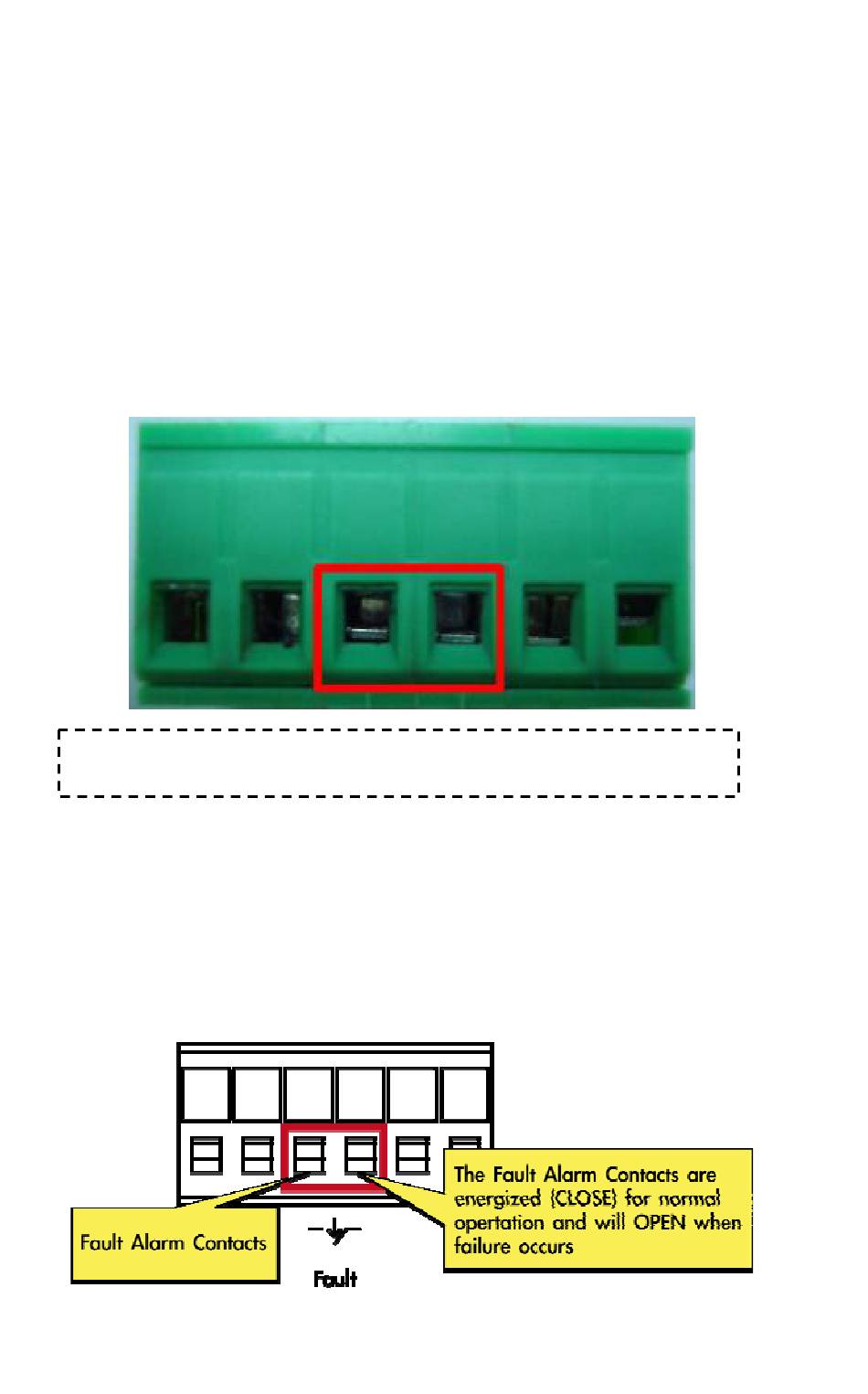

The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
MC251-4P/1CXT will detect the fault status of the power
failure and then forms an open circuit. The following illustration
shows an application example for wiring the fault alarm
contacts.
1
2
3
4
5
6
Insert the wires into the fault alarm contacts
Note:
The wire gauge for the terminal block should be in the
range between 12 ~ 24 AWG.
The alarm relay circuit accepts up to 30V, max. 3A currents.
14
IFS MC251-4P/1CXT User Manual
