Summary of Contents for Interlogix IFS MCR-R15

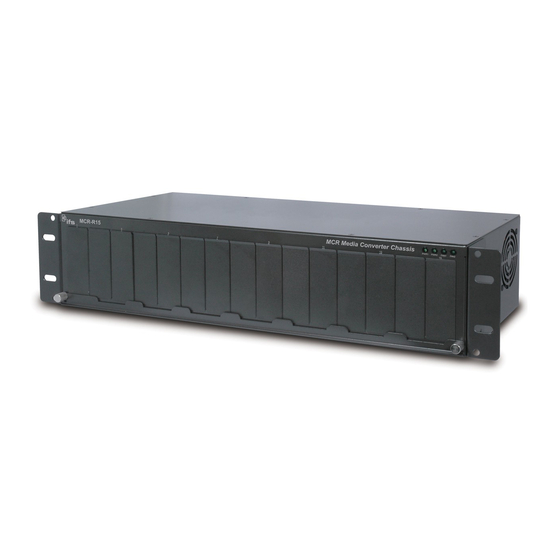

- Page 1 IFS MCR-R15 Media Converter Rack User Manual P/N 1076518 • REV A • ISS 08FEB12...
- Page 2 Manufacturer UTC Fire & Security Americas Corporation, Inc. 2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA Version This document applies to IFS MCR-R15 Media Converter Rack version 1.0. Certification N4131 FCC compliance Class A: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact www.utcfireandsecurity.com information www.interlogix.com Customer support www.interlogix.com/customer-support...
-
Page 5: Table Of Contents
LED Indicators 3 Rear Panel 3 Installing the MCR-R15 Rack 4 Desktop mount installation 4 Rack mount installation for an EIA rack 4 Installing Modules into the MCR-R15 5 Specifications 7 Contacting Technical Support 8 IFS MCR-R15 Media Converter Rack User Manual... -
Page 7: Package Contents
Package Contents Before installing the IFS MCR-R15 Media Converter Rack verify that the package contains the following parts: ● MCR-R15 Media Converter Rack x1 ● MCR-RPS x1 (factory installed) ● User Manual x1 ● Power Cord x1 ● Rack Mount Accessory Kit x1 ●... -
Page 8: Power System
MCR205-1T/1S - Fast Ethernet to SFP • MCR300-1T/1S - GigE Ethernet to SFP Additional modules may become available. Please contact your distributor or IFS sales rep. Front Panel Figure 1: Media Converter Rack Front Panel IFS MCR-R15 Media Converter Rack User Manual... -
Page 9: Led Indicators
Figure 2: Rear Panel Note: The MCR-R15 is shipped with one 100~240 VAC power supply module (MCR-RPS) installed. A second MCR-RPS power supply module may be purchased for redundant power operation. IFS MCR-R15 Media Converter Rack User Manual... -
Page 10: Installing The Mcr-R15 Rack
It is important to allow at least 1U spacing below the chassis to allow for proper air ventilation generated by the built-in fans. • Securely install the chassis to the rack using screws. IFS MCR-R15 Media Converter Rack User Manual... -
Page 11: Installing Modules Into The Mcr-R15
Carefully slide the media converter into the rack making sure the power connection is securely made. • Push up the retaining bar to lock the converters. • Ensure that there is no activity on the network. IFS MCR-R15 Media Converter Rack User Manual... - Page 12 • Connect the appropriate network cables to the media converter. • Turn on the power to the rack. At least one set of Power and FAN LED indictors should glow green. IFS MCR-R15 Media Converter Rack User Manual...
-
Page 13: Specifications
FCC Part 15 Class A, CE EN 55022 CLASS A EN61000-3-2:2006 EN61000-3-3: 1995+1A:2001+A2:2005 EN 55024:1998+A1:2001+A2:2003 IEC 61000-4-2:2001 IEC 61000-4-3:2008 IEC 61000-4-4:2004 IEC 61000-4-5:2005 IEC 61000-4-6:2008 IEC 61000-4-8:2001 Reliability MTBF > 50,000 hrs @ 25°C IFS MCR-R15 Media Converter Rack User Manual... -
Page 14: Contacting Technical Support
Technical Support Europe, Middle East and Africa Select Contact Us at www.utcfssecurityproducts.eu North America +1 855.286.8889 techsupport@interlogix.com Australia techsupport@interlogix.au IFS MCR-R15 Media Converter Rack User Manual...
