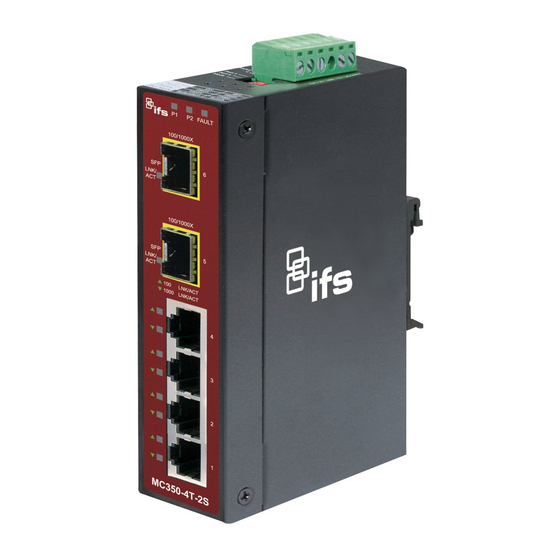

  • Page 1 IFS MC352-4P-2S User Manual P/N 1072702 • REV A • ISS 22OCT13...
  • Page 2 © 2013 United Technologies Corporation Copyright Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. The IFS MC352-4P-2S name and logo are trademarks of United Trademarks and Technologies. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION 1.1 P ..........................4 ACKAGE ONTENTS 1.2 H .........................4 OW TO ANUAL 1.3 P ..........................5 RODUCT EATURES 1.4 P ........................6 RODUCT PECIFICATIONS 1.5 P ........................7 HYSICAL IMENSIONS 2. INSTALLATION 2.1 P ........................9 RODUCT ESCRIPTION 2.1.2 Switch Front Panel........................10 2.1.3 LED Indicators ........................11 2.1.4 Switch Upper Panel ........................12 2.1.5 Wiring the Power Inputs......................

  • Page 4: Introduction

    1. Introduction Thank you for purchasing IFS Layer 2 Industrial Gigabit Switch with 4-Port 802.3at PoE+, The MC352-4P-2S descriptions of these models are as follows: Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet MC352-4P-2S Switch (-40~75 Degree C) In the following section, the term “Industrial Gigabit PoE+ Switch”...

  • Page 5: Product Features

    1.3 Product Features Physical Port with  4-Port 10/100/1000Base-T RJ-45 IEEE 802.3af/802.3at PoE+ Injector MC352-4P-2S 2 SFP interfaces, 100/1000Base-X dual mode (DIP switch control) Power over Ethernet  Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet Plus End-Span PSE  Up to 4 IEEE 802.3af/802.3at devices powered ...

  • Page 6: Product Specifications

    1.4 Product Specifications Model MC352-4P-2S Hardware Specification 4 x 10/100/1000Base-T RJ-45 TP Copper Ports Auto-MDI/MDI-X, Auto-negotiation 2 x SFP interfaces support 1000Base-SX/LX and 100Base-FX SFP transceivers SFP / mini-GBIC Slots DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX DIP-2: SFP Port 6 1000Base-X (default) / 100Base-FX DIP-3 : Switch (default) / Fiber Redundant mode DIP Switch Terminal Block...
  • Page 7 Switch Specification Store-and-Forward Switch Processing Scheme 1K entries Address Table Back pressure for half duplex Flow Control IEEE 802.3x Pause Frame for full duplex 12Gbps Switch fabric 8.93Mpps@64bytes Throughput (packet per second) 9216 bytes Maximum Transmit Unit TP: 10/20Mbps, 100/200Mbps, 2000Mbps SX/LX: 2000Mbps (Full-duplex) Speed FX: 200Mbps (Full-duplex)

  • Page 8: Physical Dimensions

    1.5 Physical Dimensions  MC352-4P-2S Industrial Gigabit PoE+ Switch dimensions (W x D x H): 161 x 107 x 72 mm - 8 -...

  • Page 9: Installation

    2. Installation This section describes the functionalities of the Industrial Gigabit PoE+ Switch’s components and guides how to install it on the desktop. Basic knowledge of networking is assumed. Please read this chapter completely before continuing. 2.1 Product Description High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the MC352-4P-2S provide 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30-watt power output and data per...

  • Page 10: Switch Front Panel

    2.1.1 Switch Front Panel Figure 2-1 shows the front panels of MC352-4P-2S Industrial Gigabit PoE+ Switches. Figure 2-1: MC352-4P-2S Front Panels  PoE Power Usage LED The front panel of the Industrial Gigabit PoE+ Switch has four LEDs which indicate “PoE Power Usages (W)”...

  • Page 11: Led Indicators

     DIP Switch The front panel of the MC352-4P-2Sprovides one 3-DIP Switch which is for configuring 100 or 1000X fiber support and fiber redundant function. Refer to the table below to know about the 3-DIP switch settings and descriptions: For more information about the fiber redundancy function, please refer to the chapter 2.1.7 Redundancy Overview.

  • Page 12: Switch Upper Panel

     Per PoE Power Usage (Unit : Watts) (Lower LED to upper LED) Color Function Lights to indicate the system is providing >30/60/90/120 Watts PoE power usage. Blinks to indicates the system is providing almost reach 30/60/90/120 Watts PoE power usage. 25 <...

  • Page 13: Wiring The Power Inputs

    2.1.4 Wiring the Power Inputs The 6-contact terminal block connector on the top panel of Industrial Gigabit PoE+ Switch is used for two DC redundant powers input. Please follow the steps below to insert the power wire. Insert positive/negative DC power wires into contacts 1 and 2 for POWER 1, or 5 and 6 for POWER V1- V1 + V2 - V2 + Tighten the wire-clamp screws for preventing the wires from loosening.

  • Page 14: Wiring The Fault Alarm Contact

    2.1.5 Wiring the Fault Alarm Contact The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Gigabit PoE+ Switch will detect the fault status of the power failure, or port link failure (available for managed model) and then forms an open circuit.

  • Page 15: Cabling

    2.1.6 Cabling 10/100/1000Base-T All 10/100/1000Base-T ports come with Auto-Negotiation capability. They automatically support 1000Base-T, 100Base-TX and 10Base-T networks. Users only need to plug a working network device into one of the 10/100/1000Base-T ports, and then turn on the Industrial Gigabit PoE+ Switch. The port will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps and 1000Mbps or 2000Mbps after the negotiation with the connected device.
  • Page 16 Figure 2-3: Plug-in the SFP transceiver  Approved IFS SFP Transceivers IFS Industrial Gigabit PoE+ Switch supports both Single mode and Multi-mode SFP transceivers. The following list of approved IFS SFP transceivers is correct at the time of publication: Gigabit / Fast Ethernet Transceiver SFP for High Temperature: IFS Model SFP Description S35-2MLC...
  • Page 17 IFS Model SFP Description S30-1SLC/A-10 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 10km , A S30-1SLC/A-20 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 20km, A S30-1SLC/A-60 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 60km, A S30-1SLC/B-10 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1550nm/1310nm, 10km , B S30-1SLC/B-20...
  • Page 18 100Base-FX: Before connecting with switches, workstation or media converter, please do the following steps: With 100Base-FX Fiber Speed, please set the DIP Switch of SFP Port 5 or Port 6 to the “ON” position. Port 6 (DIP 2) 1000X 100FX Port 5 (DIP 1) 1000X 100FX...

  • Page 19: Redundancy Overview

    Figure 2-4: Pulling out from the transceiver Never pull out the module without pulling the latch or the push bolts on the module. Directly pulling out the module with violence could damage the module and the SFP module slot of the Industrial Gigabit Ethernet Switch. 2.1.7 Redundancy Overview The MC352-4P-2S Industrial Gigabit PoE+ Switch provides rapid fiber redundancy of link for highly critical Ethernet applications.

  • Page 20: Mounting Installation

     Link status auto detect and redundant on Dual ports with same connector type.  Only Primary-Port is active at a time, the Backup-Port is blocked.  When Primary-Port link failure occurs, the traffic swaps to Backup-Port automatically.  Once the Primary-Port status is back to link up, the traffic will swap from Backup-Port to Primary-Port.
  • Page 21 Step 2: Lightly insert the bottom of the switch into the track Step 3: Check if the DIN-Rail is tightly on the track. Step 4: Please refer to the following procedures to remove the Industrial Gigabit Ethernet Switch from the track. - 21 -...

  • Page 22: Wall Mount Plate Mounting

    Step 5: Lightly pull out the bottom of the switch for removing it from the track. 2.2.2 Wall Mount Plate Mounting To install the Industrial Gigabit Ethernet Switch on the wall, please follow the instructions described below. Step 1: To remove the DIN-Rail from the Industrial Gigabit Ethernet Switch, loose the screws to remove the DIN-Rail.

  • Page 23: Applicaiton

    3. Applications In this paragraph, we will describe how to install Industrial Gigabit PoE+ Switch and the installation points. Industrial Operating Environment Harsh Climate - 23 -...
  • Page 24 Installation Steps Step 1: Unpack the Industrial Gigabit PoE+ Switch. Step 2: Check the DIN-Rail is screwed on the Industrial Gigabit PoE+ Switch. (Please refer to DIN-Rail Mounting section for DIN-Rail installation, if the DIN-Rail is not screwed on the Industrial switch). If you want to wall-mount the Industrial Gigabit Ethernet Switch, please refer to Wall Mount Plate Mounting section for wall-mount plate installation.

  • Page 25: Switch Operation

    4. Switch Operation 4.1 Address Table The Industrial Gigabit PoE+ Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some nodes in network, including MAC address, port no, etc. This information comes from the learning process of Industrial Gigabit PoE+ Switch.

  • Page 26: Auto-Negotiation

    The Industrial Gigabit PoE+ Switch performs "Store and Forward"; therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur. 4.5 Auto-Negotiation The STP ports on the Industrial Gigabit PoE+ Switch have built-in “Auto-negotiation”. This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset).

  • Page 27: Troubleshooting

    5. Troubleshooting This chapter contains information to help you solve issues. If the Industrial Gigabit PoE+ Switch is not functioning properly, make sure the Industrial Gigabit PoE+ Switch was set up according to instructions in this manual. The Link LED does not light up Solution: Check the cable connection and also try to swap one new cable.

  • Page 28: Cable Connection Parameters

    6. Cable Connection Parameters The wiring details are as below: ■ 100FX Fiber Optical Cables: Standard Fiber Type Cable Specification 100Base-FX Multi-mode 50/125μm or 62.5/125μm (1310nm) Single-mode 9/125μm 100Base-BX-U Single-mode 9/125μm (TX :1310/RX :1550nm) 100Base-BX-D (TX :1550/RX :1310nm) 1000X Fiber Optical Cables: Standard Fiber Type Cable Specification...

  • Page 29: Appendix A: Networking Connection

    APPENDIX A: Networking Connection A.1 PoE RJ-45 Port Pin Assignments (End-Span) PIN NO RJ-45 POWER ASSIGNEMNT ˙Power + ˙Power + ˙Power - ˙Power - A.2 Switch’s RJ-45 Pin Assignments 1000Mbps, 1000Base-T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD-...

  • Page 30: Cable Pin Assignments

    Tx - (transmit) Rx - (receive) Rx + (receive) Tx + (transmit) 4, 5 Not used Rx - (receive) Tx - (transmit) 7, 8 Not used A.3 RJ-45 cable Pin Assignments The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable, and crossover cable connection: Straight Cable SIDE 1...
  • Page 31 Crossover Cable SIDE 1 SIDE2 SIDE 1 1 = White / Orange 1 = White / Green 2 = Orange 2 = Green 3 = White / Green 3 = White / Orange 4 = Blue 4 = Blue 5 = White / Blue 5 = White / Blue 6 = Green 6 = Orange...
