MC251-4P/1CXT Application Connection

Two MC251-4P/1CXT can be used to link two different area
networks. Through a normal telephone cable or coaxial cable,
performance is 99/63Mbps (RJ-11) or 99/65Mbps (BNC)
asymmetric backbone.

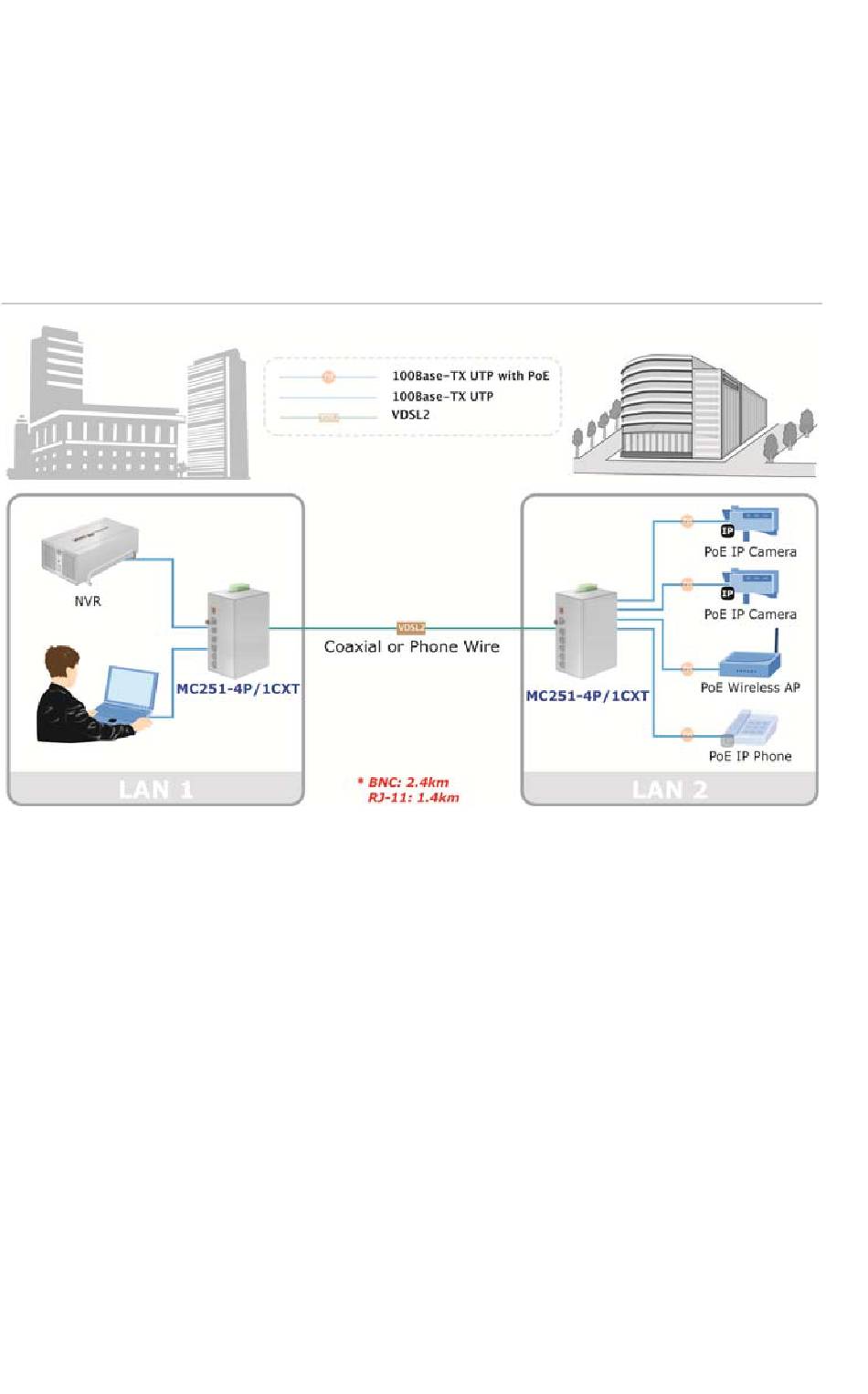

Figure 3: MC251-4P/1CXT BNC and RJ-11 connection
With 4 PoE, in-line power interfaces, the MC251-4P/1CXT can
build a power central-controlled IP phone system, IP camera
system, AP group for the enterprise. For instance, 4 camera /
AP can be easily installed around the corner in the company
for surveillance demands or build a wireless roaming
environment in the offices. Without an AC power outlet
limitation, it makes the installation of cameras or WLAN AP
more easily and efficiently.
