Hardware Overview
The MC251-4P/1CXT provides 4 RJ-45 with PoE, 1 RJ-11
and 1 BNC port for network line connection. The 4 RJ-45 ports
with two different data rates – 10Mbps and 100Mbps. The
MC251-4P/1CXT will distinguish the speed of the incoming data
automatically.
This section describes the hardware features of the PoE
Industrial Media Converter. For easier control of the MC251-
4P/1CXT , familiarity with its display indicators and ports. Front
panel illustrations in this chapter display the unit LED
indicators is important. Before connecting any network device
to the MC251-4P/1CXT , read this chapter carefully.

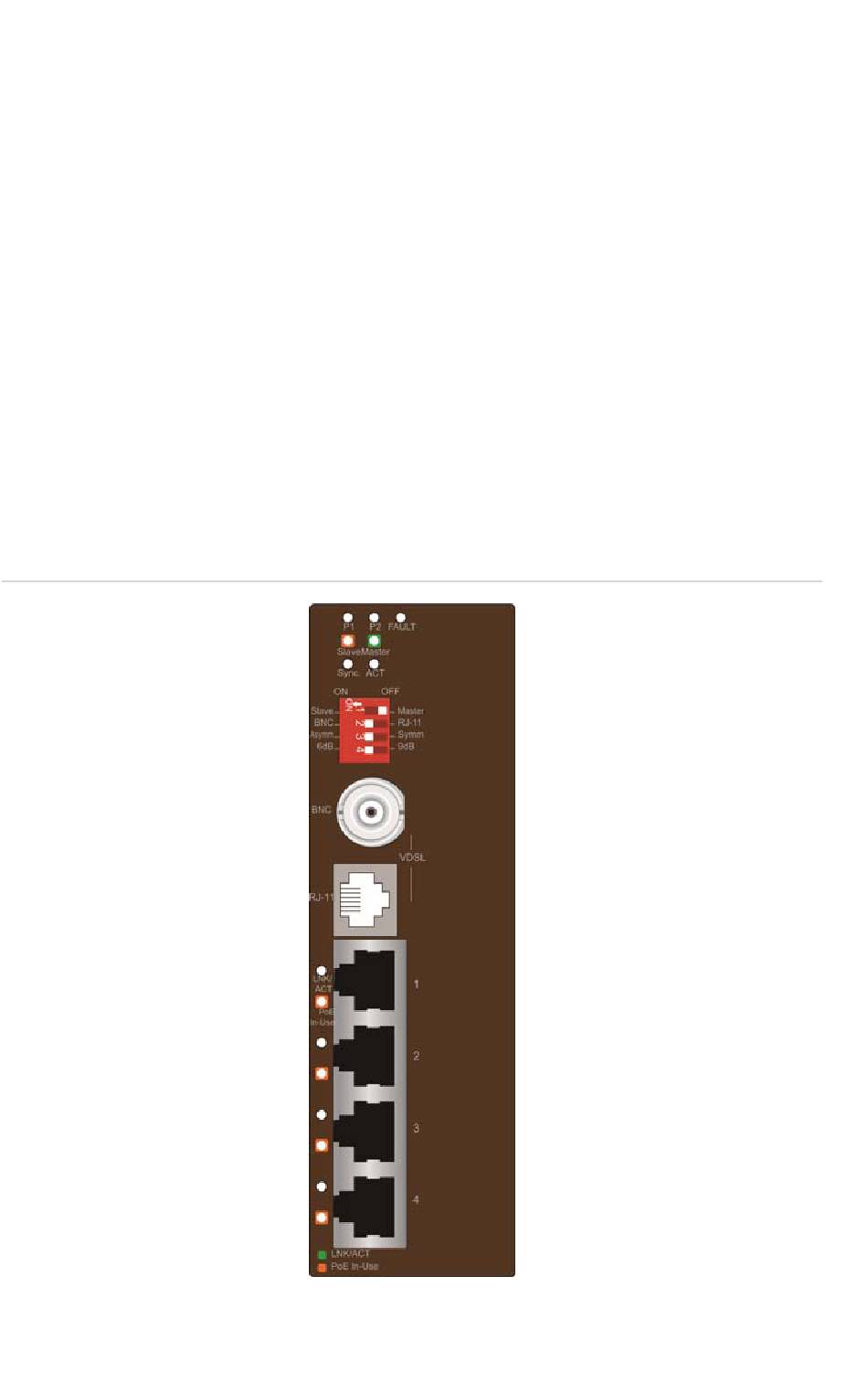

Figure 1: Front Panel
4
IFS MC251-4P/1CXT User Manual
