- Page 1 DED2500-E DED2500-M DED2500-EM DED2500-S DED2500-ES IFS Fiber Module Installation & Operation Instructions P/N 1062839 • REV B • ISS 01MAR12...
- Page 2 DED2500 series Left Side Right Side Network Connection (Electrical) Network Connection (Optical) Network Activity (Optical) Blinks with data transfer OFF: No Link ON: Link Link Network Activity (Electrical) Blinks with data transfer Link Speed (Electrical) OFF: 10 Mbps ON: 100 Mbps Power LED illuminates Power Connector...

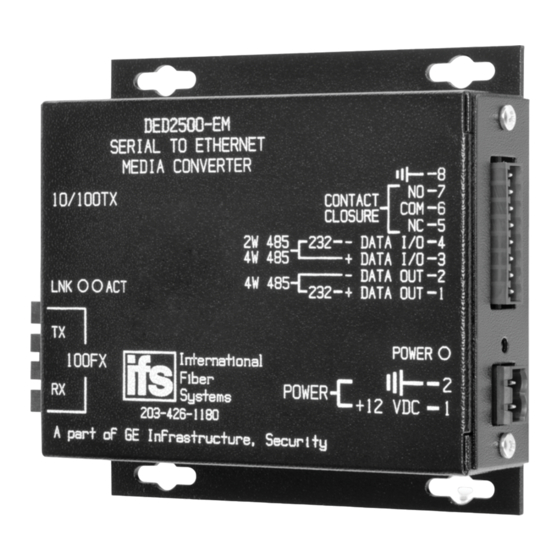

- Page 3 DED2500 series DED2500-EM - 10 SERIAL TO ETHERNET MEDIA CONVERTER NO - 9 CONTACT 10 /100 TX COM- 8 CLOSURE NC - 7 2W RS485 (-) - 6 2W RS485 (+) - 5 RS485 OUT (-) - 4 RS485 OUT (+) RS232 OUT - 3 RS485 IN (-) - 2 In te rn a ti o n a l RS485 IN (+) RS232 IN...
- Page 4 Initializing the DED2500 Upon power up and network connection into the DED2500, the address factory default is 192.168.1.100. The unit's serial port configuration must be completed prior to physically wiring to the data port. Opening the web browser to the default address, the log on screen will be displayed.
- Page 5 Intializing the DED 2500 continued. To set up the serial port, select the Serial Port Setup at the top of the Network Setup window. Note: The serial port must be configured prior to physically wiring the data port.
-
Page 6: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by International Fiber Systems, Inc. -
Page 7: Technical Support
888.329.0332 Note: Be ready at the equipment before calling. Online Another great resource for assistance with your Interlogix product is our online publication library. To access the library, go to our website at the following location: http://www.interlogix.com/transmission Many Interlogix documents are provided as PDFs (portable document format). To read these documents, you will... - Page 8 Product Disassembly Instructions for WEEE Per European Directive 2002/95/EC Waste Electrical and Electronic Equipment Required Tools: One number 2 Phillips (crosstip) screwdriver. One number 2 flat screwdriver. For the enclosed box version: 1. Locate and remove box cover securement screws. Usually, but not limited to, at least 4 screws.
- Page 9 Copyright © 2011 UTC Fire & Security. All rights reserved. Trademarks and Interlogix and IFS names and logos are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
