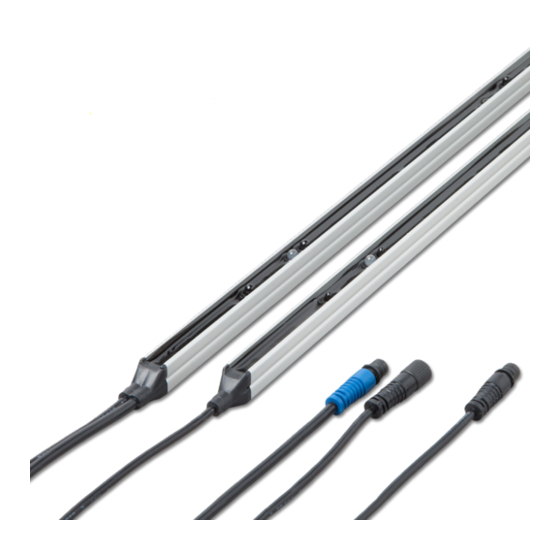

GridScan/Pro SI
Installation and Operation Manual
RoHS
EN 13849-1
CEDES AG is certified according to ISO 9001: 2015
English
Pages
1 – 23
Original version
116 681 | 210512 | V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GridScan/Pro SI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cedes GridScan/Pro SI

  • Page 1 GridScan/Pro SI Installation and Operation Manual RoHS EN 13849-1 CEDES AG is certified according to ISO 9001: 2015 English Pages 1 – 23 Original version 116 681 | 210512 | V 1.0...
  • Page 2: Table Of Contents

    Change of operation mode (blanking into static mode) System timing (RS485) Start-up LED status description Troubleshooting Maintenance Disposal Technical data Dimensions CEDES AG reserves the right to modify or change technical data without prior notice. © CEDES | V 1.0...
  • Page 3: Safety Information

     Do not use the sensor if it is damaged in any way.  Keep the instruction manual on site. Safety messages categories The GridScan/Pro SI should only be installed by authorized Warning of serious health risks and fully trained personnel! The installer or system...
  • Page 4: Introduction

    GridScan/Pro SI modes • Delivery mode - blanking The GridScan/Pro SI is a very reliable SIL 2 certified safety The delivery mode features door blanking and resolution, light curtain. It was developed and designed to safeguard according to EN 12978:2009. This means there are...
  • Page 5: Overview

    As soon as the detection area is clear again, the output switches to indicate that the area is "clear". The blanking system (blanking mode, Chapter 4.2) is designed to mount directly into the guide rails. As the door closes, the GridScan/Pro SI recognizes the door as such and does not switch the output. Figure 3:...
  • Page 6: Alignment

     Avoid interference from blinking lights or infrared light sources such as photo cells or other light curtains.  Do not install the GridScan/Pro SI in places where the emitter and receiver edges are directly exposed to light sources such as FL tubes or energy saving lamps.
  • Page 7: Door Blanking

    English Door blanking The GridScan/Pro SI can differentiate between a light beam interruption caused by an object and a light beam interruption caused by the closing door. The GridScan/Pro SI does this by analyzing the different interruption patterns. Closing door interruption pattern: The light beam interruption of a closing door starts at the topmost beam going downwards.
  • Page 8 Important for the static mode: When the GridScan/Pro SI is statically mounted (Figure 8) the door must not interrupt the beams (no door blanking).
  • Page 9: Electrical Connection

    Electrical connection The GridScan/Pro SI has only a serial interface for the communication. No physical Push-Pull or OSE output is available. The functionality of test input or output is implemented in the communication protocol. For a safe installation, the light curtain needs to be installed, activated and tested according to the door control unit guideline.
  • Page 10: Rs485 Communication Protocol

    0x51 Config: Set static 0x52 Config: Set blanking 0x53 Config: Get current Direction bit bit 7 This bit defines the direction form the transmitted message. Control unit to GridScan/Pro SI GridScan/Pro SI to control unit © CEDES | V 1.0...
  • Page 11 Reserved CEDES part number bit 0-47 CEDES part number (48 bit, ASCII encoded string): xxxyyy = CEDES part number of the receiver edge without space Example: 116xxx corresponds with label part number 116 xxx Reserved: bit 48-71 Reserved values, values not defined (mask out).
  • Page 12 Value between 0 – 65535, best alignment at the lowest possible value. Info: Request alignment mode No data exist. The light curtains set an alignment flag and send alignment value by the next interrupted power-up (details in Chapter 10.1.3). © CEDES | V 1.0...
  • Page 13  Length of bit 16 to 79 depends on the number of elements. A edge with 22 elements transmits only 5 full bytes (40 bit). Safety: Test input No data exist. The light curtain switches to the test mode (details see Chapter 10.1.2). © CEDES | V 1.0...
  • Page 14 Reserved values, values not defined (mask out). Config: Get current bit 7 bit 0 Current mode Current mode (signed 8 bit): bit 0-7 0x55 = Light curtain in static operation mode 0xAA = Light curtain in blanking operation mode © CEDES | V 1.0...
  • Page 15: Guidelines For Implementation (Rs485)

    10.1 Functions of GridScan/Pro SI The GridScan/Pro SI with RS485 interface transmits single element information of the light curtain, and in the blanking mode the door position to the control unit. The data can be collected in different communication modes.
  • Page 16: Safety Function Rs485 Cedes Communication Protocol

    10.2 Safety function RS485 CEDES communication protocol Data transmitted on the RS485 channel uses a safe, proprietary protocol which meets the requirements of SIL 2 as long as the following checks are performed by the door control unit.
  • Page 17: Implementation Of Rs485 Cedes Communication Protocol (Rc)

     Internal fault is active if bit 9 internal failure in the state of light curtain byte is set. 10.3 Implementation of RS485 CEDES communication protocol (RC) For the implementation, the command Info: Communication test (0x23) can be used. The package of this command is processed even if the information is not correct and helps to implement the protocol to the door control unit.
  • Page 18: Change Of Operation Mode (Blanking Into Static Mode)

    5. Set the new operating mode by command Config: Set static (0x51) for static mounting or Config: Set blanking (0x52) for blanking mounting. If the change of the operating mode is successful, the GridScan/Pro SI restarts automatically. The mode has changed. The static mode is visible after the power-up with a blinking sequence of green and off.
  • Page 19: System Timing (Rs485)

    In the streaming mode, the updated data is transmitted after a full main loop. If an additional request is received, the request is answered first, followed by the streaming information. Important: The GridScan/Pro SI can handle only one request per t CYCLE...
  • Page 20: Start-Up

    ™ defective (see Chapter 13) ™ Static mode configured (blin- king with 1 Hz / ≤2 min) Table 2: LED status description receiver edge ˜ = LED on ™ = LED off = LED blinking © CEDES | V 1.0...
  • Page 21: Troubleshooting

    ` Check if the selected configuration is correct (static mode selected) Important: Whenever a parameter is changed, the system must be restarted. If a problem persists, please contact your local CEDES representative. Visit www.cedes.com for contact data. 15. Maintenance 16. Disposal...
  • Page 22: Technical Data

    - Object detected Safety categories EN ISO 13849-1:2015, - No object detected Green Cat. 2, PL d EN 61508:2010, SIL 2 Power LED Tx: EN 61784-3:2017 Power ok Green EN 12978:2003, +A1:2009 EN 12453:2017 E device © CEDES | V 1.0...
  • Page 23: Dimensions

    18. Dimensions All dimensions in mm (for 22 elements) Receiver edge Emitter edge 1187 2130 2350 2420 US measurements All dimensions in inches (for 22 elements) Receiver edge 1.57 Emitter edge 13.00 46.73 83.86 92.52 95.27 © CEDES | V 1.0...
  • Page 24: Cedes Ag

    GridScan/Pro CEDES AG, Science Park | CH-7302 Landquart Phone: +41 81 307 2323 | Fax: +41 81 307 2325 | info@cedes.com | www.cedes.com...
