Installation Instructions

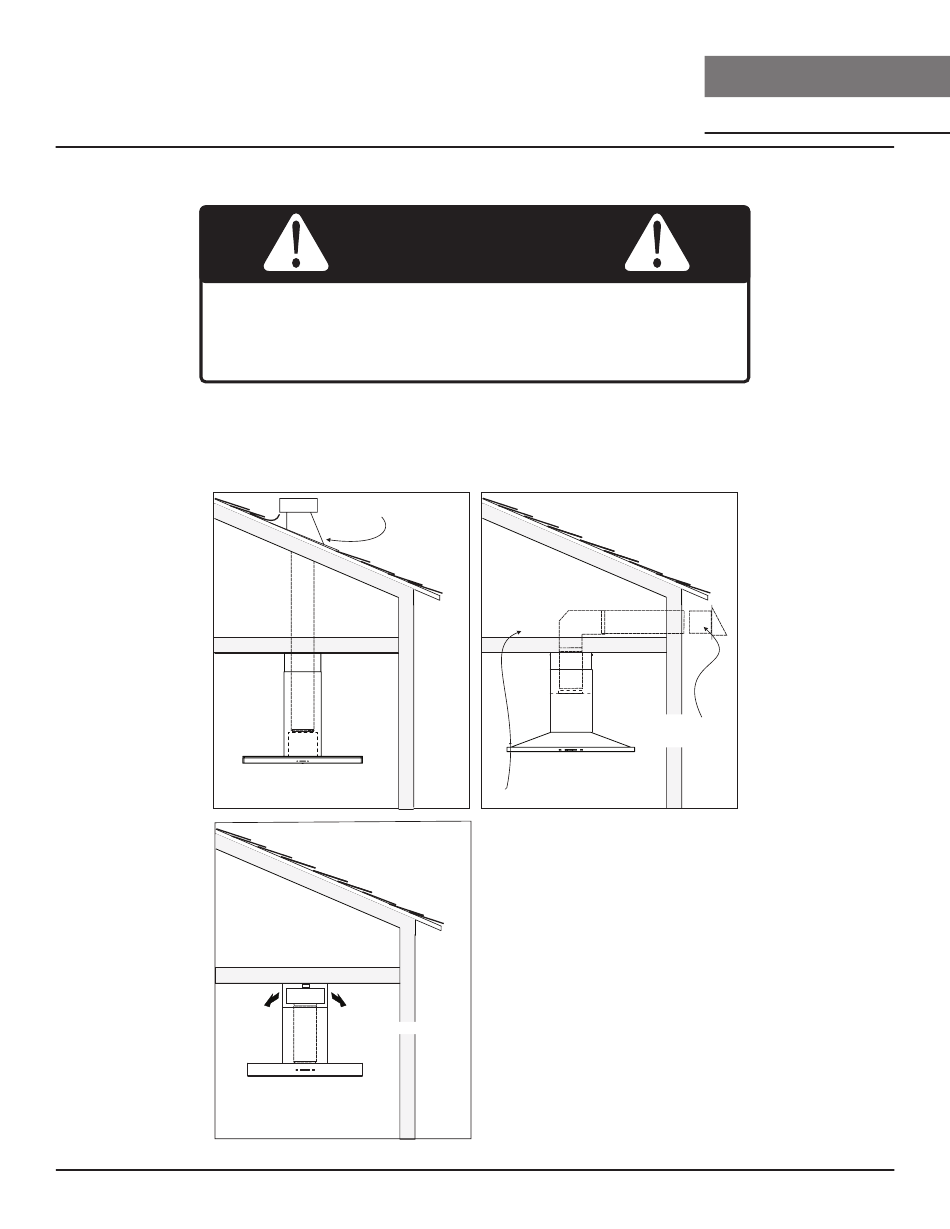

Ducting Options

spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
►
Use single wall rigid metal ductwork only.
►
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
10 Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
recirculating option.
Roof Pitch w/
Flashing & Cap
ductless
recirculating
(blower
side wall cap
housing)
w/ gravity damper
Soffit or crawl space
C O R E
Z A Z , Z LC, Z R M , Z R E
I S L A N D
