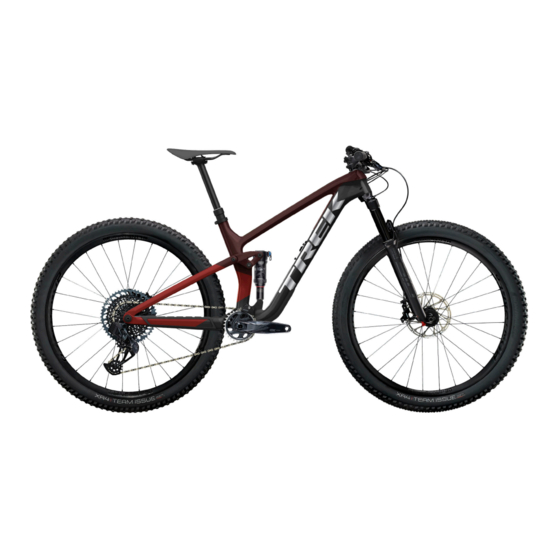

Top Fuel
Contents
Headset with
Knock Block
Derailleur hanger
Active Braking Pivot
(ABP)
Rocker pivot
Cable routing
Main pivot
Frame guards —
carbon frame
Shock mounts
Frame guards —
aluminum frame
Product Support | MY22 Top Fuel Parts Quick Reference
Down tube storage
Legend
Nm
Page 1 of 11
Apply grease
Do not apply grease
Apply threadlocker
Torque
Zip tie
July 13, 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the MY22 Top Fuel and is the answer not in the manual?

Questions and answers

Summary of Contents for Trek MY22 Top Fuel

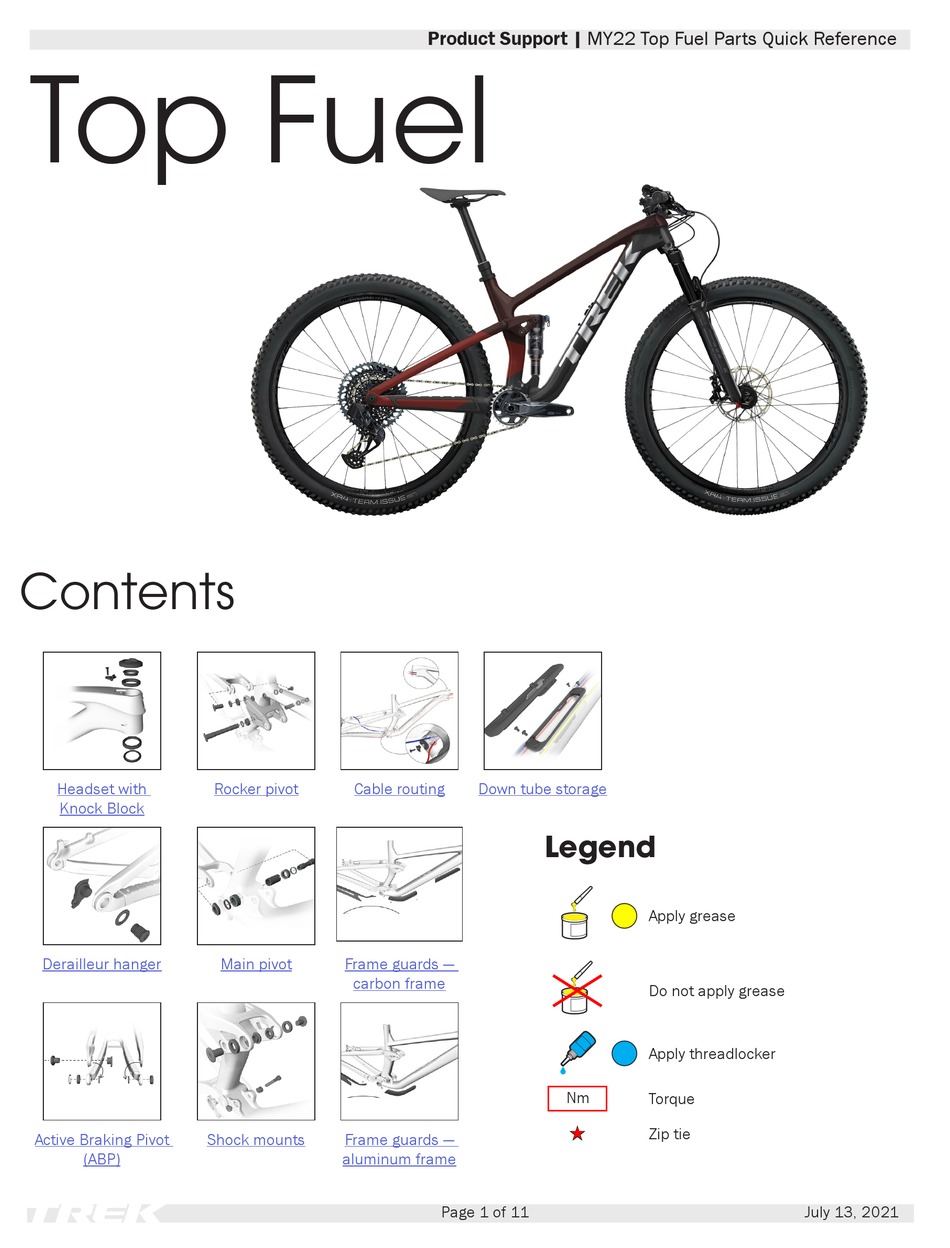

  • Page 1 Product Support | MY22 Top Fuel Parts Quick Reference Top Fuel Contents Headset with Rocker pivot Cable routing Down tube storage Knock Block Legend Apply grease Derailleur hanger Main pivot Frame guards — carbon frame Do not apply grease Apply threadlocker Torque ...
  • Page 2 Product Support | MY22 Top Fuel Parts Quick Reference Headset with Knock Block Notice: To operate the bicylce without a Knock Block chip, a non-block chip must be installed. Upper bearing cover Chip bolt — 5252161 Knock Block chip Compression ring —...
  • Page 3 Product Support | MY22 Top Fuel Parts Quick Reference Derailleur hanger 25Nm Derailleur hanger Washer, 30mm — W583423 Bolt Page 3 of 11 July 13, 2021...
  • Page 4 Product Support | MY22 Top Fuel Parts Quick Reference Active Braking Pivot (ABP) Carbon frame Aluminum frame Thru axle — W583469 Non-driveside dropout — W5251141 Retaining ring — W5251279 — W5272776 Bearing — W5256340 Dropout — W5269707 Spacer — W583422...
  • Page 5 Product Support | MY22 Top Fuel Parts Quick Reference Rocker pivot Seatstay 17Nm 17Nm 22Nm Bolt — W600629 Hat-style washer (2mm hat height) — W5257190 Bearing — W5257592 Rocker axle — W600627 Spacer — W290057 Bearing — W5256341 Seat tube pivot sleeve — W310155 Nut —...
  • Page 6 Product Support | MY22 Top Fuel Parts Quick Reference Main pivot 30Nm Chainstay Nut — W584134 Spacer — W440921 Bearing — W5256338 Main pivot sleeve — W500592 Main pivot axle — W601376 Page 6 of 11 July 13, 2021...
  • Page 7 Product Support | MY22 Top Fuel Parts Quick Reference Shock mounts 17Nm 17Nm 10Nm Bolt — W5257188 Bearing — W5257592 Hat-style washer (4mm hat height) — W5257189 Lower shock Mino nut — 5280295 Lower shock Mino spacer Socket head cap screw — W5251046...
  • Page 8 Product Support | MY22 Top Fuel Parts Quick Reference Cable routing         Carbon frames only. 1.7Nm Dropper cable Rear brake cable Derailleur cable Rubber housing guide — 5275988 Exit guide Bolt — W532763 ...
  • Page 9 Product Support | MY22 Top Fuel Parts Quick Reference Frame guards — carbon frame 0.8Nm 0.8Nm 0.8Nm 0.8Nm 0.8Nm Chainstay guard — W5257206 Button head screw — 1042535 Button head screw — 327526 Downtube guard — 5280104 Shuttle guard — W5257546 Frame protection decal —...
  • Page 10 Product Support | MY22 Top Fuel Parts Quick Reference Frame guards — aluminum frame 0.8Nm     Chainstay guard — W5259518 Button head screw for chainstay guard — 1042535 Downtube guard — W5258504 Frame protection decal — W326986 ...
  • Page 11 Product Support | MY22 Top Fuel Parts Quick Reference Down tube storage Carbon frame Aluminum frame 1.5Nm 1.5Nm Storage door Button head screws — 547053 — W583862 (includes nuts, not used on carbon frames) Storage door Button head screw — W583862 —...
