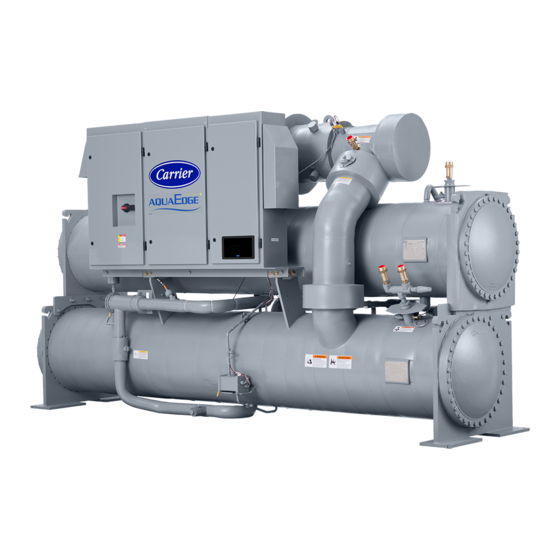

Carrier AquaEdge 23XRV Installation Instructions Manual

High-efficiency variable speed screw chiller with greenspeed intelligence and pic6 controls 50/60 hz r-134a
Hide thumbs Also See for AquaEdge 23XRV:
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Job Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 1 - Receive the Machine . . . . . . . . . . . . . . . . . 3
Step 2 - Rig the Machine . . . . . . . . . . . . . . . . . . . . 13
Step 4 - Install VFD . . . . . . . . . . . . . . . . . . . . . . . . . 30
Step 5 - Install Machine Supports . . . . . . . . . . . . . 36
Step 6 - Connect Piping . . . . . . . . . . . . . . . . . . . . . 38
COMPLETING THE INSTALLATION . . . . . . . . . . . . . 61
Checking the Installation . . . . . . . . . . . . . . . . . . . . . 61
Oil Pump and Oil Heater . . . . . . . . . . . . . . . . . . . . . . 61
Connect Control Wiring . . . . . . . . . . . . . . . . . . . . . . 61
Carrier Comfort Network Interface . . . . . . . . . . . . . 61
Communication Option Wiring . . . . . . . . . . . . . . . . 62
Lead-Lag Control Wiring . . . . . . . . . . . . . . . . . . . . . 62
Install Field Insulation . . . . . . . . . . . . . . . . . . . . . . . 62
INSTALLATION START-UP REQUEST
CHECKLIST. . . . . . . . . . . . . . . . . . . . . . . . . . . CL-1
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53230016-01
High-Efficiency Variable Speed Screw Chiller
with Greenspeed
Installation Instructions
Page
Printed in U.S.A.
Form 23XRV-8SI
®
Intelligence and PIC6 Controls

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can be
hazardous due to system pressure and electrical components. Only
trained and qualified service personnel should install, repair, or
service air-conditioning equipment.
Untrained personnel can perform basic maintenance functions of
cleaning coils and filters and replacing filters. All other operations
should be performed by trained service personnel. When working
on air-conditioning equipment, observe precautions in the
literature, tags and labels attached to the unit, and other safety
precautions that may apply.
Follow all safety codes. Wear safety glasses and work gloves. Use
quenching cloth for unbrazing operations. Have fire extinguisher
available for all brazing operations.
It is important to recognize safety information. This is the safety-
alert symbol
. When you see this symbol on the unit and in
instructions or manuals, be alert to the potential for personal
injury.
Understand the signal words DANGER, WARNING, CAUTION,
and NOTE. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is used
to identify unsafe practices, which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability,
or operation.
Screw liquid chillers are designed to provide safe and reliable ser-
vice when operated within design specifications. When operating
this equipment, use good judgment and safety precautions to avoid
damage to equipment and property or injury to personnel.
Failure to follow these procedures will result in severe per-
sonal injury or death.
UNIT AND ELECTRICAL CONSTRUCTION is designed
for use in a non-hazardous environment (non-flammable and
non-explosive). DO NOT install the chiller in a hazardous
(flammable or explosive) location or environment.
Pg 1
®
AquaEdge
23XRV
50/60 Hz
R-134a
DANGER
6-22
Replaces: NEW
