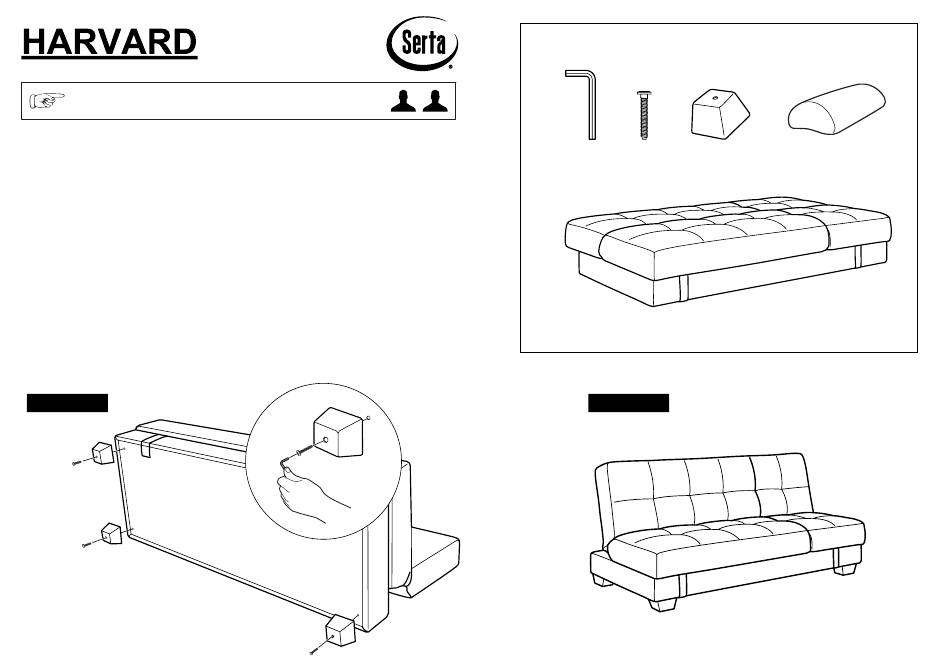

Serta HARVARD Assembly Instructions

CAUTION: At least two adults are required to safely complete performing this task.

Other lifting attempts may risk back injury due to large and heavy part(s).

ASSEMBLY INSTRUCTIONS

Avoid using sharp objects such as a knife to cut open the packing as you may accidentally damage the upholstery.

1. Carefully place sofa cushion on a clean flat surface. A flat configuration of the

sofa indicate that it is in bed position (refer opereting your unit on page 2).

2. Unpack hardware pack from the storage compartment (refer accessing storage

compartment on page 2).

3. Lift and place sofa cushion as shown in DIAGRAM 1 for assembly.

4. Align legs onto the predrilled hole and secure each leg with bolt using the

provided Allen key.

5. Finally, carefully lift and turn assembled unit onto its legs.

DIAGRAM 1

PAGE 1 OF 2

PARTS AND HARDWARE

Allen Key

Bolt

Leg

Note: Individual parts are not shown to scale.

DIAGRAM 2

Pillow

Sofa Cushion

TOLL FREE 1-877-693-8866 LIFESTYLE SOLUTIONS

Table of Contents

Need help?

Do you have a question about the HARVARD and is the answer not in the manual?

Page 1 PARTS AND HARDWARE CAUTION: At least two adults are required to safely complete performing this task. Other lifting attempts may risk back injury due to large and heavy part(s). ASSEMBLY INSTRUCTIONS Pillow Allen Key Bolt Avoid using sharp objects such as a knife to cut open the packing as you may accidentally damage the upholstery. 1.
Page 2 OPERATING YOUR UNIT Converting to Sofa or Lounger Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in place by releasing to the sound of a click. IMPORTANT: During conversion, ensure lifting is done from the back of backrest. Converting to Bed From sofa or lounge position, lift backrest all the way upwards until the last click is heard which unlocks the mechanism and carefully return to a flat position.
