Solar Cell I-V Test System (Manual)
9.9
Controls
(I) Measure
Clicking this button will start the measurement using the chosen settings.
•
This button cannot be clicked if the software has not detected the test system.
•
(II) Abort
Stops a measurement that is currently in progress.
•
9.10 Plot Controls
(I) Position Readout
Whilst the mouse cursor is over the plot in the Characterisation and Stabilised Current tabs, the x
and y position of its location are displayed in the bottom-right of the plot, as shown in Figure 9.16.
Ossila.com

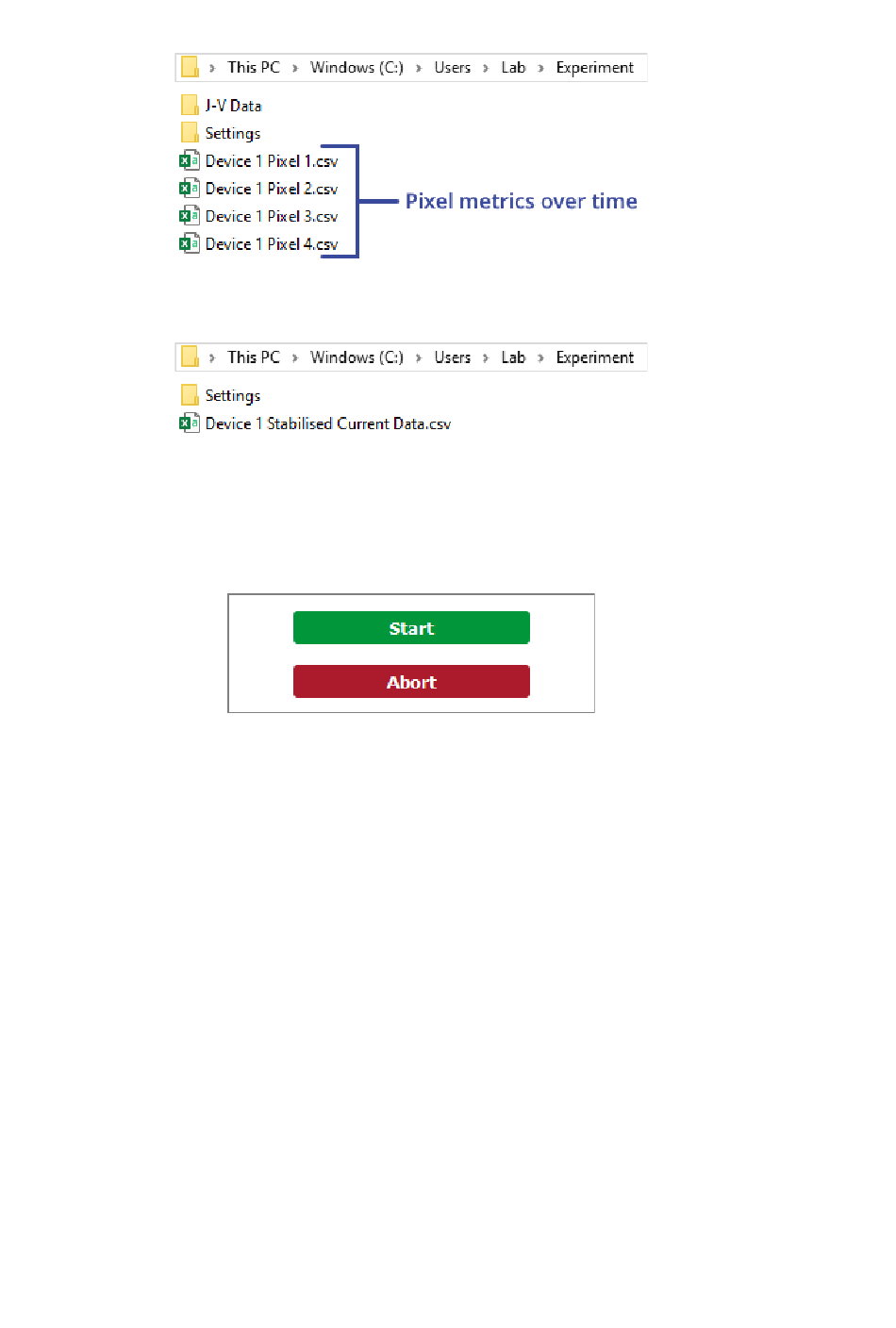

Figure 9.13. Stabilised Current Output save data format.
Figure 9.14. Solar Lifetime Measurement save data.
Figure 9.15. Controls for the measurements.
22
User Manual
Ossila Limited © 2022
