Solar Cell I-V Test System (Manual)
9.3.1 System Settings
(I) System Address
Select the COM port or IP address of the connected unit you intend to use (USB and
•
Ethernet connection respectively).
I. This box will be populated automatically with the addresses of any units connected
to the computer.
(II) Voltage Source
Select which SMU channel of the Source Measure Unit the test board is connected to.
•
(III) Range
Select the range of currents to be used for the measurement.
•
I. This defines the upper limit and accuracy of current measurements that can be
performed by the unit. The values for each range are given in Table 9.1.
II. The maximum current values for each range are shown in the range selection box.
Ossila.com

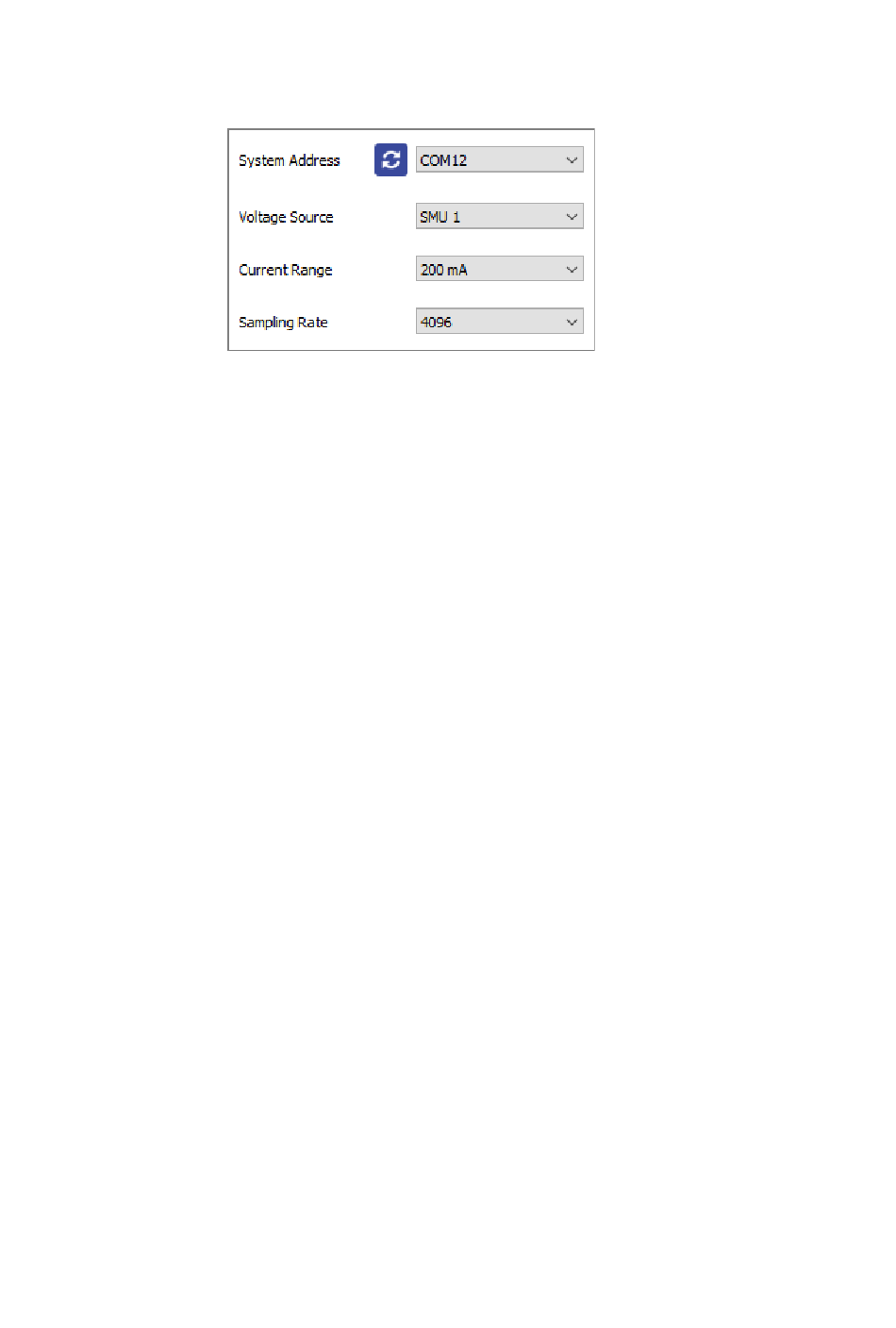

Figure 9.4. System settings.
