7.

System Components

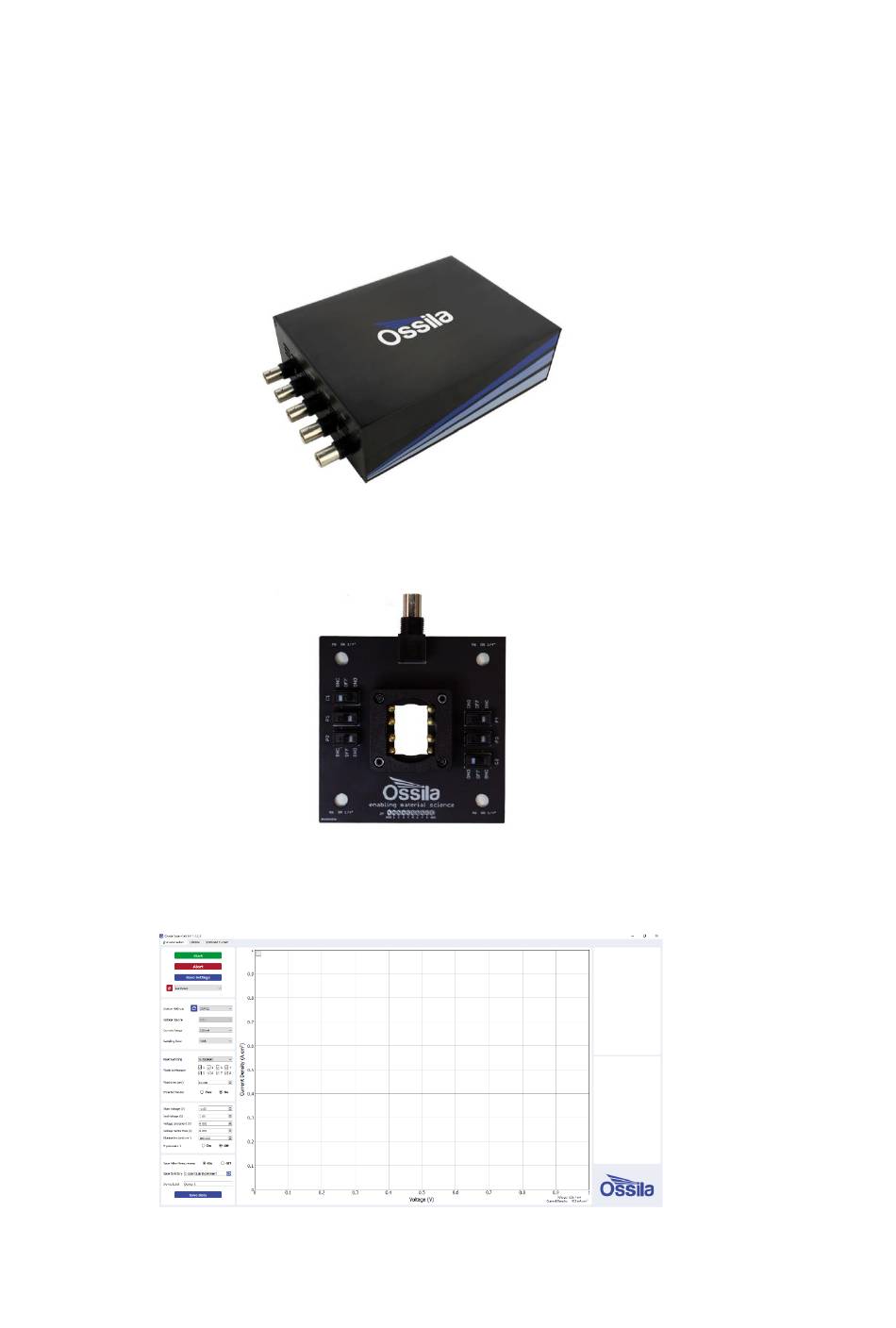

The Solar Cell I-V Test System (Manual) is comprised of 3 items: the Source Measure Unit (Figure
7.1), Push-Fit Test Board (Figure 7.2), and the Ossila I-V Curve software (Figure 7.3).
Figure 7.1. Source Measure Unit.
Figure 7.2. Push-Fit Test Board.
Figure 7.3. Solar Cell I-V Test System software.
