Saving And Loading Settings; Saving Results - Ossila Solar Cell I-V Test System User Manual

Solar Cell I-V Test System (Manual)
9.7

Saving and Loading Settings

(I) Save Settings
Saves the current settings as a profile that can be loaded quickly for use at another time.
•
When clicked, you will be prompted to name the settings profile.
•
I. If the name is already in use, you will be asked if you wish to overwrite the previous
profile.
II. The name cannot contain the characters: \ / : * ? " < > |
The settings profile will be added to the drop-down box using the given name.
•
(II) Settings Profiles
Select a saved settings profile from the drop-down box.
•
I. The settings fields will be populated with the saved values.
Settings profiles can be deleted by selecting the profile, and then clicking the red 'delete'
•
button next to the drop-down box.
9.8

Saving Results

(I) Save After Measurement
Set whether the measurement data will be saved after the measurement has completed.
•
Ossila.com

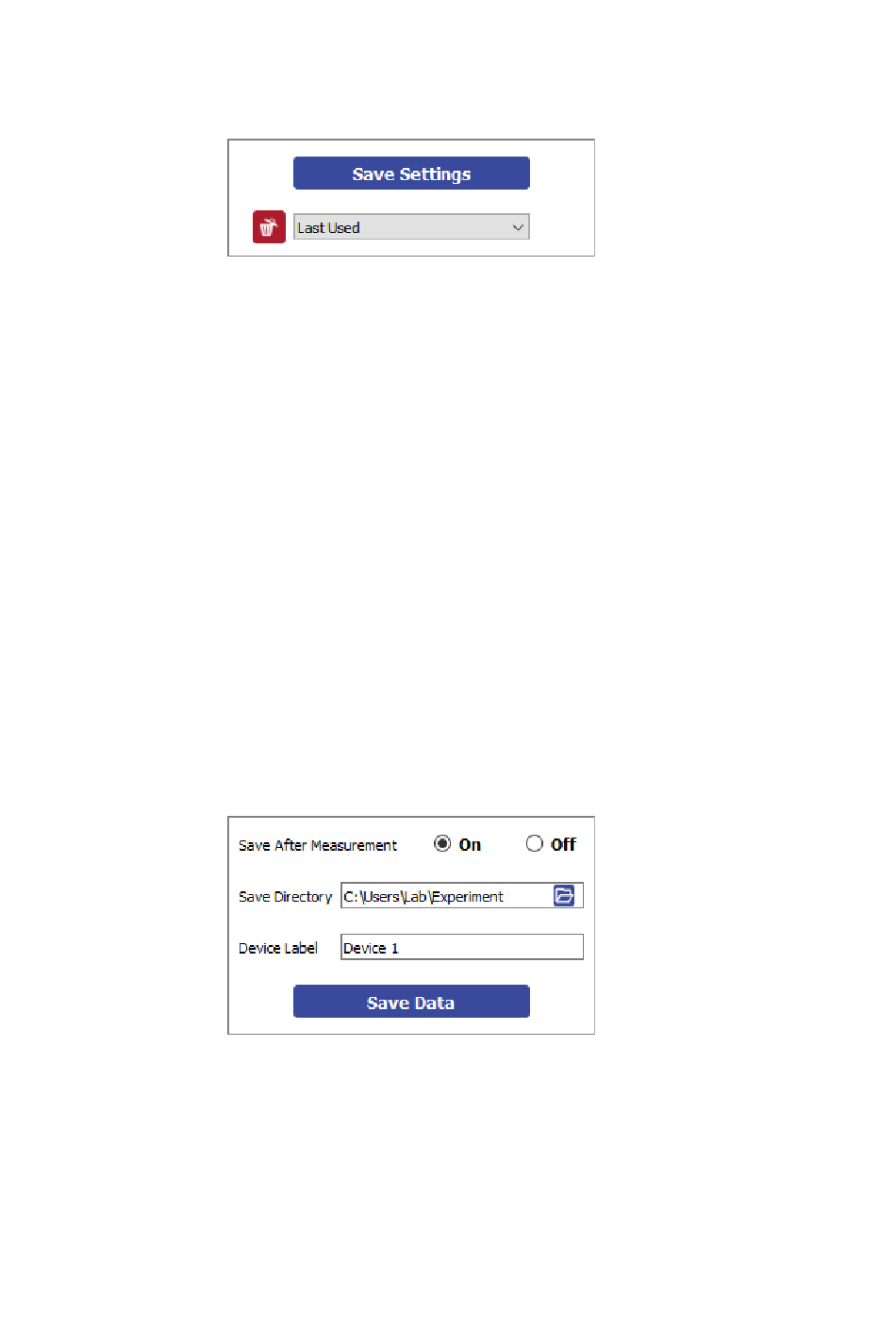

Figure 9.10. Controls for saving and loading settings profiles.
Figure 9.11. Saving measurement data settings.
20
User Manual
Ossila Limited © 2022
