Boiler Bypass Switch

Wire Enclosure

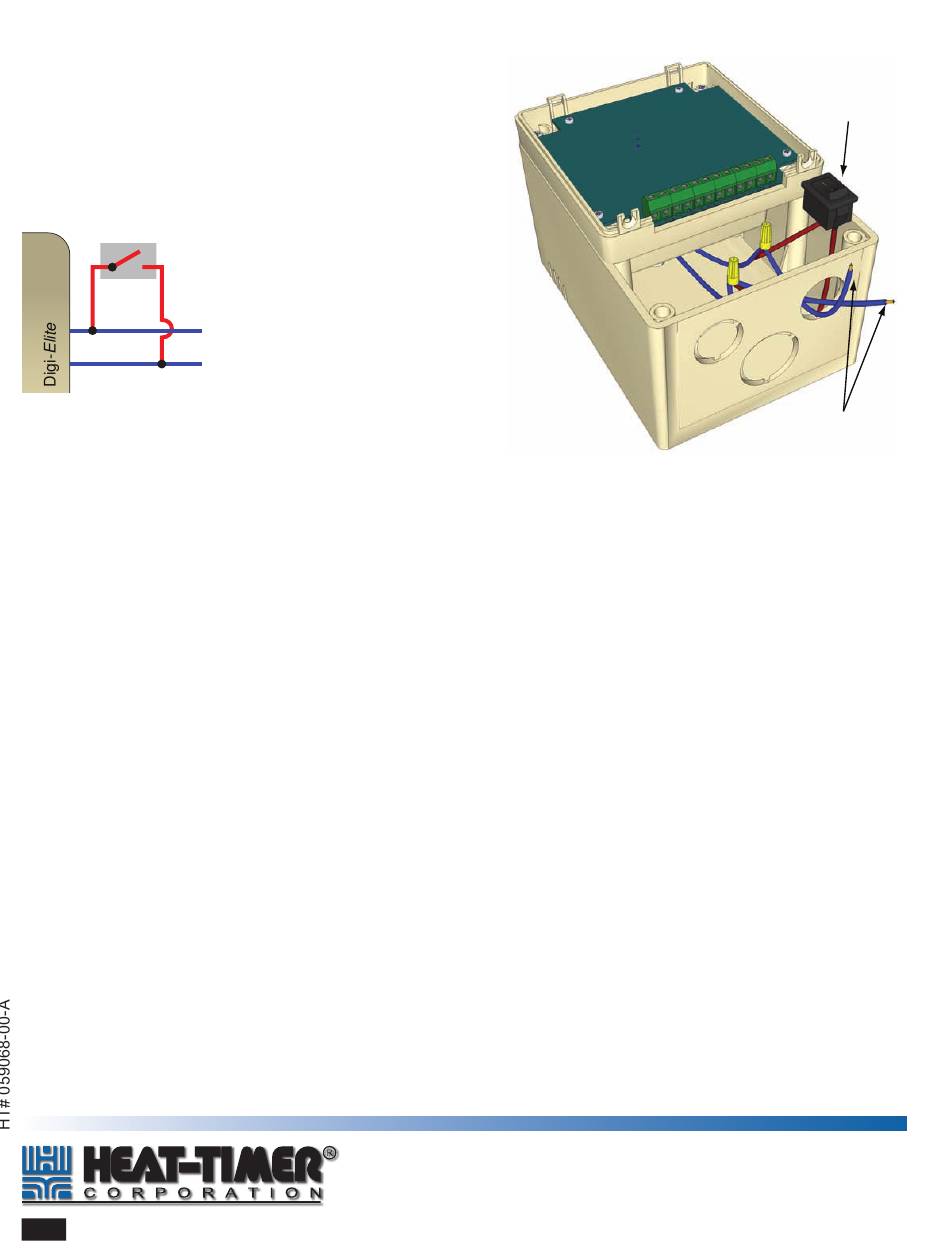

Switch in parallel
This option allows the user to switch the boiler On
to boiler
regardless of the Digi-Elite boiler relay status. It is useful
when servicing the boiler or in emergency situations.
Enclosure
Switch
To Boiler TT
Terminals
Boiler
Blue Wires
Connect to Boiler
TT terminals

Specifications

Switch Rating (Available on some models only) . . . . . . . . . . . . . . SPST maximum 2 Amp at 120 VAC/60 Hz
Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4" x 5-½" x 3-½"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Pound
