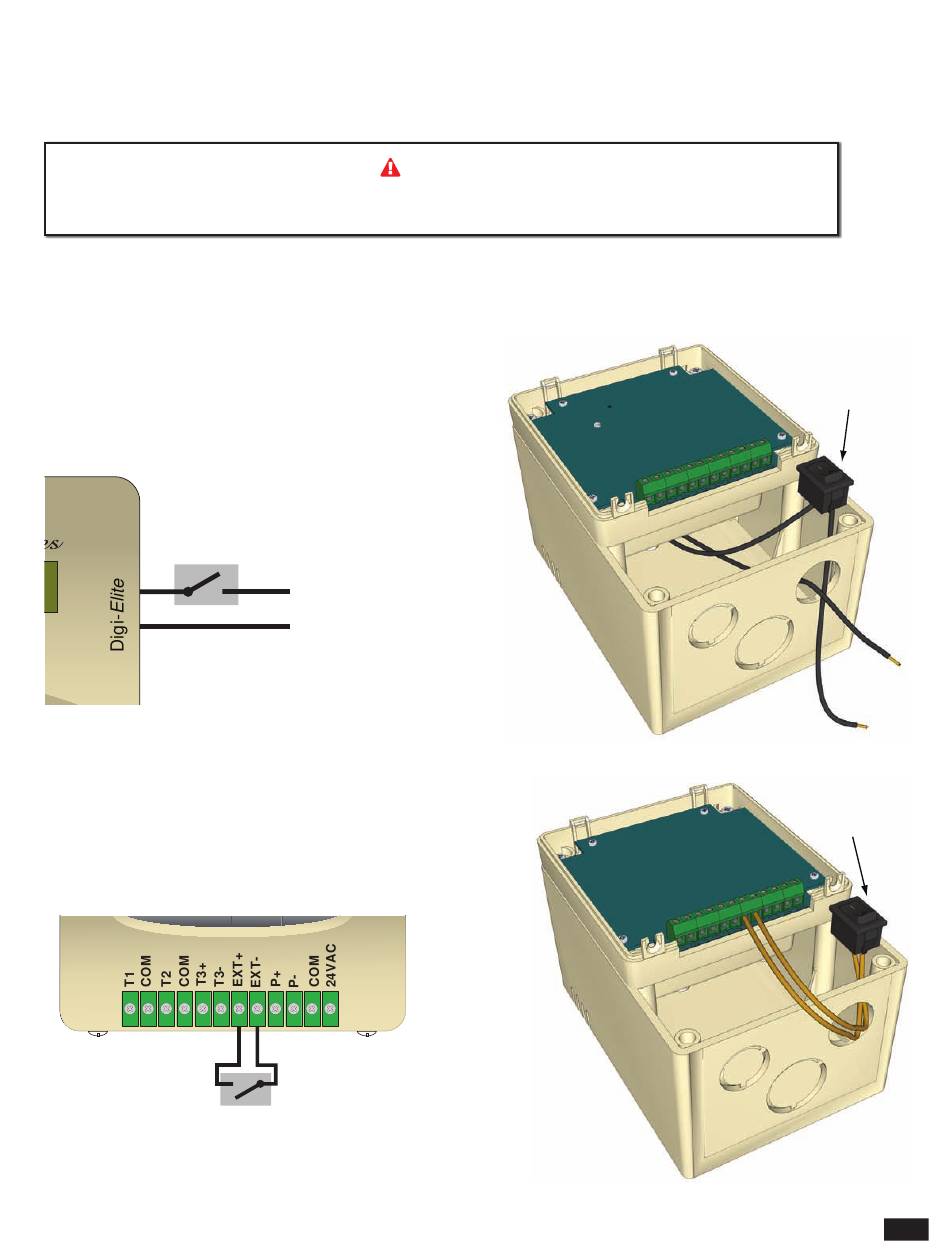

Wiring the Switch

All the Digi-Elite input wiring must pass through the Input Wire Holder in the Wiring Cover.
• D O NOT create additional holes in the enclosure as this may void the Digi-Elite and Wiring Enclosure warranties.
• All wiring inside the Wiring Enclosure must be rated for 120VAC.
The Wiring Cover may be equipped with a switch that can be used in many ways. The following is a list of options to
wire the switch. The switch is rated 2 Amp at 120VAC.

Power Switch

This option allows the user to turn the power to the
Digi-Elite on or off. In this scenario, the switch must be
wired to break the 120VAC Line wire.\
Enclosure
Switch
Power
M
Black Wires

Summer/Winter Switch

This option allows the user to switch the Digi-Elite
functionality on or off using the EXT+ and EXT- input
terminals. This is useful when used during the off-season.
SET
Encosure Switch
WARNING
L
120V
N
Wire Enclosure
Switch to 120V
N
120V
L
Wire Encosure
Switch to EXT±
3
