Harrod VOL-033 Quick Start Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Code:
Code:
Code:
Code:
VOL-033 & 034
Product:
Product:
Product:
Product:
SITTING VOLLEYBALL POST (BOLT DOWN OR SELF WEIGHTED)
1: Make sure you read the Instructions before assembling the product. Then unpack and check you have
the correct amount of parts as per instructions.

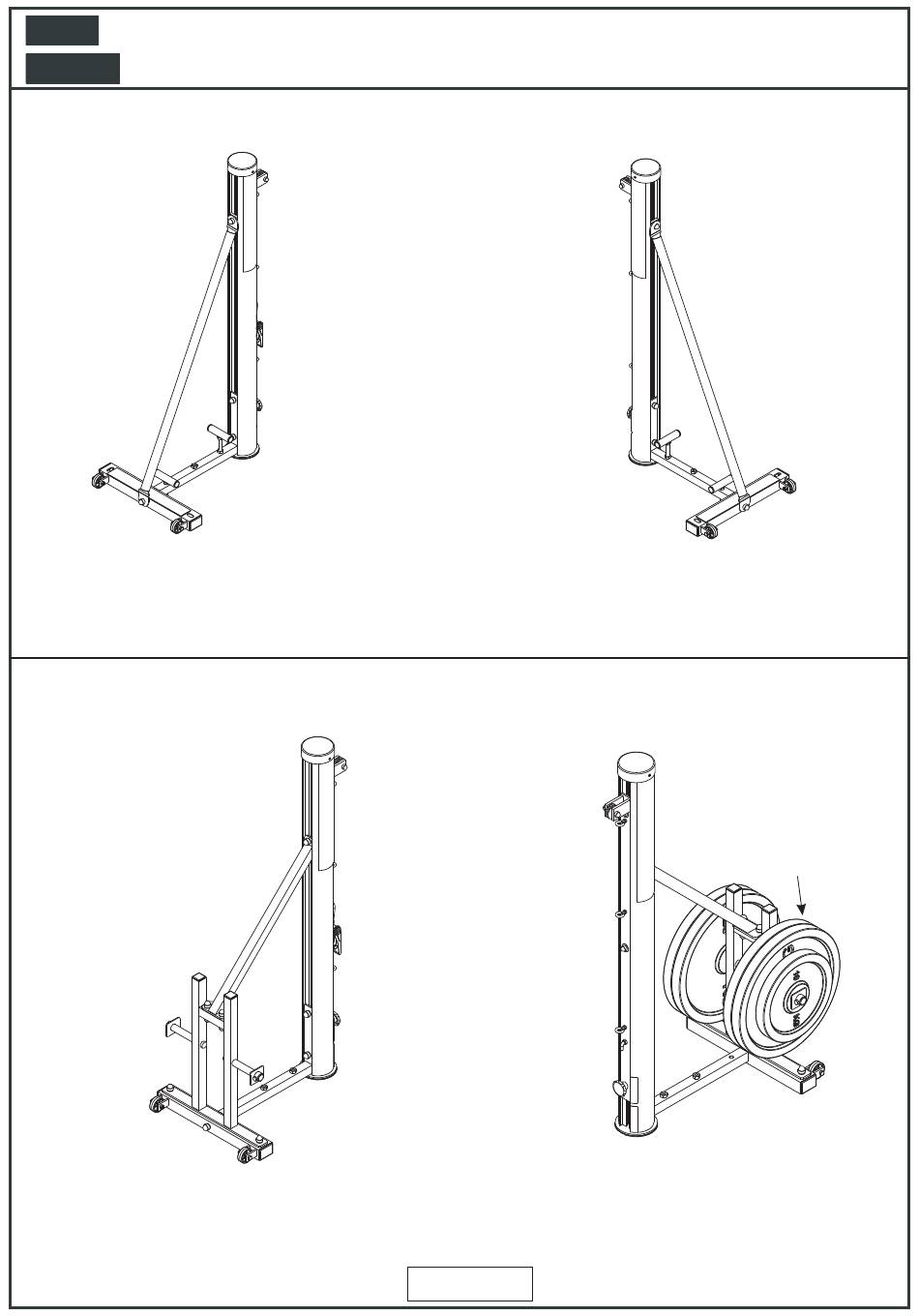

VOL-034 - SITTING VOLLEYBALL (SELF WEIGHTED)
VOL-033 - SITTING VOLLEYBALL (BOLT DOWN)
Note: Weights Not Sold with this product
PAGE 1
INS333
Revison 0
20/05/2014
©
Harrod UK Limited
WEIGHTS
NOT SUPPLIED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOL-033 and is the answer not in the manual?

Questions and answers

Related Manuals for Harrod VOL-033

Summary of Contents for Harrod VOL-033

  • Page 1 Harrod UK Limited 1: Make sure you read the Instructions before assembling the product. Then unpack and check you have the correct amount of parts as per instructions. VOL-033 - SITTING VOLLEYBALL (BOLT DOWN) WEIGHTS NOT SUPPLIED VOL-034 - SITTING VOLLEYBALL (SELF WEIGHTED)
  • Page 2 Mark at location shown below. Drill Ø20 holes to the depth to suite purchased sockets. 2 Point Socket Centres are 8351mm (8.351m) (NOTE: 8300mm (8.3m) is Harrod Suggested hole Centres, this can range between 8300mm (8.3m) to 9300mm (9.3m) 4 Point Socket centres are 8511mm x 400mm (8.511m x 0.4m).
  • Page 3 Code: Code: Code: Code: VOL-033 & 034 Product: Product: Product: Product: SITTING VOLLEYBALL POST (BOLT DOWN OR SELF WEIGHTED) © © © © © © © © © Harrod UK Limited VOL-033 x1 VOL-033 x1 VOL-034 x1 VOL-034 x1 FEP207...
  • Page 4 Code: Code: Code: Code: VOL-033 & 034 Product: Product: Product: Product: SITTING VOLLEYBALL POST (BOLT DOWN OR SELF WEIGHTED) © Harrod UK Limited 2: Unscrew the bolts from the back of either FEP206 or FEP207 then slide one FEP241 to the upright & locate on the square head bolts in the upright.
  • Page 5 Code: Code: Code: Code: VOL-033 & 034 Product: Product: Product: Product: SITTING VOLLEYBALL POST (BOLT DOWN OR SELF WEIGHTED) © © © © Harrod UK Limited VOL-034 - Self Weighted Version Only FEP030 1: The back stanchion is not required. Remove...
  • Page 6 Code: VOL-033 & 034 Product: SITTING VOLLEYBALL POST (BOLT DOWN OR SELF WEIGHTED) © Harrod UK Limited SITTING VOLLEYBALL NET 6.5m x 0.8m VOL-031 - (Supplied Separately) DUMMY POST WINDER POST 1: Feed the head line rope over the roller on the Dummy Post and connect to the below the bottom eyelet.

This manual is also suitable for:

Vol-034
