Harrod VOL-050 Instructions

Code:
VOL-050
Product:
MATCHPLAY VOLLEYBALL
1. 1 x Matchplay VBL Winder Post
2. 1 x Matchplay VBL Base including fittings
3. 1 x Matchplay VBL Dummy Post
4a. 2 x Brace
(packed with FEQ970/971)
4b. 1x Straps
(packed with FEQ971)
Floor sockets are not included and should be ordered
separately.
Solid Floors require 4 off SHP-001
Suspended Floors require 4 off SHP-100
3
2
490mm 0.5 to 1m

Pack Contents:

(FEQ971)
(FEQ976)
(pair)
(FEQ970)
(PEQ973)
(FPK971)

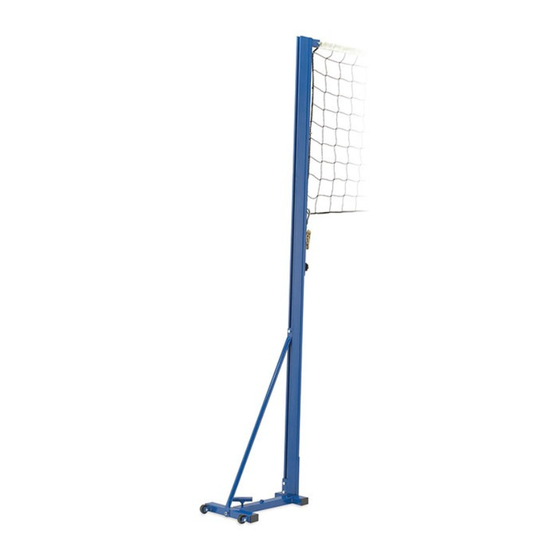

View of Product
1

Floor Socket Installation:

All sockets should be installed by a specialist, using the
following guidelines. Please contact your distributor for
recommended specialist fitting engineers.
4a
Mark at location shown in FIG.1. Drill Ø20 holes to the
depth to suit purchased sockets. Socket centres are 11m
x 0.4m (NOTE: 11m is the Harrod suggested centres, this
can range between 10.98m and 11.98m to meet ther
regulation distance between upright and sideline).
Note: Longer sockets are required for sprung floors
(contact your distributor for guidance).
Net Not Included
9m OUTER SIDELINES OF COURT
11m SOCKET CENTRES (see note above)
Socket Installation Dimensions - Plan View
Fittings Pack (packed within base)
5. 2 x M10 Nylock Nut
6. 6 x M10 Unistrut Nut
7. 8 x M10x20 Set Screw
8. 2 x M10x40 Hex Bolt
9. 2 x Base Back Plate
10. 4 x 'T'- Bolt
MAKE SURE YOU READ THESE
INSTRUCTIONS CAREFULLY BEFORE
ASSEMBLING YOUR POSTS
INS691
Revision 9
24/10/17
© Harrod UK Limited
FPK970
(BOL202)
(BOL204)
(BOL342)
(BOL322)
(PEQ976)
(PEQ977)
0.5 to 1m
FIG.1
