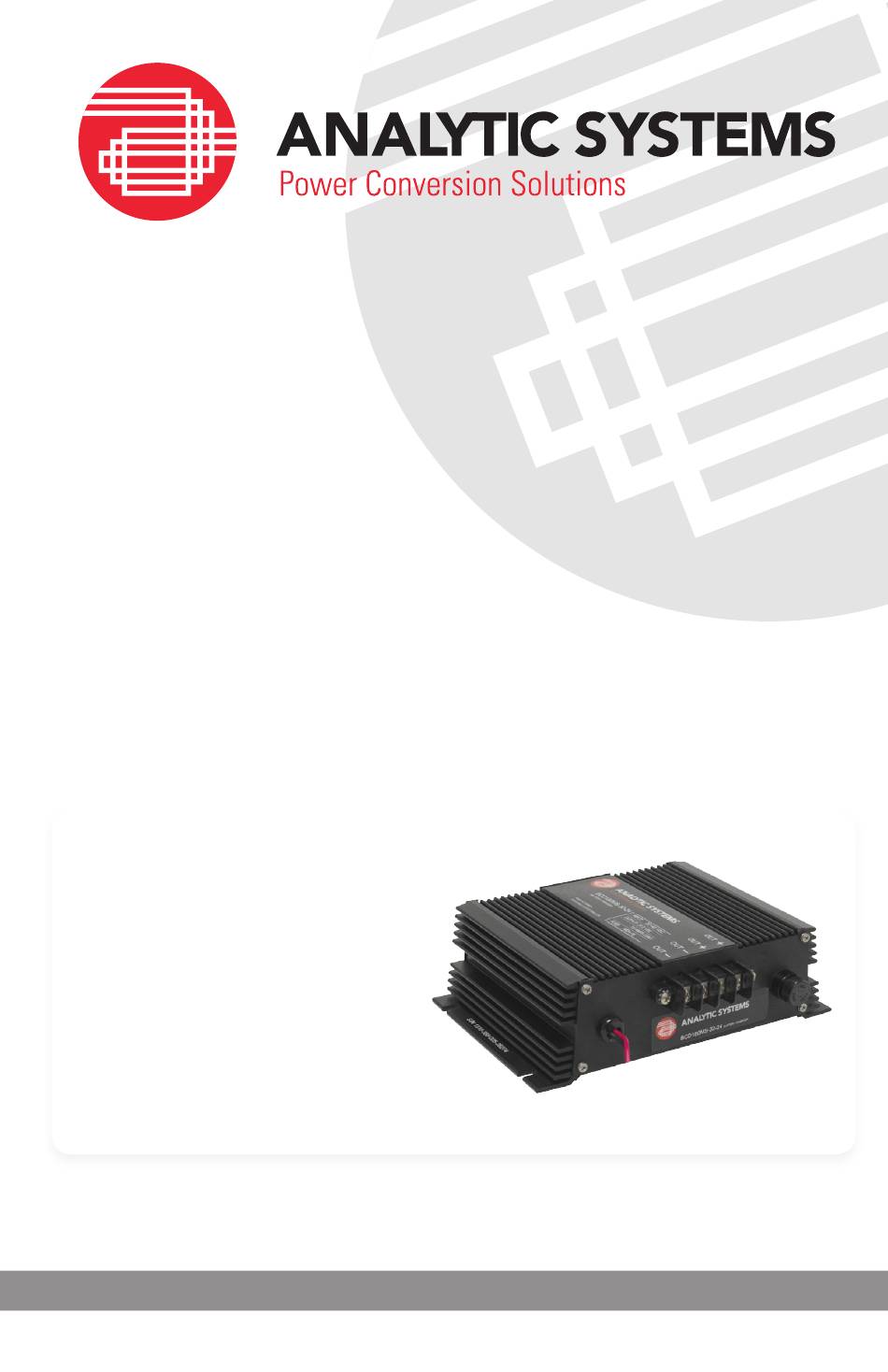

- Page 1 INSTALLATION & OPERATION MANUAL BCD180 SERIES DC Battery Charger An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA)
- Page 2 Copyright (2005-2016) Analytic Systems Ware (1993) Ltd. Revised May 17, 2016...
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for the battery charger. ALL BATTERY CHARGERS 1. CAUTION — To reduce risk of injury, charge only lead acid or sealed gel cell type rechargeable batteries. -
Page 4: Battery Charger Location
4. O/P CONNECTION PRECAUTIONS Connect and disconnect all DC connections in a safe manner. Analytic Systems does not recommend the use of the BCD180 Series Battery Chargers in life support applications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. -
Page 5: Specifications

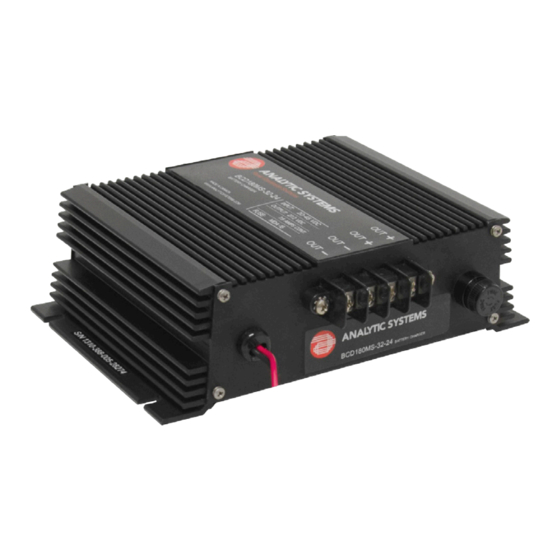

Introduction The BCD180 Series Battery Charger is a constant voltage float charger with a precision linear regulator output. It can be configured to run from a 32, 48 or 72 VDC power system to provide output voltages as specified in the specifications. -
Page 6: Installation
* 30 - 45 Vdc input range for 24Vdc output ** 7.6A for 24Vdc output * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way, Delta, BC V4G 1K5 p. 604.946.9981 f. 604.946.9983 tf. 800.668.3884 US/Canada Canada www.analyticsystems.com... -
Page 7: Power Connection
POWER CONNECTION A terminal strip is provided at one end of the unit for connecting the output leads. The input leads are as shown above. Connect the leads as follows: Output Positive to OUT + Output Positive to OUT + Output Negative to OUT - Output Negative to OUT - Ensure that the total average load connected does not exceed the continuous current rating of... - Page 8 This page intentionally left blank...
-
Page 9: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 10 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
