3.3.5 MOUNTING RACK OF RU
The following figure shows the dimension of the RU mounting rack, which is used for mounting the
RU to either a wall or on a pole. There are four holes in total catering for both mounting options:
•
Wall mounting with the masonry bolts supplied, which make use of the round holes.
•
Pole mounting with the clamp kit supplied, which make use of the square holes.
The mounting rack is pre-installed to the RU enclosure prior to shipment. Before commencing with
wall or pole mounting, user needs to separate the mounting rack from the RU enclosure.
Use ring spanner to unscrew M8x20mm hex socket bolts at 1, 2, 3, 4, 5, and 6 to separate the
mounting rack from the equipment.
RA-7800 QI
ENU Status : 1-0-1
INSTALLATION GUIDE FOR RA-7800
200
120
4- 15
4-13*13

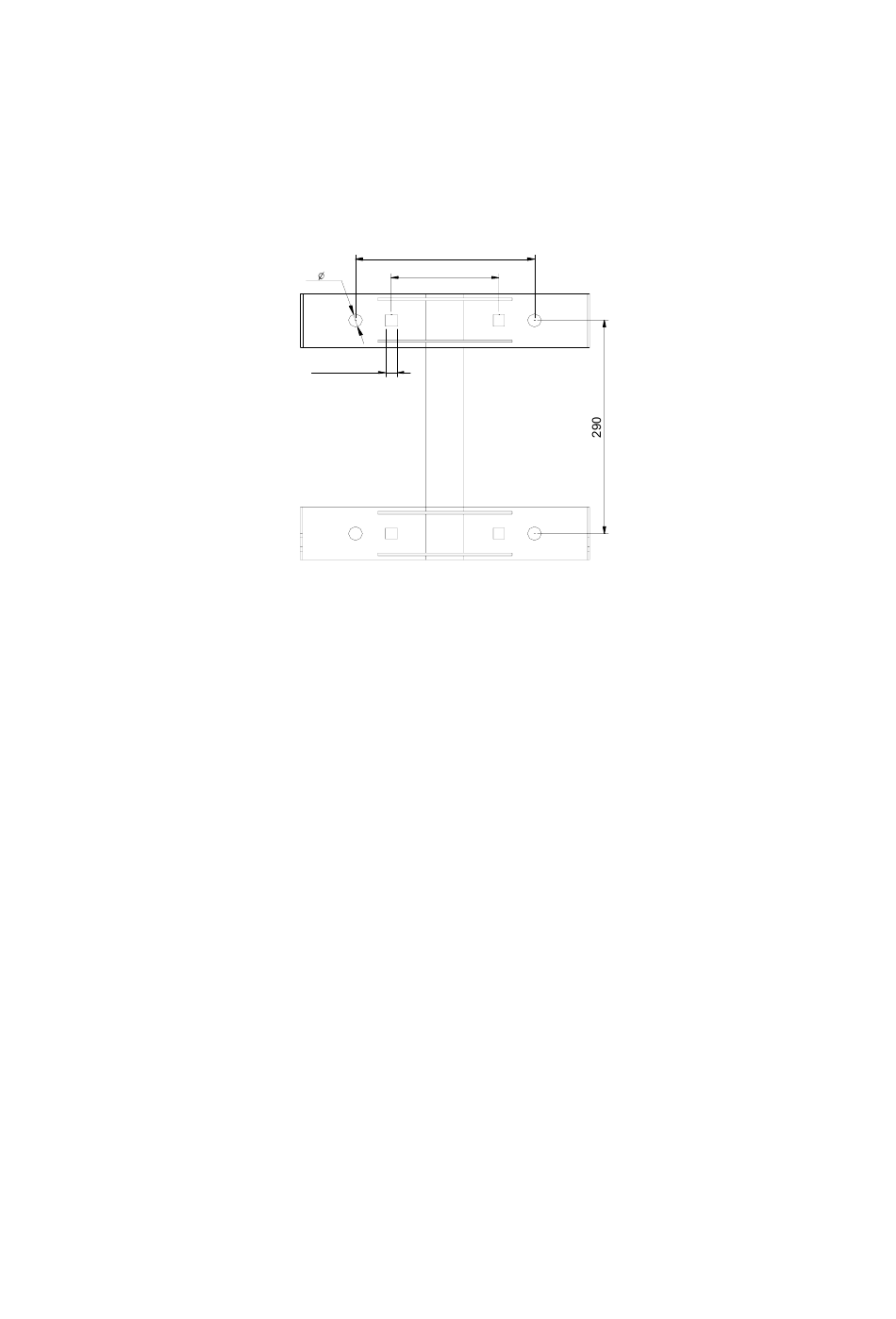

Fig 17: RU mounting rack dimension
