Fig 15: Ru Equipment Layout - Comba Telecom RA-7800 Installation Manual

Dual-band optical repeater
Hide thumbs
Table of Contents

Advertisement

INSTALLATION GUIDE FOR RA-7800

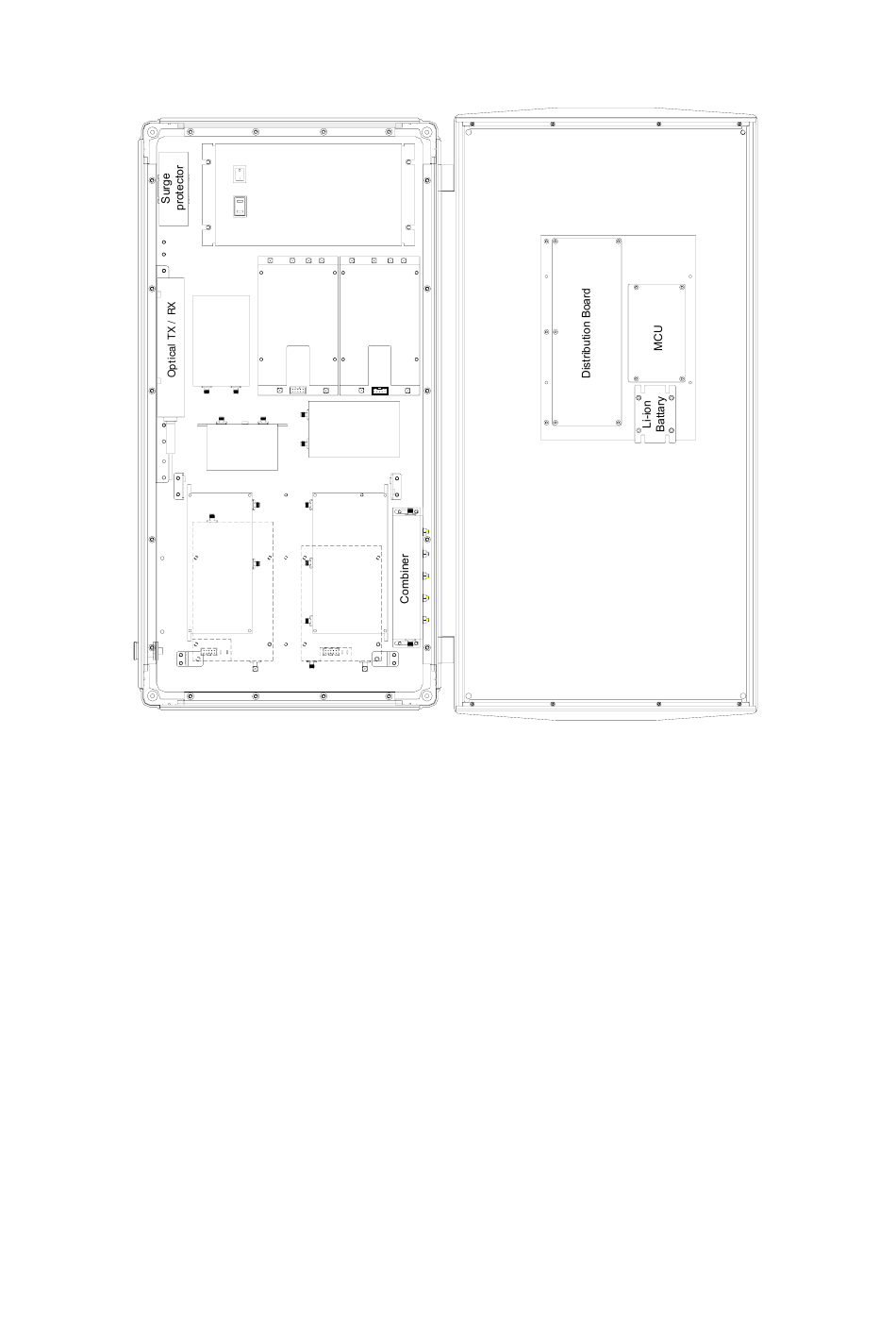

The internal layout for the RU is shown below:
PSU
Pre-amplifier
Pre-amplifier
UL Filter
DL Filter
LNA
DPX
DPX
PA
PA

Fig 15: RU equipment layout

RA-7800 QI
Copyright - refer to title page
Page 21
ENU Status : 1-0-1
