Multistate Events

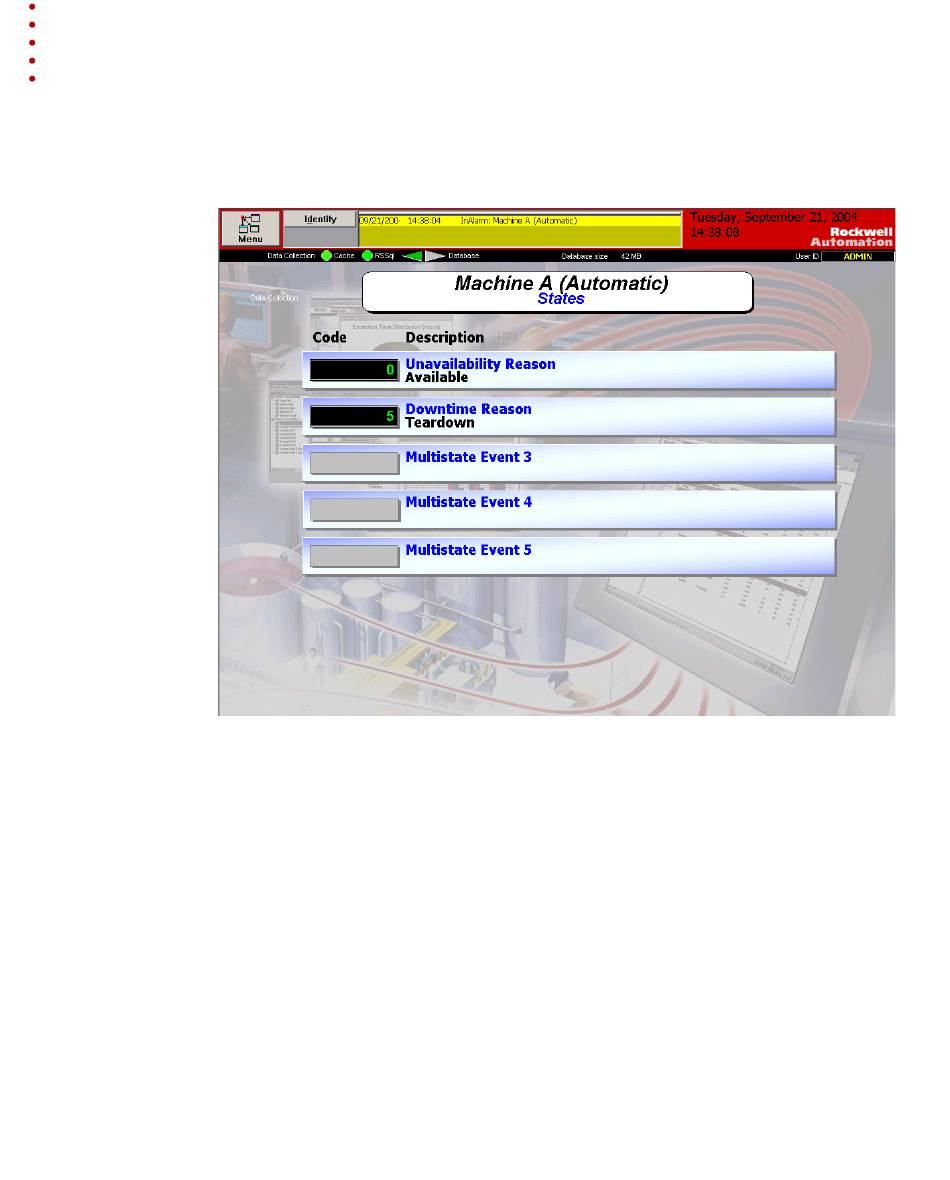

This display shows the current state of all multistate events configured for the workcell.
The current code value of each multistate event configured for the workcell is shown.
Multistate events that have not been configured simply have a solid gray background
displayed for the code value. To the right of the code value, the description of the
multistate event is shown in blue. Below the description of the multistate event, the
description associated with the current code value is shown in black.
