1. Cut an opening in the panel using the appropriate panel cutout dimensions provided
above.
2. Make sure the computer sealing gasket is properly positioned on the terminal. This
gasket forms a compression-type seal; do not use sealing compounds.
3. Place the computer in the panel cutout.

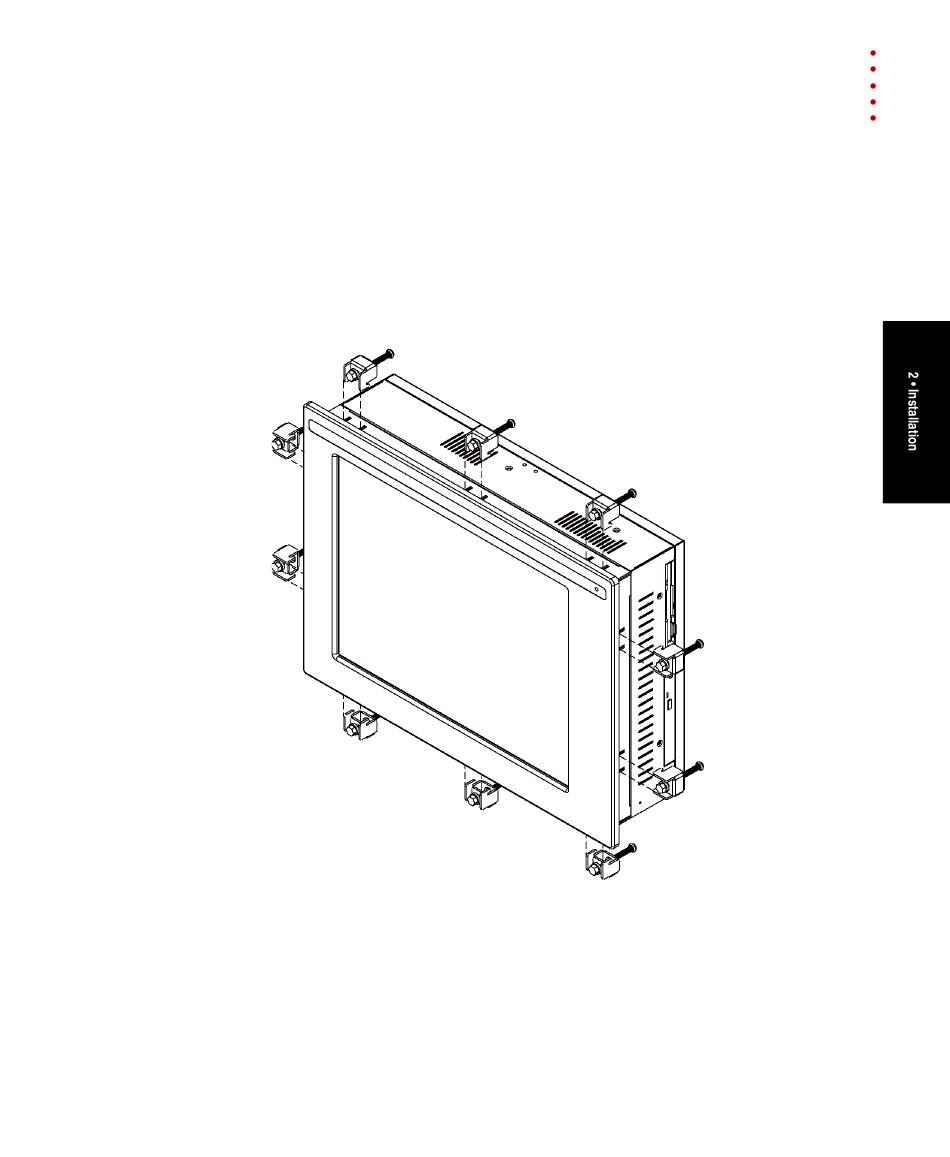

4. Install the mounting clips. The mounting clips slide into the slots on the top, bottom
and sides of the computer.
