Summary of Contents for Renac LV 48070 Plus

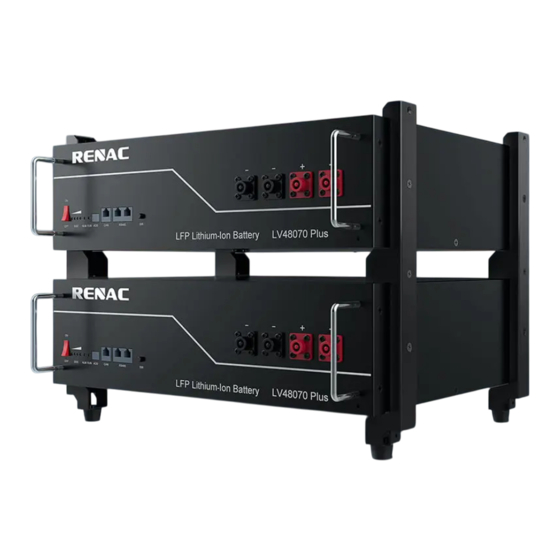

- Page 1 48070 Plus User Manual 3.58KWh LiFePO4 Lithium-ion Battery Product...
-
Page 2: Table Of Contents
About this manual Content This user manual introduces LV48070 Plus. It provides information about the main technical parameters, using and maintenance About this manual ......................................... 2 methods of the product, and precautions during usage. 1. Safety Precautions ................................4 1.1 Before connecting ......................................5 Please read this manual before you to install the battery and follow the instructions carefully during the installation process. -
Page 3: Safety Precautions
LV 48070 Plus User Manual LV 48070 Plus User Manual 5) The battery’s embedded BMS is designed for 48VDC, please DO NOT connect multiple batteries in serial connection; Attention 6) Battery system must be well grounded and the resistance must be less than 1Ω;... -
Page 4: Product Specifications
LV 48070 Plus User Manual LV 48070 Plus User Manual 2.2 Product Specifications Recommended Working Temperature 0~35℃ 2.2.1 Dimensions Storage Temperature 15~35℃ Depth of Discharge Overload protection integrated Short-circuit protection integrated Power self-consumption when running ≤2W Power self-consumption when standby 1W@≤48h ；0W@＞48h... -
Page 5: Built-In Bms Functions
LV 48070 Plus User Manual LV 48070 Plus User Manual 6) CAN port L1● L2● L3● L4● ● ● For external CAN communication (500KB/s) between the battery and the power control device. ALARM 7) RS485 port For internal communication between batteries, or between battery and the adapter board of battery cabinet (optional). - Page 6 LV 48070 Plus User Manual LV 48070 Plus User Manual 3.2 Installation tools · The distance from heat source is more than 2 meters · The distance from air outlet of inverter is more than 0.5 meters. The following tools are required to install the battery：...
- Page 7 LV 48070 Plus User Manual LV 48070 Plus User Manual 4.3 Power on 5.2 Basic steps: Double check all the power cables, communication cables, and DIP switches to make sure proper connections / settings. 1) The battery cannot be powered on: If the battery’s power switch has been turned on but no LED indicator is on or flashing, and the external power supply voltage...
- Page 8 LV 48070 Plus User Manual · Ingestion: Induce vomiting, and seek for medical attention. 2) Fire Ⅰ When the fire around the battery system, only dry powder extinguisher can be used to extinguish the fire within the fire range. Keep the battery pack as far away from the fire as possible.
- Page 9 SMART ENERGY FOR BETTER LIFE 422-10005-00...
