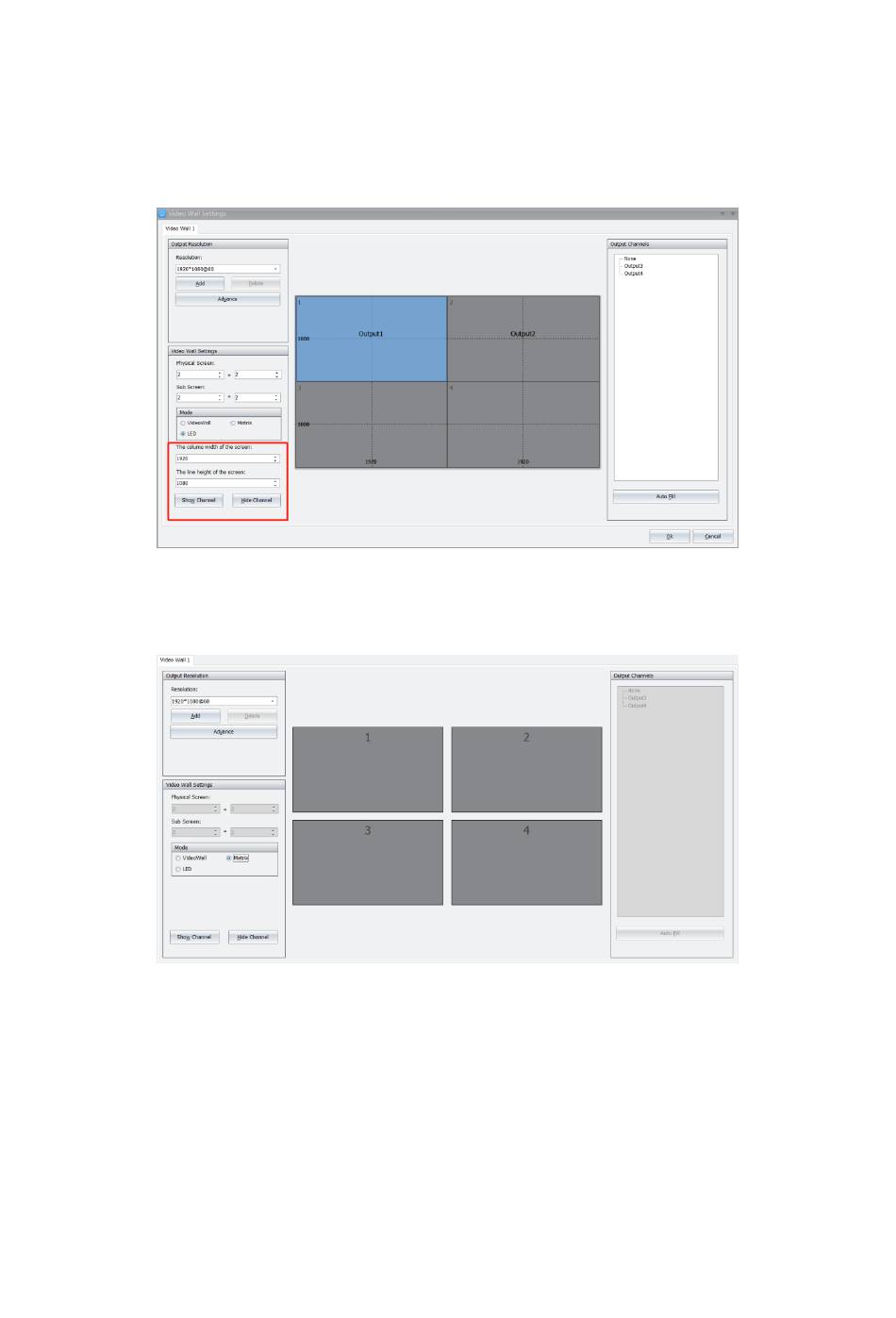

As LED display areas, which are powered by sending card, are not same, need to apply LED Mode
to configure.
Select one screen and set up Row height and Column Width
1.
Row height of screen indicates the row height where screen located in pixel.
2.
Column width of screen indicates the column width where screen located in pixel.
3.2.4.3.
Matrix Mode
If you want to activate matrix functions, need to select Matrix Mode. Controller will auto detect
all available output channel. Please refer 3.7 Matrix Switching for more details.
3.3. Video Wall Layout
After video wall created, user can create new windows and manage window display by resizing,
roaming and locking.
3.3.1. Create Windows
There are four methods to create new windows.
1.
Arbitrary creating. Click to select one source in the inputs list, then press left key and
drag to desired position to release.
12
Operation
