Output Channel Setting - DigiBird VWC2-ROC User Manual

Parameter

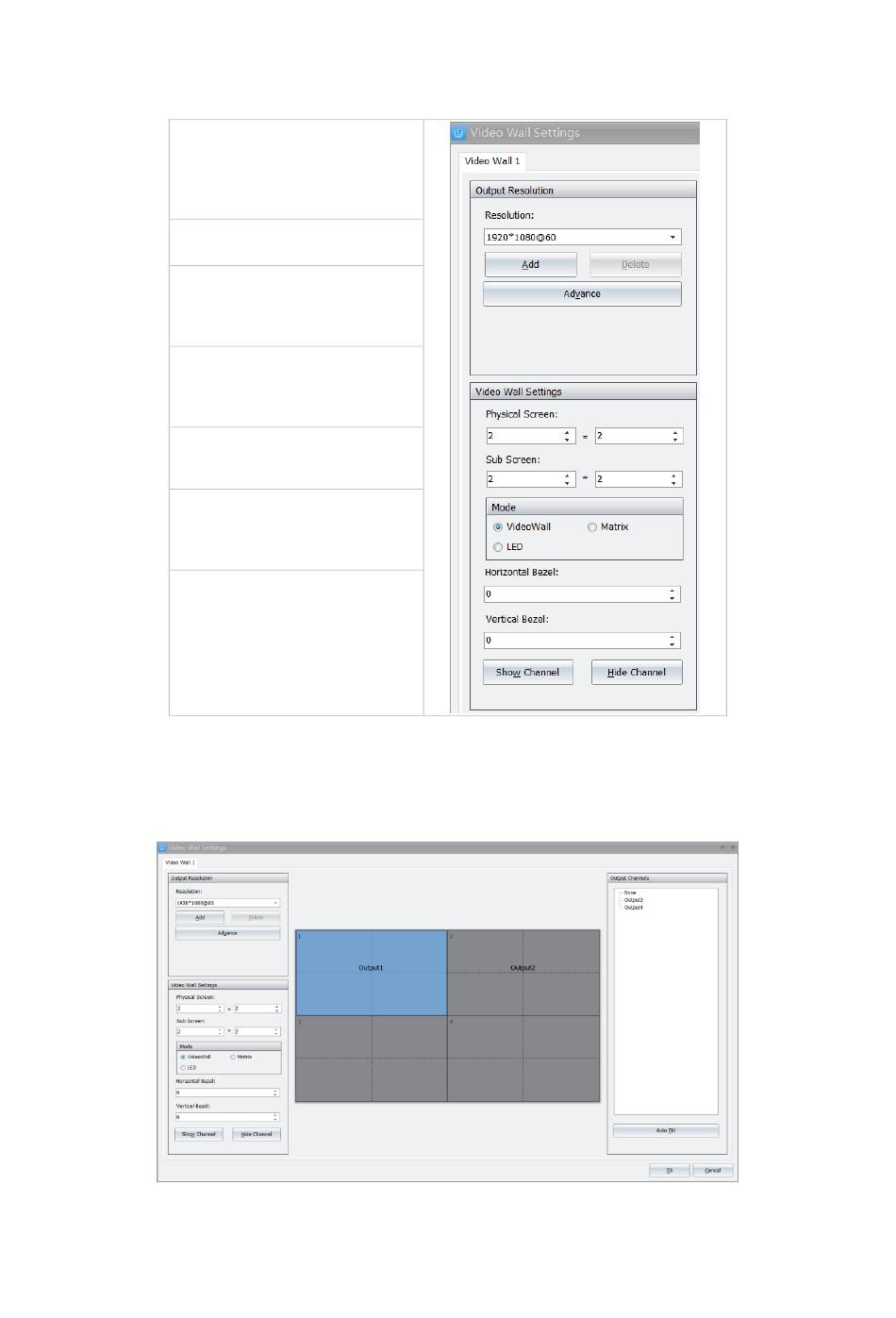

Below table is description of parameter.
Screen Resolution
Select desired
Support customized resolution. Refer
3.2.4 Screen Resolution Setting for more
details.
Video Wall
Input video wall Rows and Columns
Sub Screen
Virtual sub screen of physical screen to
help locate window position. Default is
2x 2.
Mode
With options of LCD Wall, Matrix, LED
wall. Refer 3.2.5 Video Wall Mode
Setting.
Bezel
Under LCD mode, can input bezel
information as compensation.
Show Channel
Display output channel number on
screen, to
relationship
Hide
Disable channel number display

3.2.2. Output Channel Setting

When configure video wall, output channel will automatically map to connected screen from left
to right and from top to bottom.
•
For irregular video wall, if the screen is not installed physically. Can click that screen from
software, right click and apply No Output.
screen resolution.
indicate connection
