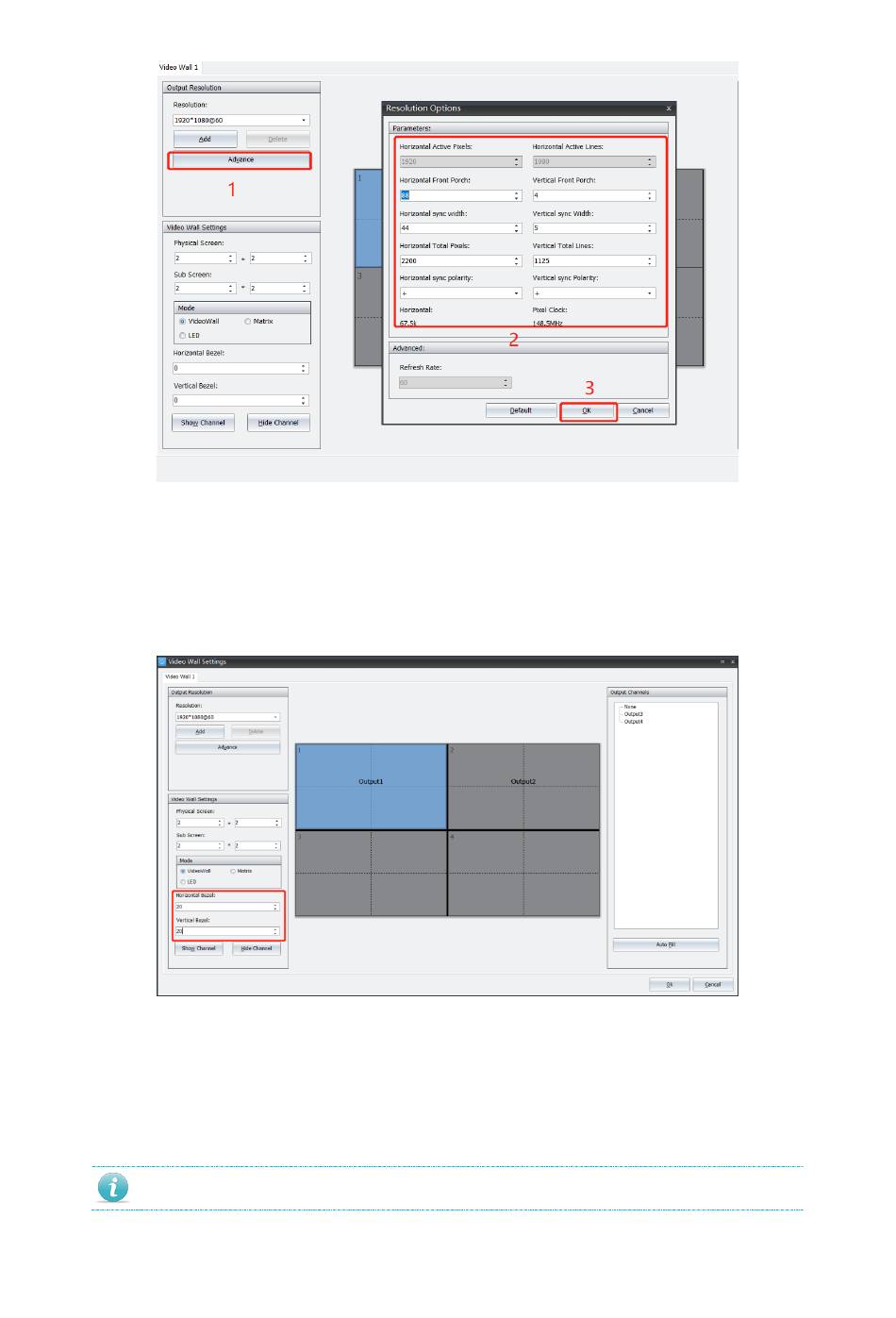

3.2.4. Video Wall Mode Setting
3.2.4.1.
LCD Mode
For LCD and DLP video wall, please select LCD wall mode. Under this mode, you can input bezel
information by pixel as bezel compensation to ensure the whole image is unified to avoid image
tearing and distortion.
1.
Horizontal bezel indicates the space between 2x adjacent screens. The space
includes right bezel of left screen and left bezel of right screen and measured in pixels.
2.
Vertical bezel indicates the space between 2x adjacent screens. The space includes
bottom bezel of top screen and top bezel of bottom screen and measured in pixels.
Pixel is calculated by physical width of horizontal bezel divides monitor size, then multiple monitor
resolution.
3.2.4.2.
LED Mode
11
Operation
