Kogan KAMN27QFSA User Manual

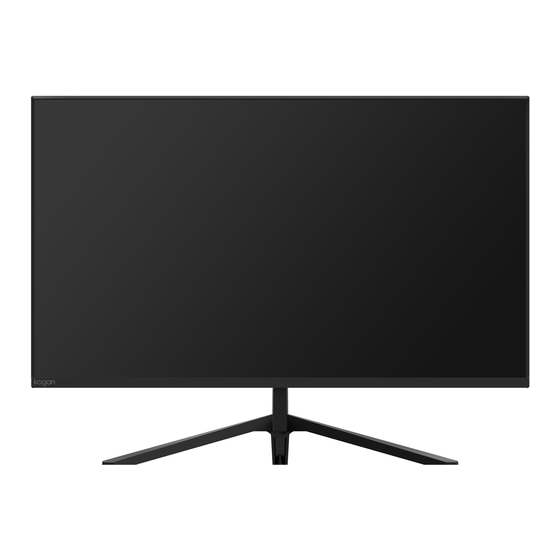

27" qhd ips freesync 75hz frameless monitor (2560 x 1440)
Hide thumbs

Advertisement

Quick Links

Download this manual
27" QHD IPS FREESYNC 75HZ
FRAMELESS MONITOR
(2560 x 1440)
KAMN27QFSA

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAMN27QFSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KAMN27QFSA

Summary of Contents for Kogan KAMN27QFSA

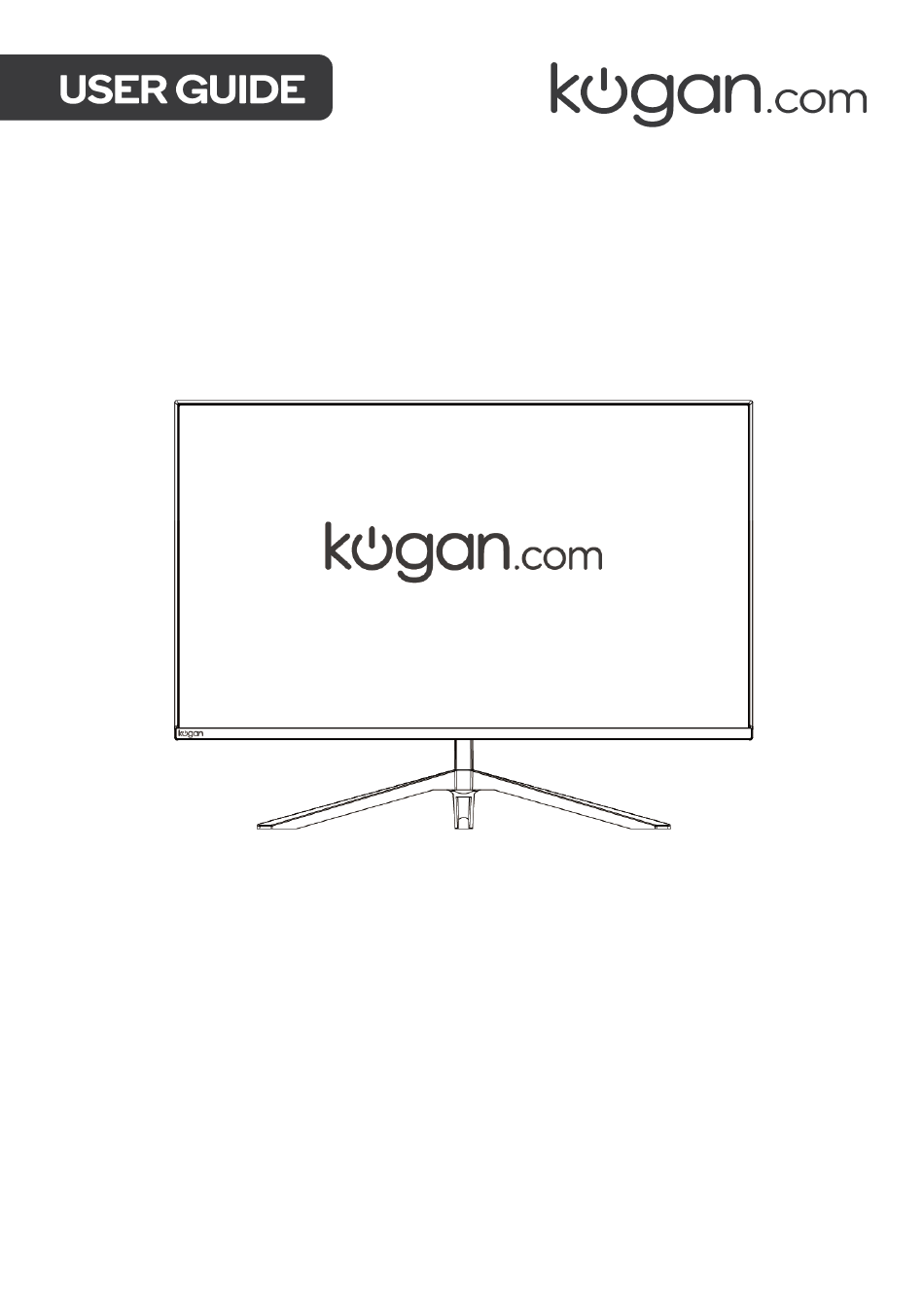

  • Page 1 27" QHD IPS FREESYNC 75HZ FRAMELESS MONITOR (2560 x 1440) KAMN27QFSA...

  • Page 2: Safety And Warnings

    SAFETY & WARNINGS • Read all instructions before using the monitor and retain for future reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the main monitor body. • To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth.
  • Page 3 COMPONENTS Stand Arm Monitor Stand base screw tand base VESA screws (x4)) (M6 x 16mm) Display port cable Power cable User guide...
  • Page 4 OVERVIEW Power button Directional buttons Audio in VGA connector DP connector HDMI connector DVI connector Power connector...
  • Page 5 ASSEMBLY WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. Carefully remove the monitor, stand Attach the stand base to the stand arm and stand base from the box. arm using the provided M6 screw. Open Insert the stand arm into the rear of Lift the monitor up straight and...
  • Page 6 VESA MOUNT MOUNT VESA mounting pattern 100 x 100mm, screw size M4. Note: VESA mount or mounting accessories are NOT included. Open the box, remove the monitor keeping the protection foam attached and gently place it on a desktop or table. Remove the foam covering the rear of the monitor.
  • Page 7 CONNECTIVITY Power cable Connect the included power cable to the monitor power port, then connect the other end to a power outlet. Audio In Connect the audio cable between the socket on the rear of the monitor (Audio In) and your computer audio outlet.
  • Page 8 DisplayPort Use the included DisplayPort cable to connect the monitor to your computer. DP cable (included) HDMI Use a HDMI cable to connect the monitor to your computer. HDMI cable (not included)
  • Page 9 Use a VGA cable to connect the monitor to your computer. VGA cable (not included) Use a DVI cable to connect the monitor to your computer. DVI cable (not included)

  • Page 10: Operation

    OPERATION Connect the monitor to the input device via HDMI/DisplayPort/DVI or VGA. Connect the power cable to the monitor, then connect the other end directly to a power socket. Use the power button to turn the monitor on. Monitor Controls Power Button: •...

  • Page 11: Display Settings

    FreeSync • In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date. • After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu.
  • Page 12 Refer to the following pages for a detailed list of the OSD menu functions. Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast Picture STANDARD/PHOTO /GAME/MOVIE Preset colour modes /FPS/RTS/USER 6500K Select colour temperature mode or Colour 9300K allow manual colour configuration...
  • Page 13 Set how long the OSD remains open OSD Time Out 0-100 after last input Auto Select / DP / Select input source or allow manual Input selection HDMI /VGA/DVI Enable or disable monitor speaker Mute ON/ OFF Setup output Volume 0-100 Adjust monitor speaker volume Reset...
  • Page 14 DISPLAY MODES & GAMEPLUS Display modes Press the Power button to the left to switch between the preset display modes. These modes include: Standard, Text, Movie, Game, FPS and RTS. These modes are designed to optimise settings according to your activity. Standard mode is suitable for most activities. Gameplus Press the Power button downwards to switch Gameplus modes.

  • Page 15: Specifications

    SPECIFICATIONS Screen size 27" Aspect ratio 16:9 Brightness 300cd/m (typical) Panel Resolution 2560 x 1440 Refresh rate 75Hz Response time 7ms with Overdrive enabled (14ms typical) Viewing angle ≥178°(H) / 178°(V) Contrast ratio 1000:1 VESA mounting 100 x 100mm Colours 1.07B Signal input HDMI 1.4 x 1, DP 1.2 x 1, VGA x 1, DVI x 1...
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
