Make Welds

Fillet Welds
Repair Tip, Prototyping Tip
The Ribbon weld tip is used to make a seam weld on thermoplastic materials
such as belting and thin sheets. Because this welding tip does not weld down to
the root side, it should not be used for regular butt welds.

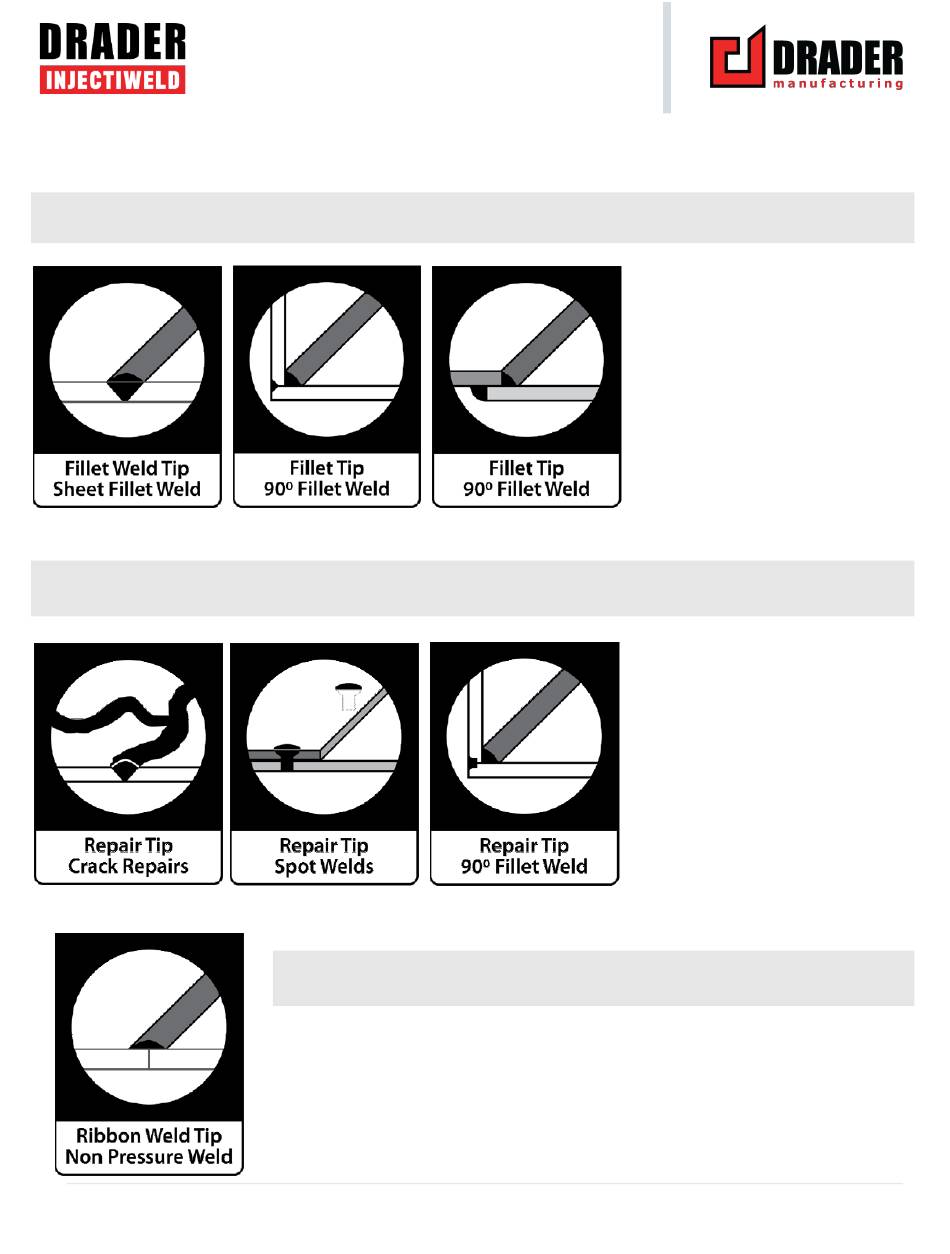

Fillet tips are used mainly for fillet
welds [90º] and butt welds. The
style of those tips allows one to
weld from inside corners out and
be able to seal the corners without
changing to another tip style. Fillet
tips can also be used for crack
repairs, as long as the crack is
somewhat straight. The longer
preheat section allows faster
welding speed than welding
cracks with the conical tip.
Repair tips are used for crack
repairs, filling small holes, spot
welding, for reaching tight areas,
and for prototyping. Because of
their conical shape, the repair tip
and prototyping tip offer similar
types of welds. Choose the size
that best suits your application.
Ribbon Weld Tip
